CLM Pro Carbon Fuselage set #102 suitable for wingspan up to 2 meters / 79".

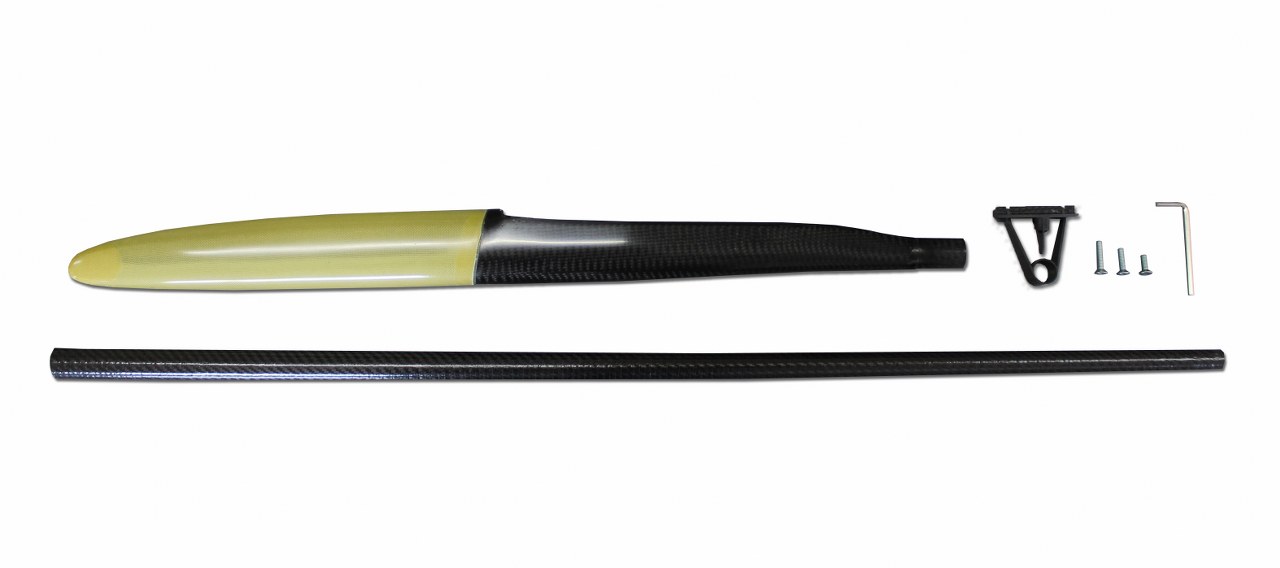

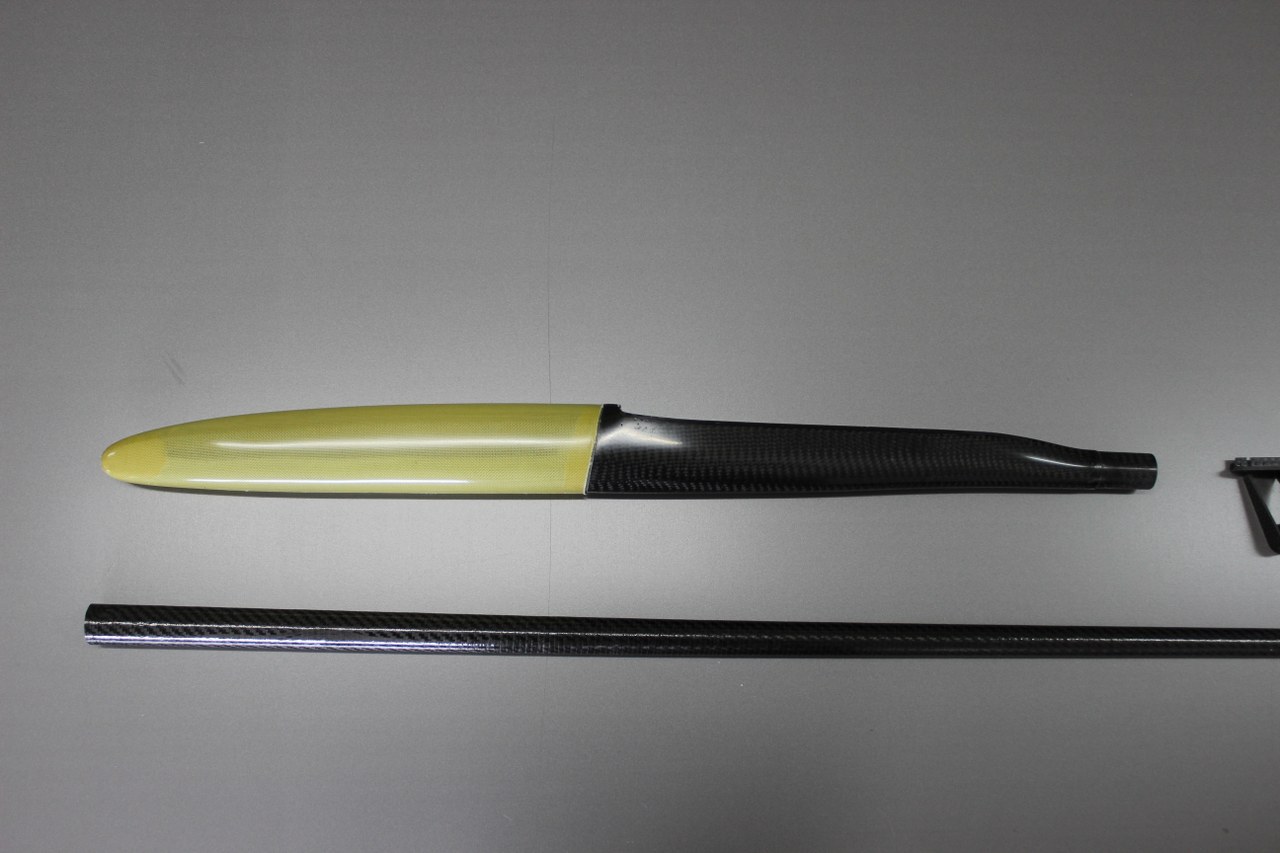

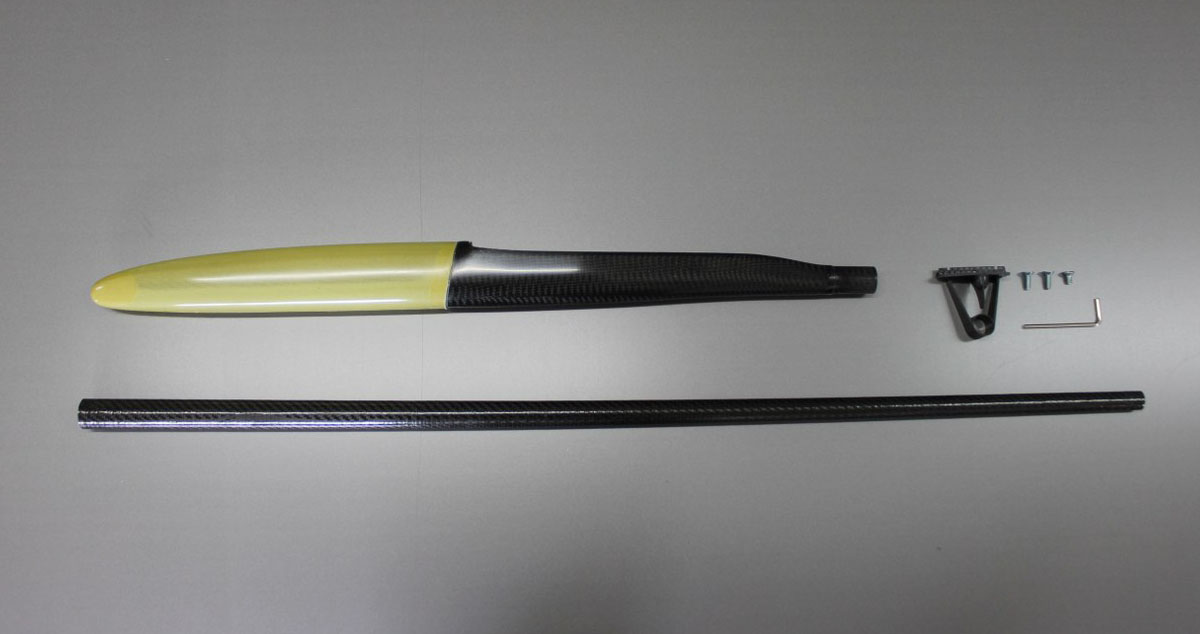

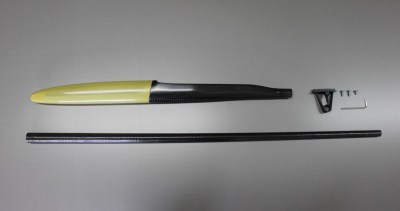

Set contains 1K fine carbon pod, carbon tailboom and V-mount. Ideal for beginners in DLG / F3K handlaunch.
Set weights only 70 grams / 2.46 oz.

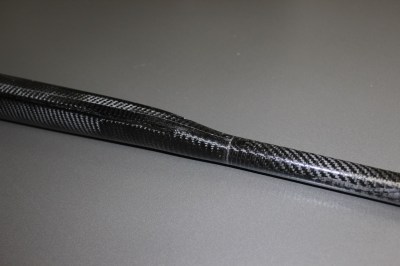

Carbon boom is 700 mm (27.55") long and weights 22g (0.07 oz). Wide end: 19 mm (0.74"), narrow end: 12.5 mm (0.49")
Carbon tail boom is made from several carbon types. Materials are strategically positioned so the boom is of its maximum strength and minimum weight.

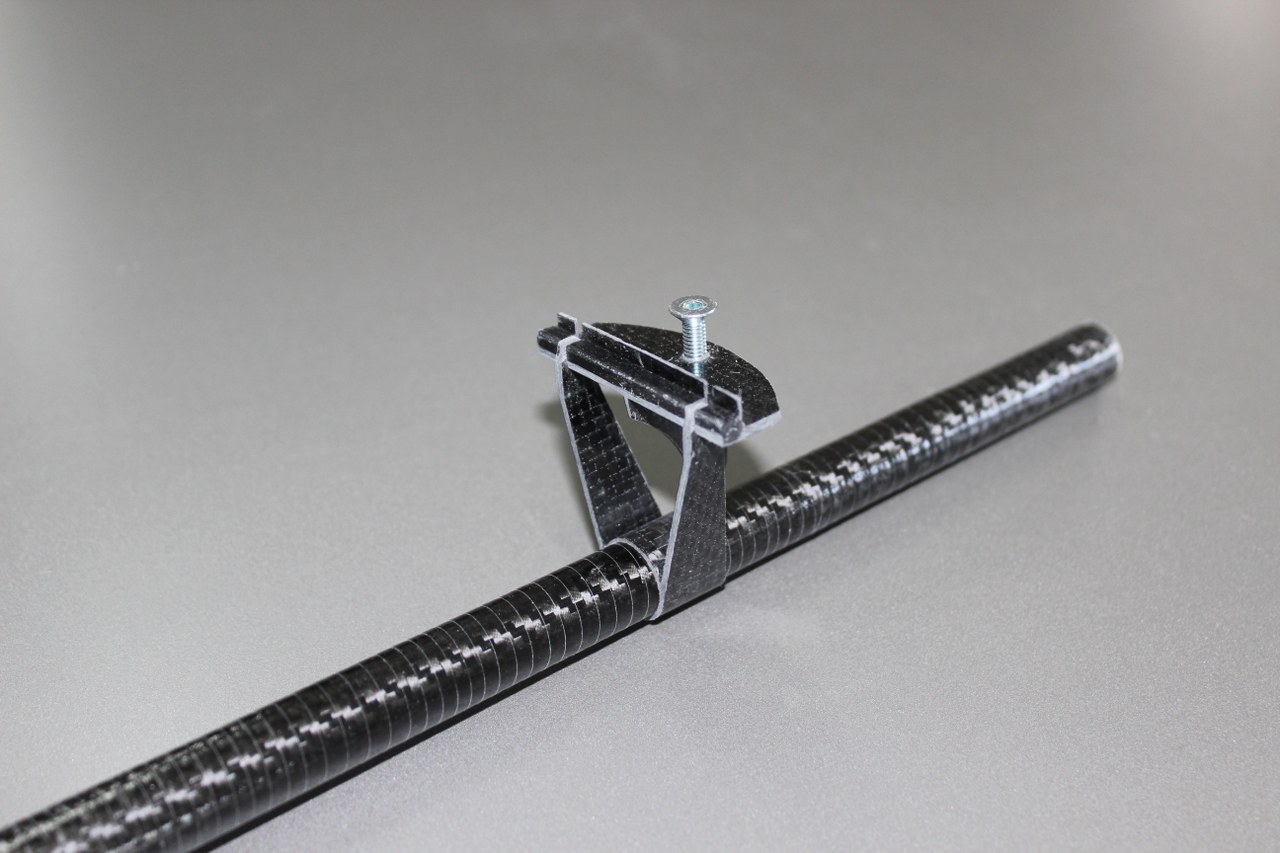

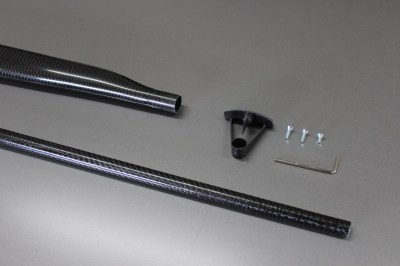

Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.
Pod:
Pod is completely made of fine 1K carbon material, it is very light and strong.
Pod is reinforced with carbon on strategic spots which gives it more strength.

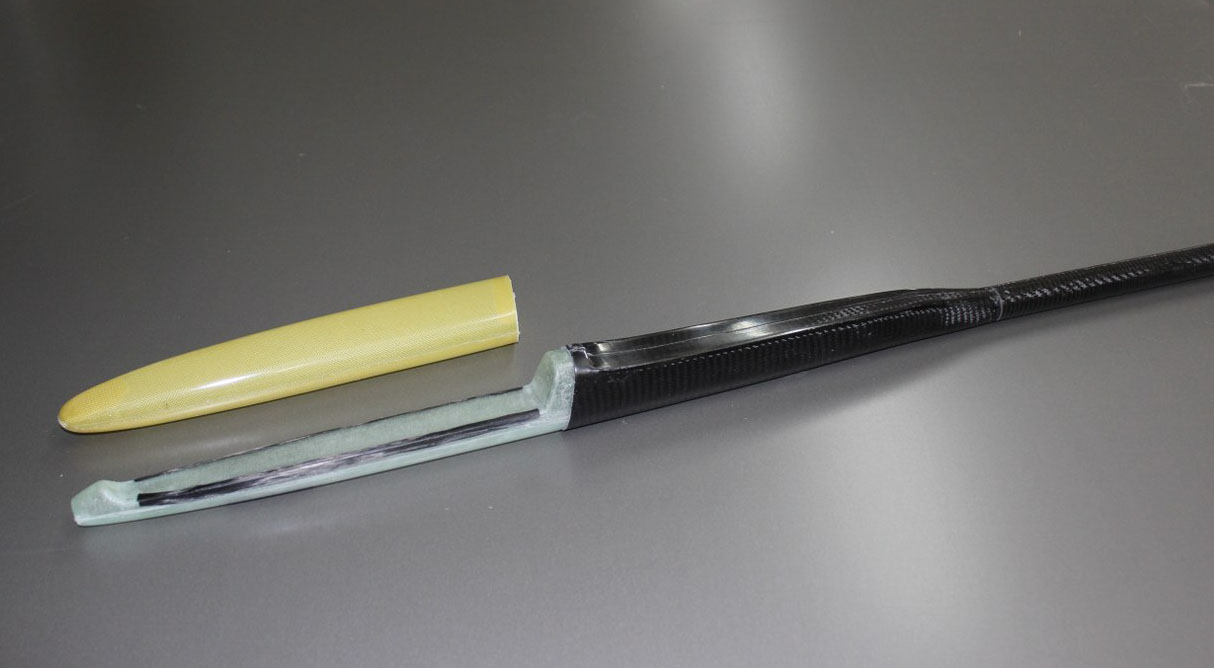

Nosecone is from kevlar / aramid. The nose and front part of the pod are reinforced so it can be landed roughly.
It is made for wingspan up to 2 meters (78.7")
Fully produced from composites, so it is light, solid, non-deformable, can withstand strong impacts.
Carbon Pod Specifications |
|
Length |
500 mm / 19.68" |
Wing depth |
180 mm / 7.06" |
Profile |
AG series, S 3021, HN 1033 |
Boom diameter |
19 mm ID / 0.75" |
Dihedral angle |
0° |
Weight |
40 g / 1.41 oz |
Carbon Tailboom |
|
Length |
700 mm / 27.55" |
Wide End |
19 mm ID / 0.75" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
22 g / 0.77 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
