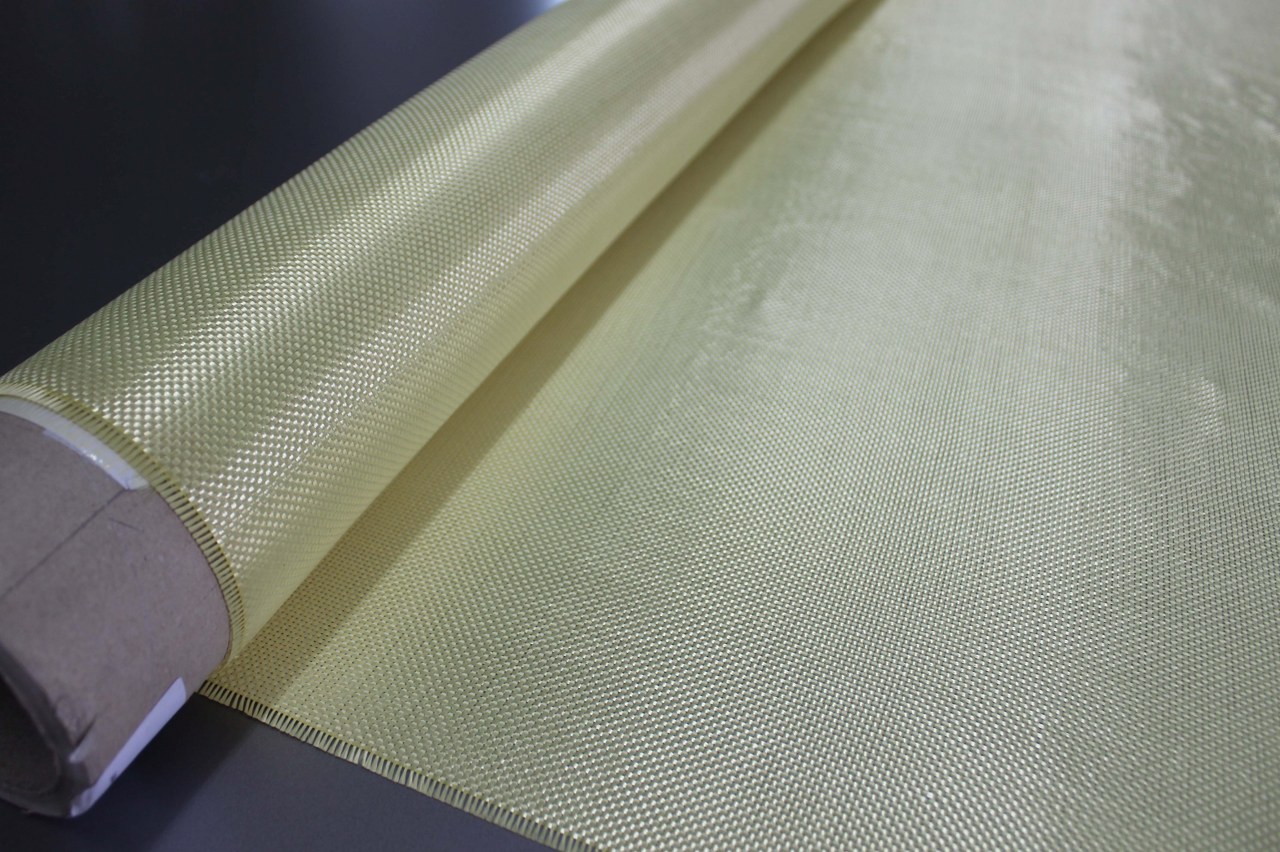

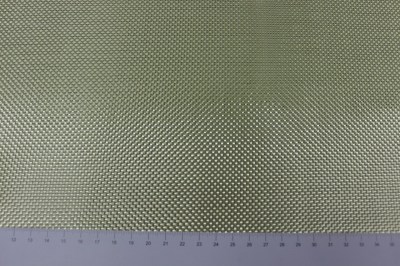

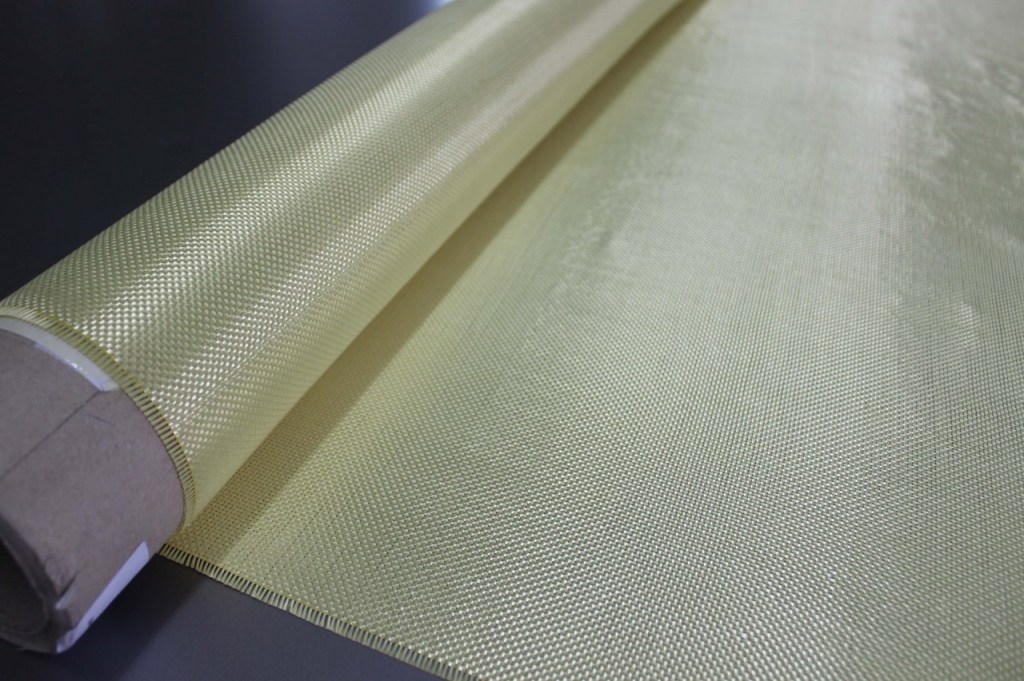

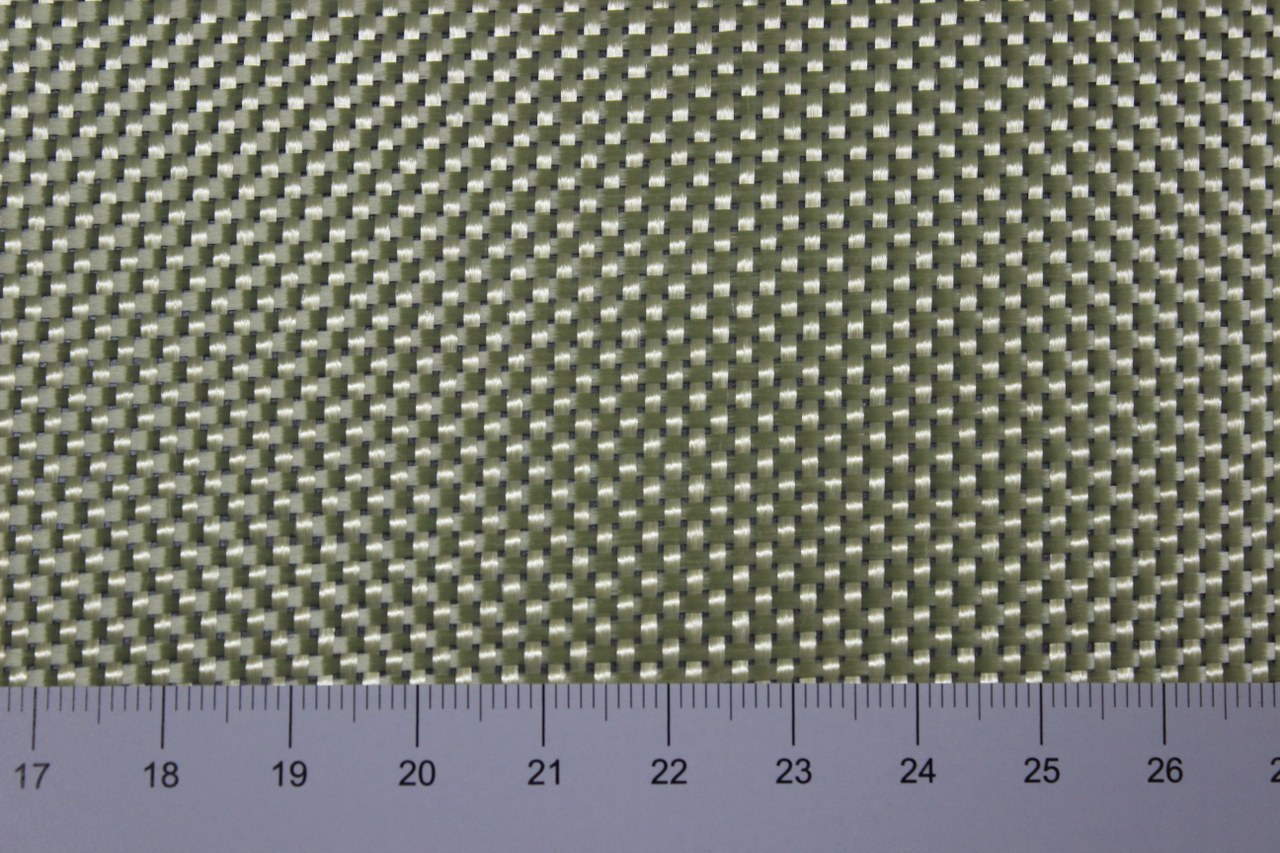

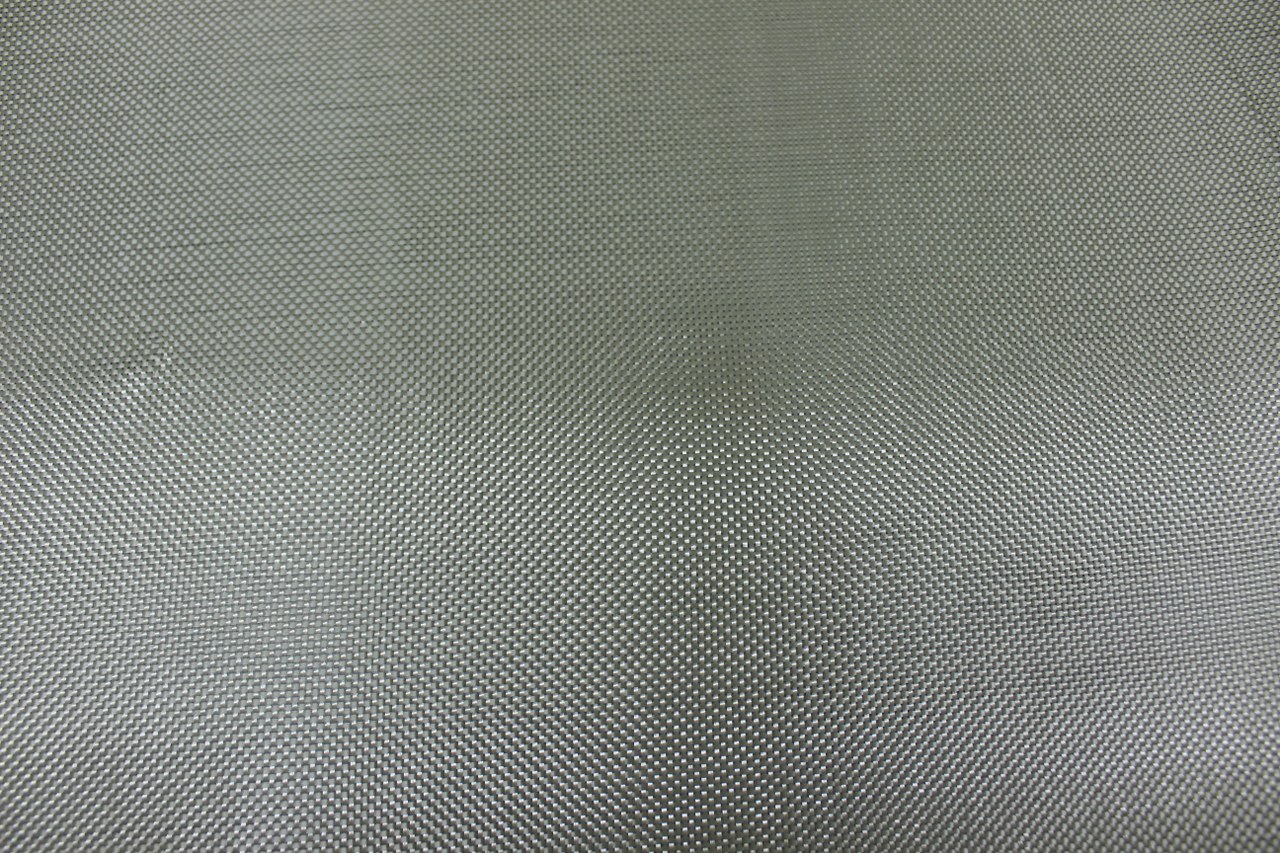

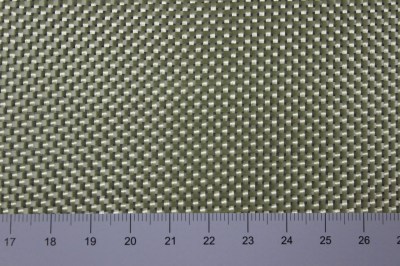

High quality fine kevlar - aramid fabric 140 g/m², 4.1 oz/yd² – plain cloth - sample A4. The material is thick, opaque and compact in the middle.
It is only an sample of the material, A4 20x30cm / 11.81“x7.87“
Application:
Laminates and sandwich components in aircraft and model construction.
For ultralight components: Modelling, motor sports, sport equipment, ship construction.
Material as per aircraft standards.
If you a interested you can also get sheet by your desired dimensions.
|
Specification: |
||
|
|
Nominal |
Tolerance: |
|
Fiber: |
Kevlar-aramid 140 g/m², 4.1 oz/yd² |
|
|
Fibre description |
Kevlar® 49 1580, Style 284 |
|
|
Weight: |
140 g/sqm / 4.1 oz/yd² |
± 3% |
|
Thickness: |
0.20 mm |
± 2% |
|
Weave: |
plain |
|
|
Width: |
100 cm |
|
|
Tensile strength (MPa) |
3600 |
|
|
Tensile modulus (GPa): |
112 |
|
|
Elongation at break (%): |
2.4 |
|
|
Warp – Weft ratio: |
||
|
|
Warp |
Weft |
|
Fibre description: |
Kevlar 49 1580 dtex |
Kevlar 49 1580 dtex |
|
Thread count (ends/cm) |
5.1 |
5.1 |
|
Weight distribution (%) |
69 |
69 |
|
Total weight rate (%) |
50 |
50 |
|
Yarn number |
150 tex |
150 tex |
