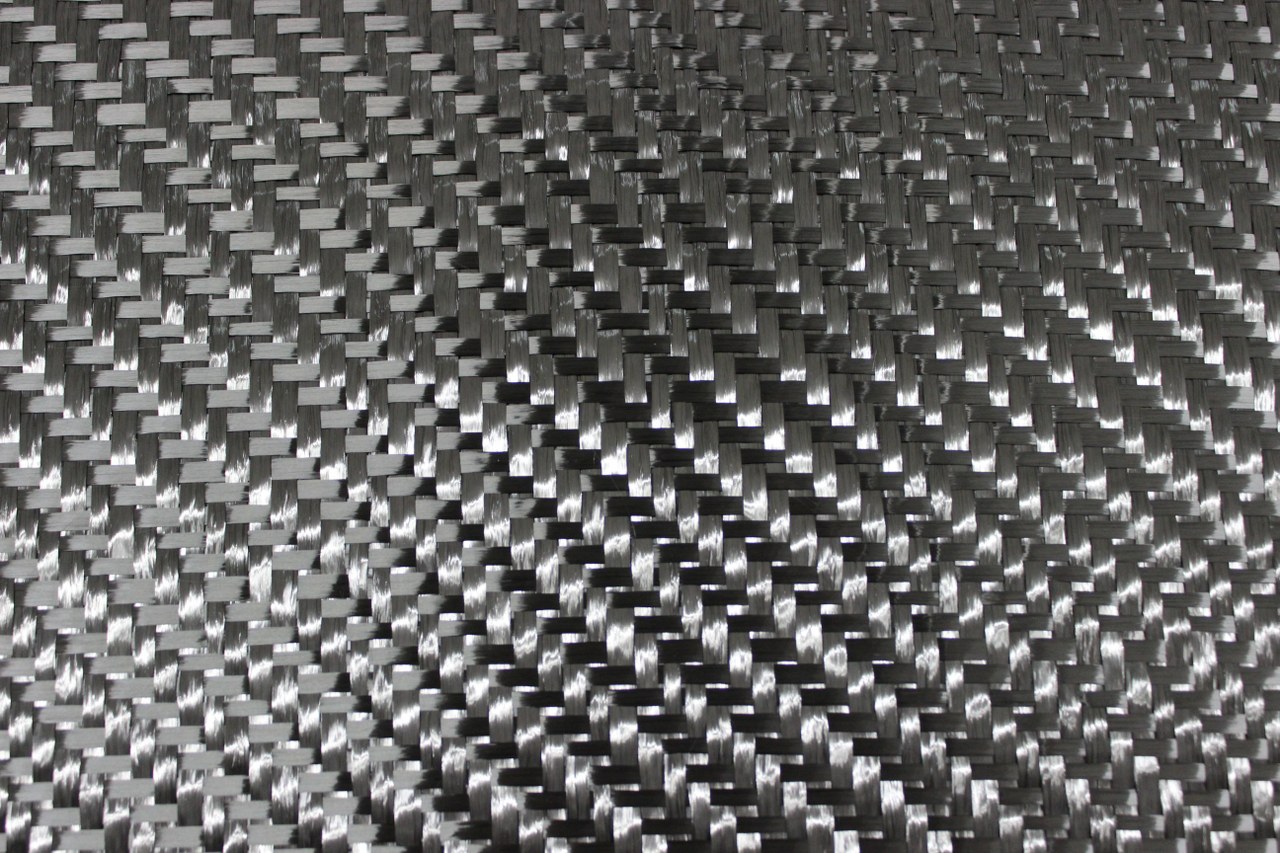

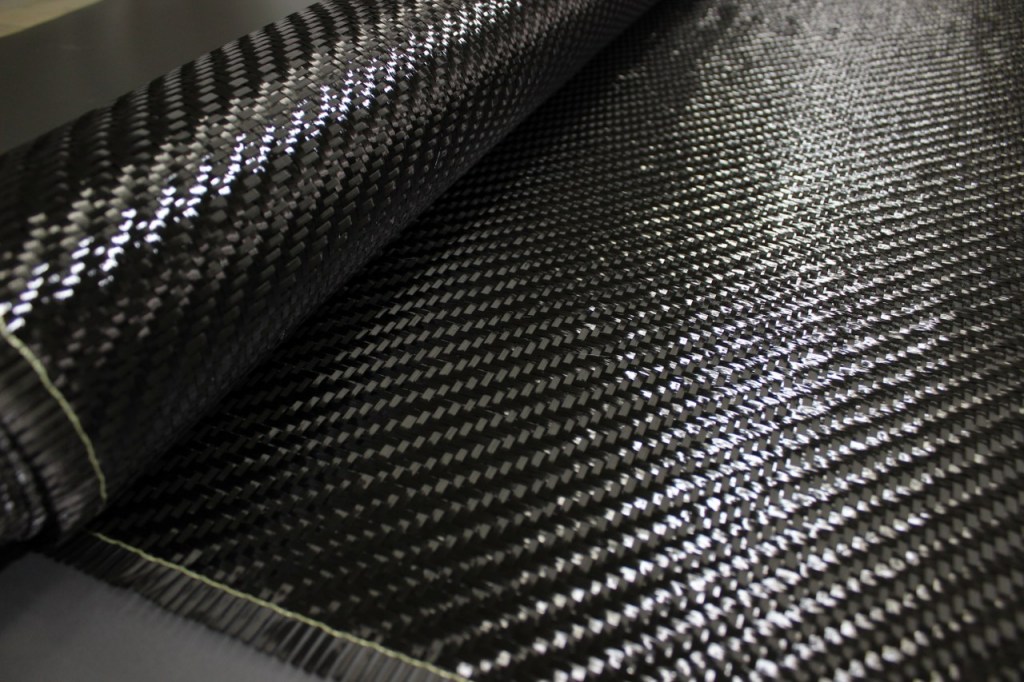

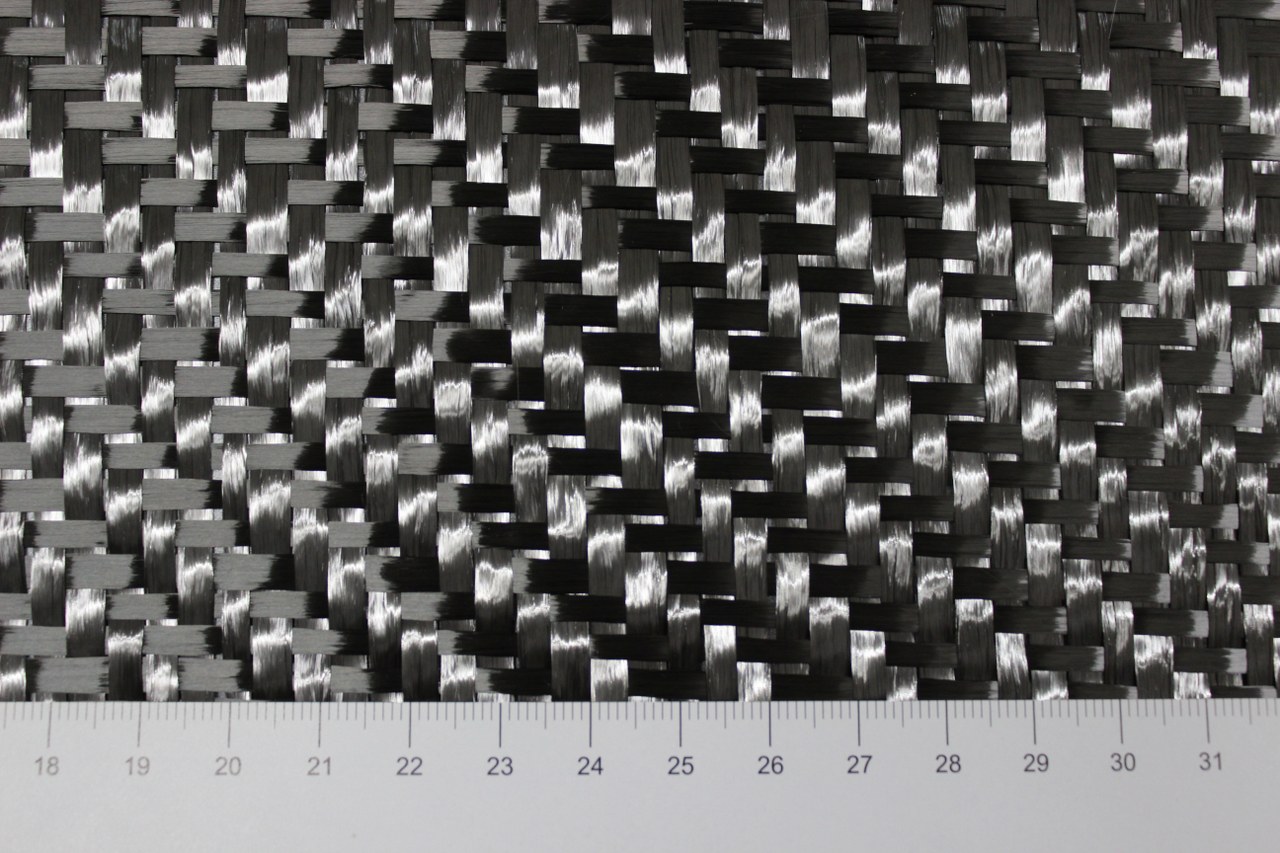

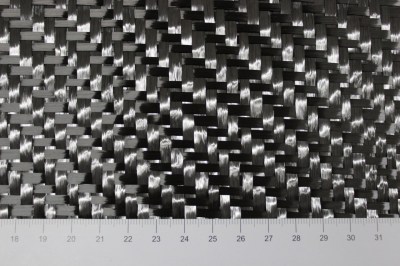

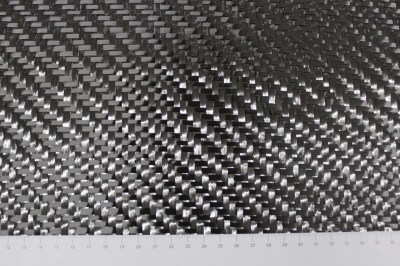

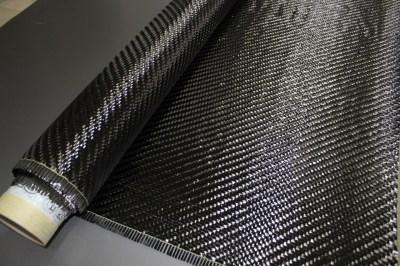

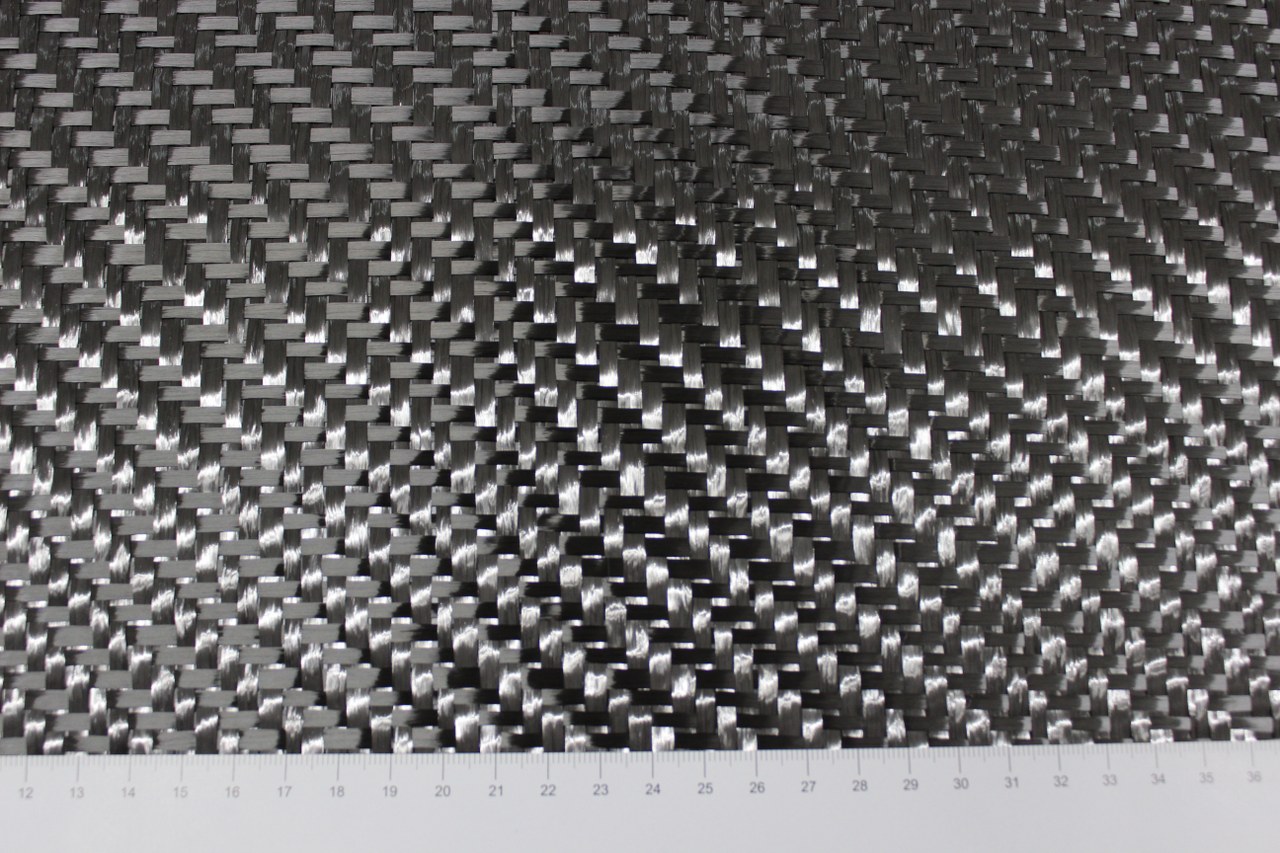

High quality Carbon fabric 416 g/m², 12.2 oz/yd² – 12K twill 2x2 cloth - sample A4. The material is thick, opaque and compact in the middle. Fantastic designer look.
It is only an sample of the material, A4 20x30cm / 11.81“x7.87“
This is a unique looking cloth used in all aspects of motor sport and marine applications. Compatible with Epoxy and Polyester Resins. This cloth has good drape-ability, is easy to handle and is used in Vacuum Bag techniques, Resin Infusion and Hand Lay – up.
Application:
Modelling, motor sports, sport equipment, ship construction. Rigidity and extreme resistance to pressure due to carbon fibre. Impact strength, tensile strength.
Material as per aircraft standards.
If you a interested you can also get sheet by your desired dimensions.
|
Specification: |
||
|
|
Nominal |
Tolerance: |
|
Fiber: |
Carbon fabric 416 g/m², 12.2 oz/yd² |
|
|
Fibre description |
12K HS carbon fiber |
|
|
Weight: |
416 g/sqm || 12.2 oz/yd² |
± 3% |
|
Thickness: |
0.40 mm |
± 0.03 mm |
|
Weave: |
Twill 2x2 |
|
|
Width: |
100 cm / 120 cm |
|
|
Tensile strength (MPa): |
4900 |
|
|
Tensile modulus (GPa): |
240 |
|
|
Elongation at break (%): |
2.0 |
|
|
Warp – Weft ratio: |
||
|
|
Warp |
Weft |
|
Fibre description: |
12K HS carbon fiber |
12K HS carbon fiber |
|
Thread count (ends/cm): |
2.6 |
2.6 |
|
Weight distribution (g/mq): |
208 |
208 |
|
Weight distribution (%): |
50 |
50 |
|
Yarn number: |
800 tex |
800 tex |
