Dynanotex Carbon fabric 160 g/m² - spread tow - sample

CLM-Pro-Dynanotex-spread-tow-carbon-fabric-160-1

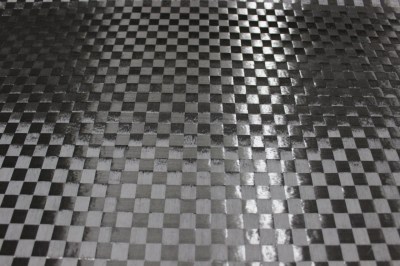

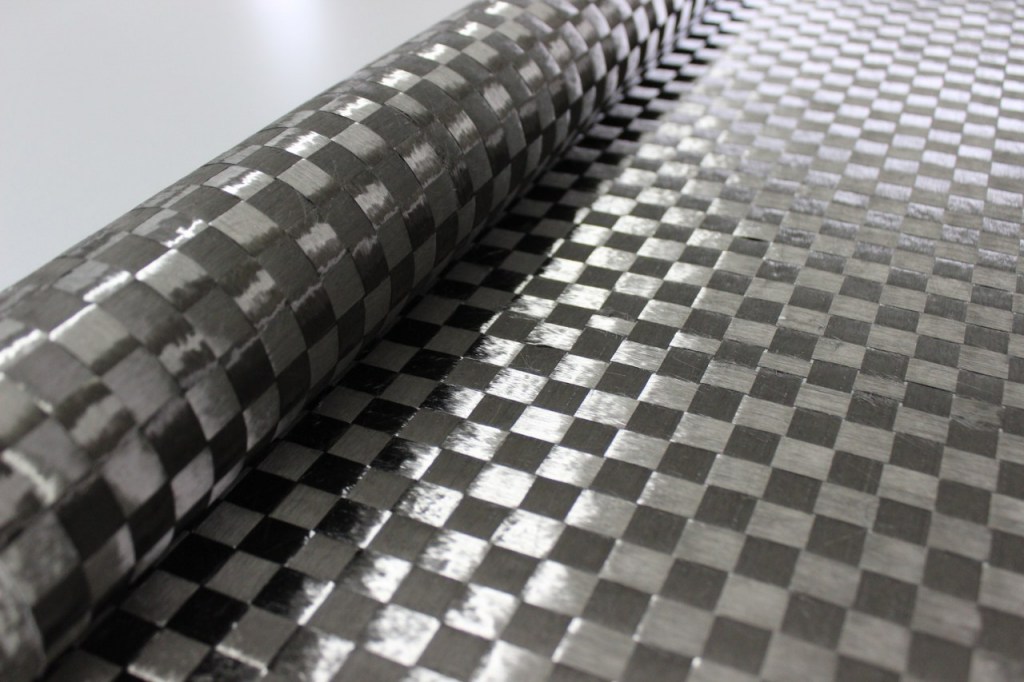

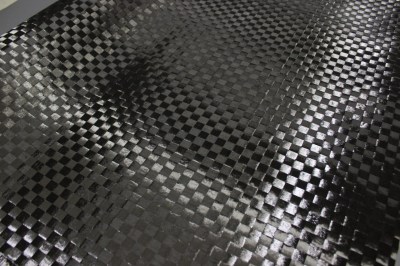

Dynanotex Carbon fabric 160 g/m² - spread tow - sample

RatingNot Rated Yet
Base price $12.00
Base price with tax
Sales price $9.00
Sales price without tax $9.00
Discount $-3.00
Description

High quality Dynanotex UD Carbon fabric 160 g/m², 4.7 oz/yd²  – spread tow - sample size A4

High quality Dynanotex Carbon fabric 160 g/m², 4.7 oz/yd²  – spread tow - sample size A4

It is only an sample of the material, A4 20x30cm / 11.81“x7.87“

What is Dynanotex?

Dynanotex is a tow spreading system for DRY unidirectional carbon fibre reinforcements.

Dynanotex concept based in two separate layers of dry unidirectional carbon fibre bonded together by a resin compatible adhesive.

 Main Features:

No bonding elements on reinforcement surfaces

Perfect fibre alignment

Thickness reduction (35% less than traditional unidirectional)

Low weight reinforcements (70 to 400 g\m²) from heavy tow fibres (15K- 24K- 50K)

Advantages:

- Possibility to use 100%of mechanical performance of fibres

- Improvement of interlaminar shear strength due to perfect bonding of fibre layers.

- Reduced resin accumulation due a very good distribution of fibres and very limited “open spaces“ between microfibres.

- Faster fibre’s impregnation due to capillary property improvement.

- Improvement in impregnability of fibres

 Ideal for making small, precise and easy things because of its exceptional strength and quality. The design is very pleasing to the eye.


If you a interested you can also get sheet by your desired dimensions.

Specification:



Nominal

Tolerance:

Fiber:

Spread tow Carbon fabric 160 g/m², 4.7 oz/yd²



Fibre description

TR 50S 15K carbon fiber



Weight:

160 g/sqm || 4.7 oz/yd²

± 5%

Thickness:

0.16 mm*

± 2%

Weave:

Plain, spread tow



Width:

100 cm



Tensile strength (MPa):

4900



Tensile modulus (GPa):

240



Elongation at break (%):

2.0





Warp – Weft ratio:



Warp

Weft

Fibre description:

TR 50S 15K carbon fiber

TR 50S 15K carbon fiber

Thread count, ends/cm

0.66

0.66

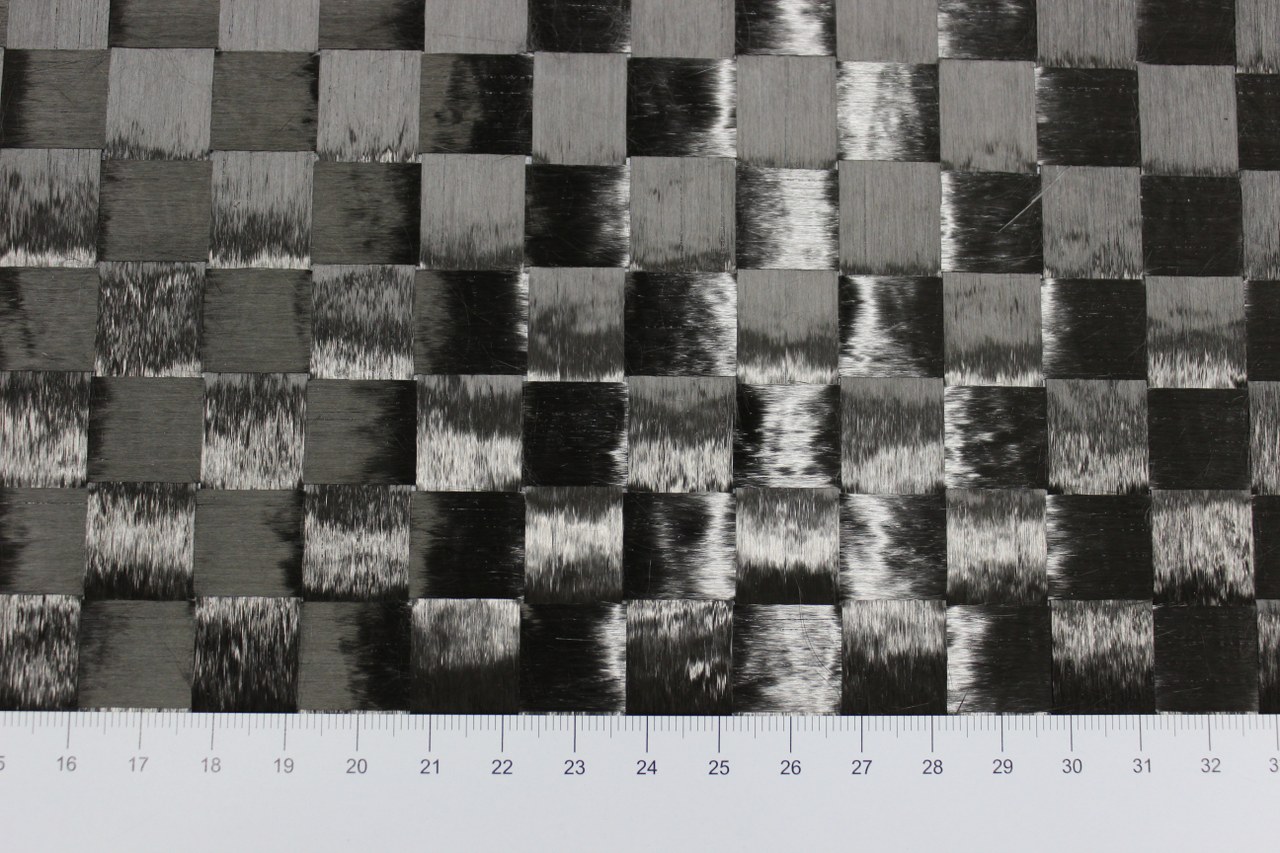

Thread count, mm

15

15

Weight distribution (g/mq)

80

80

Weight distribution (%)

50

50

Selvadge

Leno, thermostabilized glass 1670 tex

Leno, thermostabilized glass 1670 tex

Yarn number:

1000 tex

1000 tex

Carbon fiber producer

Grafil

Grafil
