Carbon - aramid 170 g/m² – 3K 2:1 Hybrid

CLM-Pro-hybrid-carbon-kevlar-170-1

Carbon - aramid 170 g/m² – 3K 2:1 Hybrid

RatingNot Rated Yet
Base price $10.99
Base price with tax
Sales price $8.24
Sales price without tax $8.24
Discount $-2.75
Description

High quality hybrid Carbon - aramid  170 g/m², 5.0 oz/yd²  – 3K 2:1 plain cloth hybrid.

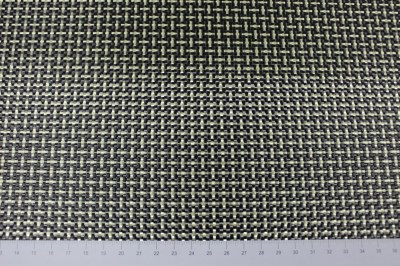

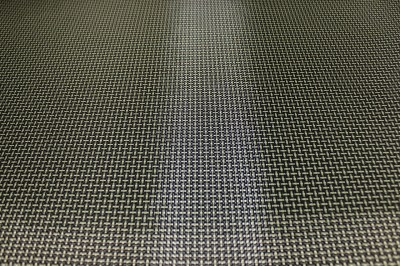

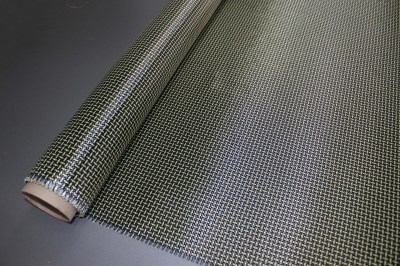

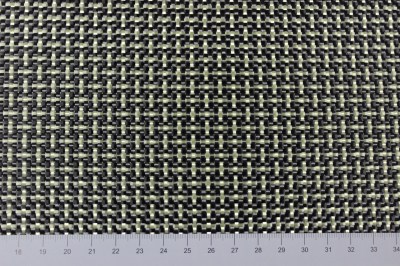

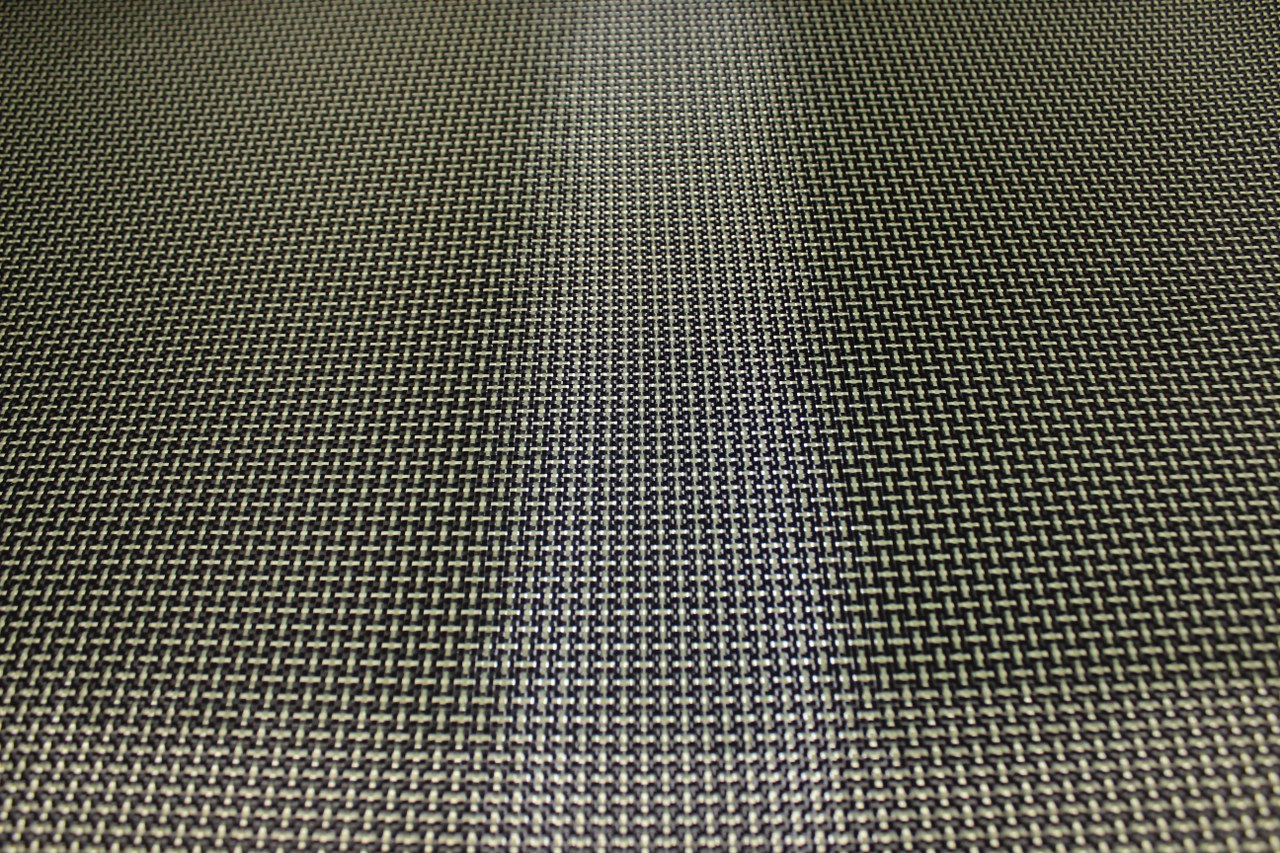

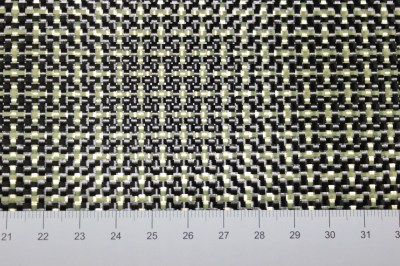

High quality Carbon - aramid fabric 170 g/m², 5.0 oz/yd²  – 3K 2:1 plain cloth hybrid - sample A4. The material is thick, opaque and compact in the middle. Fantastic designer look.

It is only an sample of the material, A4 20x30cm / 11.81“x7.87“

High quality, plain weave Carbon/Kevlar hybrid fabric, woven from Carbon and Kevlar. The ratio of Carbon to Kevlar is 2:1 in the warp and 1:2 in the weft. This fabric was originally designed to increase the stiffness in the warp (lengthways) for the manufacture of windsurfers and surfboards, and is commonly used in canoes and kayaks.

The Carbon Fibre will provide the stiffness required, whilst the Aramid will provide the impact and abrasion resistance. This is a unique looking cloth used in all aspects of motor sport and marine applications. Compatible with Epoxy and Polyester Resins. This cloth has good drape-ability, is easy to handle and is used in Vacuum Bag techniques, Resin Infusion and Hand Lay – up.

Application:

Modelling, motor sports, sport equipment, ship construction. Rigidity and extreme resistance to pressure due to carbon fibre. Impact strength, tensile strength. High absorbing capacity and wear resistant due to the aramid fibre

Material as per aircraft standards.

If you a interested you can also get sheet by your desired dimensions.

Specification:



Nominal

Tolerance:

Fiber:

Carbon-aramid 170 g/m², 5.0 oz/yd²



Fibre description

Diolen 164S 1670, aramid 1260



Weight:

170 g/sqm / 5.0 oz/yd²

± 3%

Thickness:

0.27 mm

± 5%

Weave:

plain



Width:

120 cm





Warp – Weft ratio:



Warp

Weft

Fibre description:

Diolen 164S 1670

Aramid 1260

Aramid 1260

Diolen 164S 1670

Thread count (ends/cm)

5.0

5.0

Weight distribution (g/mq)

Diolen 56,67

Aramid 28,33

Aramid 56,67

Diolen 28,33

Weight distribution (%)

Diolen 66,67

Aramid 33,33

Aramid 66,67

Diolen 33,33

Total weight rate (%)

50

50

Yarn number

200 tex

200 tex
