Fuselage Sets

Electric Fuselage set #120

CLM-Pro-electric-fuselage-set-120

Electric Fuselage set #120

RatingNot Rated Yet
Base price $120.00
Base price with tax
Sales price $108.00
Discount $12.00
ManufacturerCLM Pro
Description

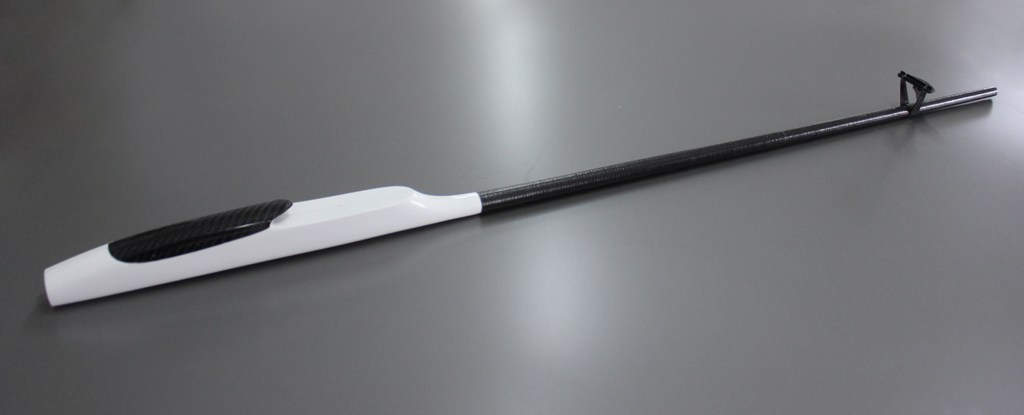

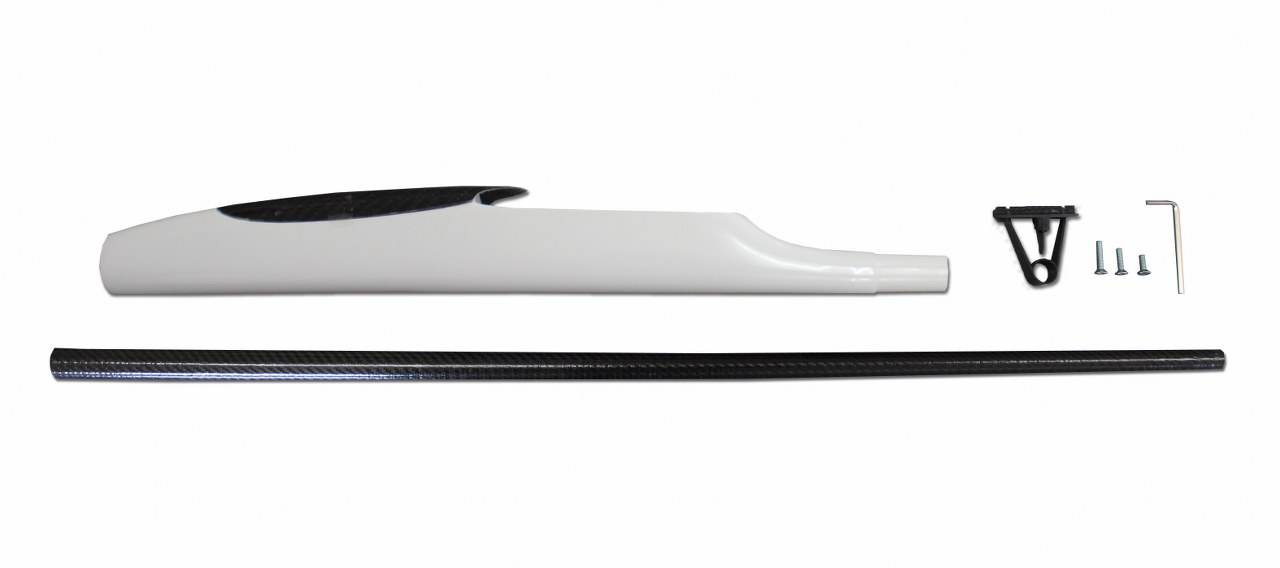

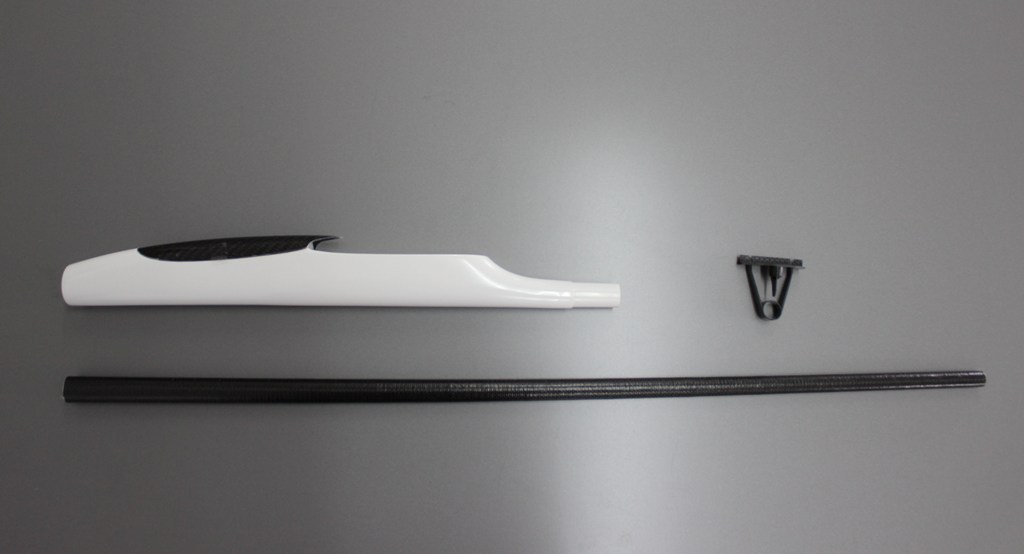

CLM Pro Electric Fuselage set #120 suitable for wingspan up to 2 meters / 79". Set contains electric pod made from fiberglass, carbon tailboom and V-mount.

CLM Pro Electric Fuselage set #120 suitable for wingspan up to 2 meters / 79".

Set contains electric pod made from fiberglass, carbon tailboom and V-mount.

Set weights 77 grams / 2.71 oz.

Carbon boom is 700 mm/ (27.55" long and weights 22g / 0.77 oz. Wide end: 19 mm / 0.74", narrow end: 12.5 mm / 0.49".
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

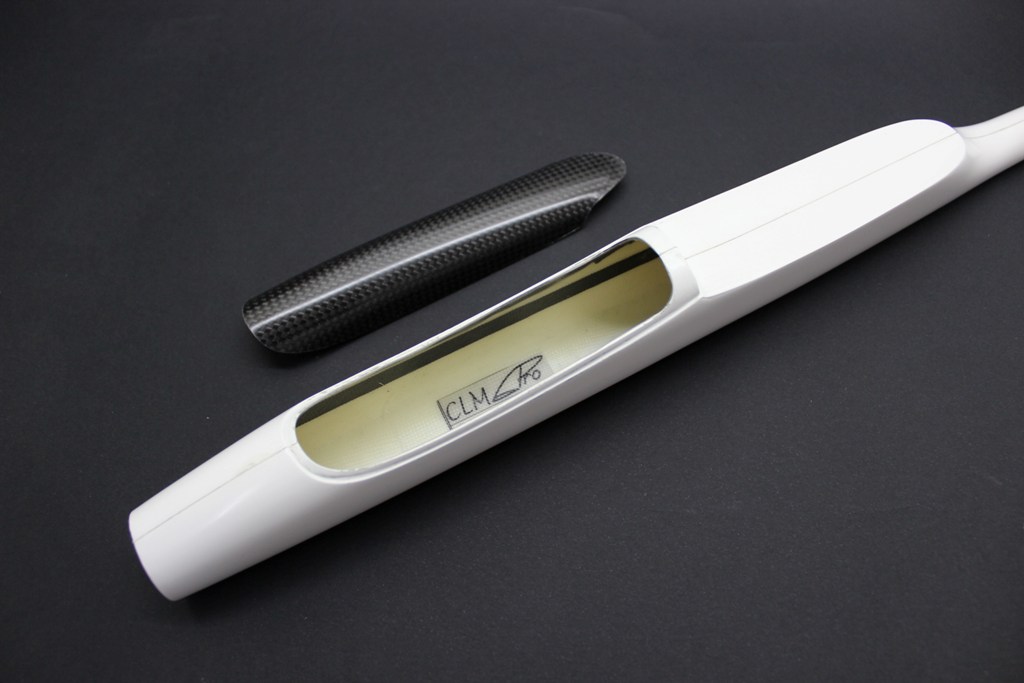

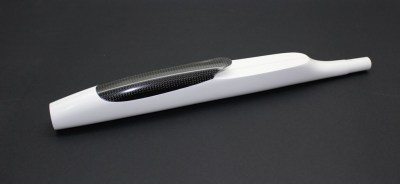

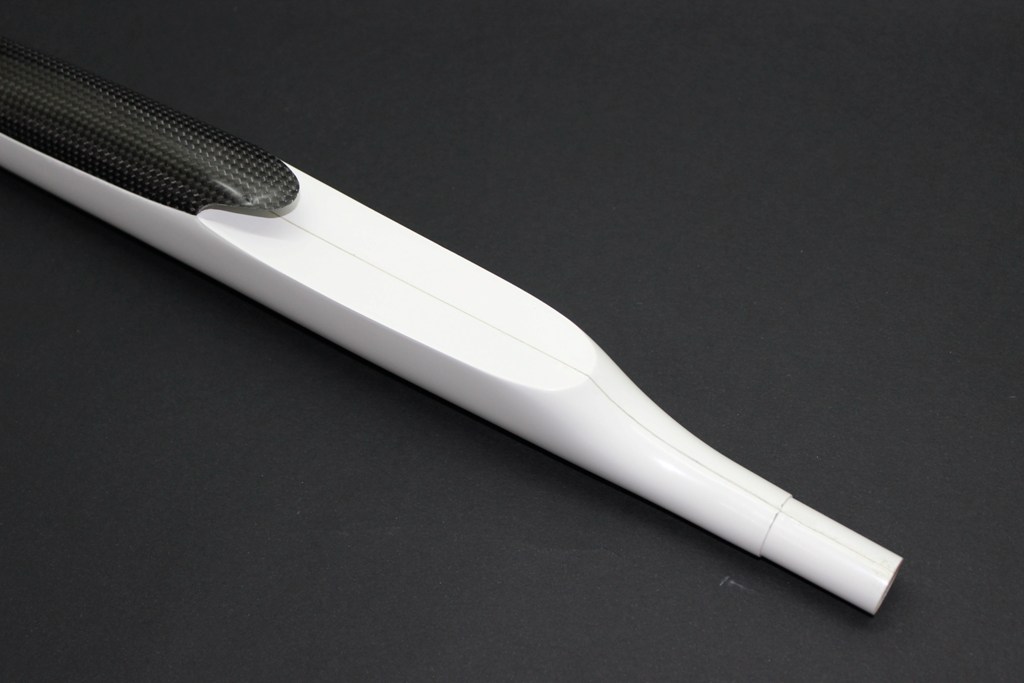

Electric pod is entirely made of fiber glass and carbon, it is very light and strong. 2.4 GHz friendly.
Pod is reinforced with carbon on strategic spots which gives it more strength.
Edges around the canopy are reinforced with carbon.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
Already installed firewall, which had angle of 2° downwards.. Made for spinner of 30 mm (1.18") diameter.").
Ideal for home builder, it can be used as replacement pod for other models.
The final color is white - gelcoat, resistant to UV rays.

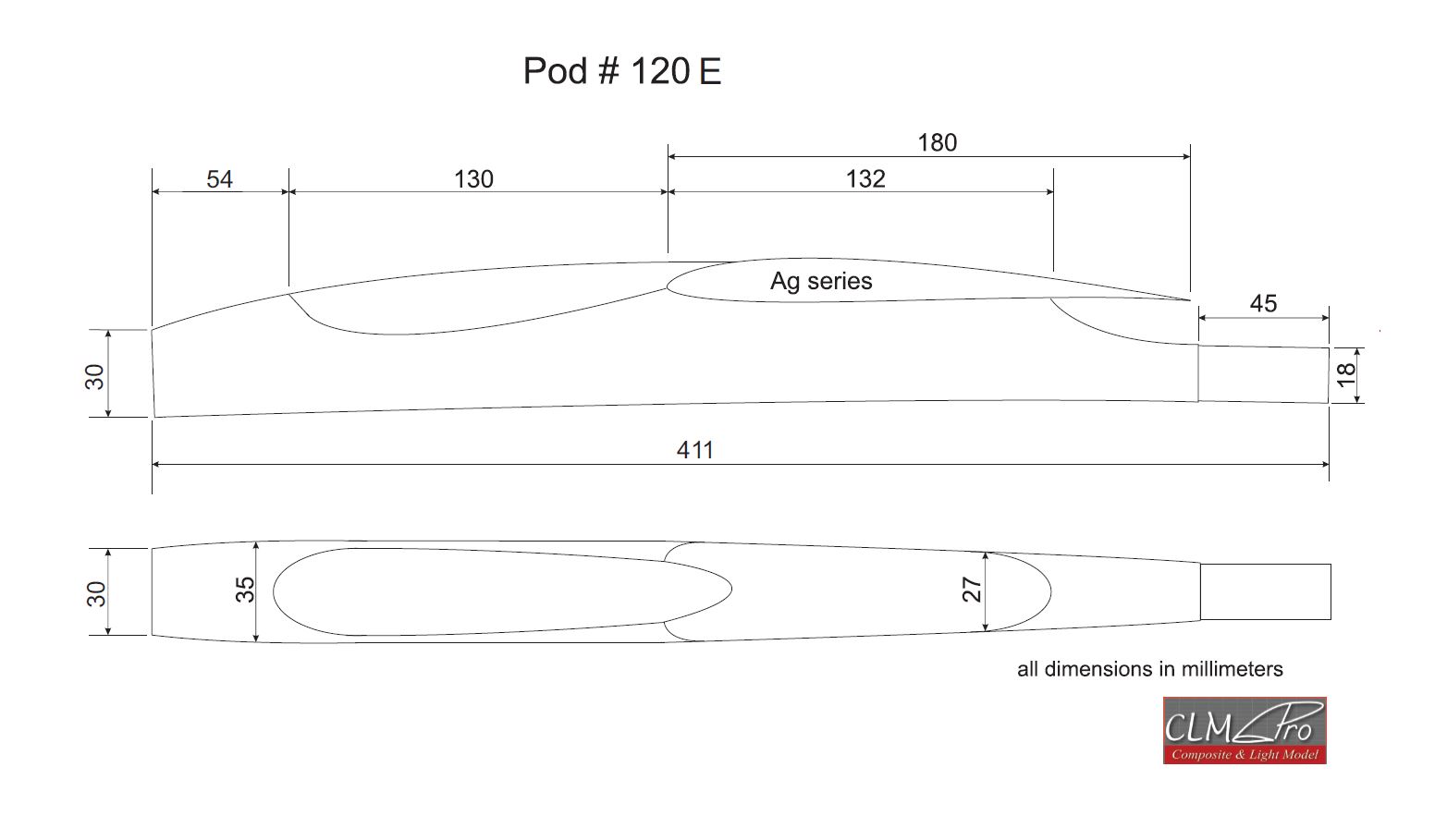

Electric Pod Specifications

Length

411 / 16.18"

Wing depth

180 mm / 7.06"

Profile

AG series

Boom diameter

18 mm / 0.70"

Dihedral angle

Weight

50 g / 1.76 oz

Spinner

30 mm / 1.18"

Motor diameter

max 32 mm / 1.25"

Carbon Tailboom

Length

700 mm / 27.55"

Wide End

19 mm ID / 0.75"

Narrow End

11.5 mm OD / 0.452"

Weight

22 g / 0.77 oz

Wall thickness

0.5 mm / 0.019"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"
