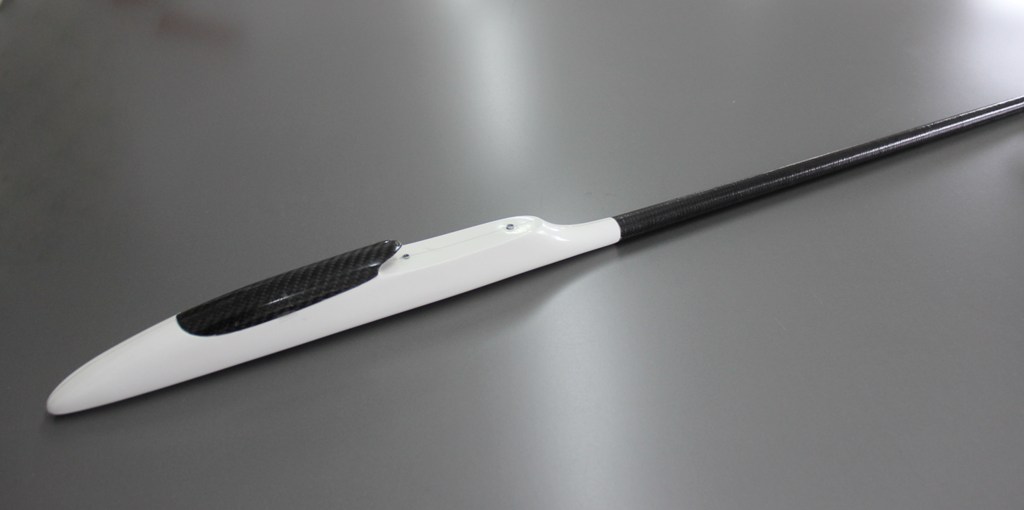

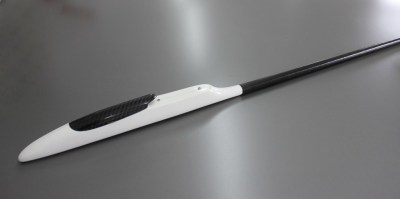

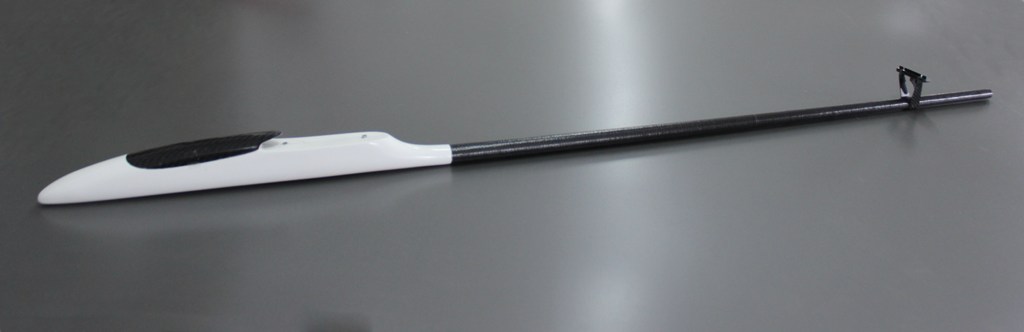

CLM Pro Fuselage set #120 suitable for wingspan up to 2 meters / 79".

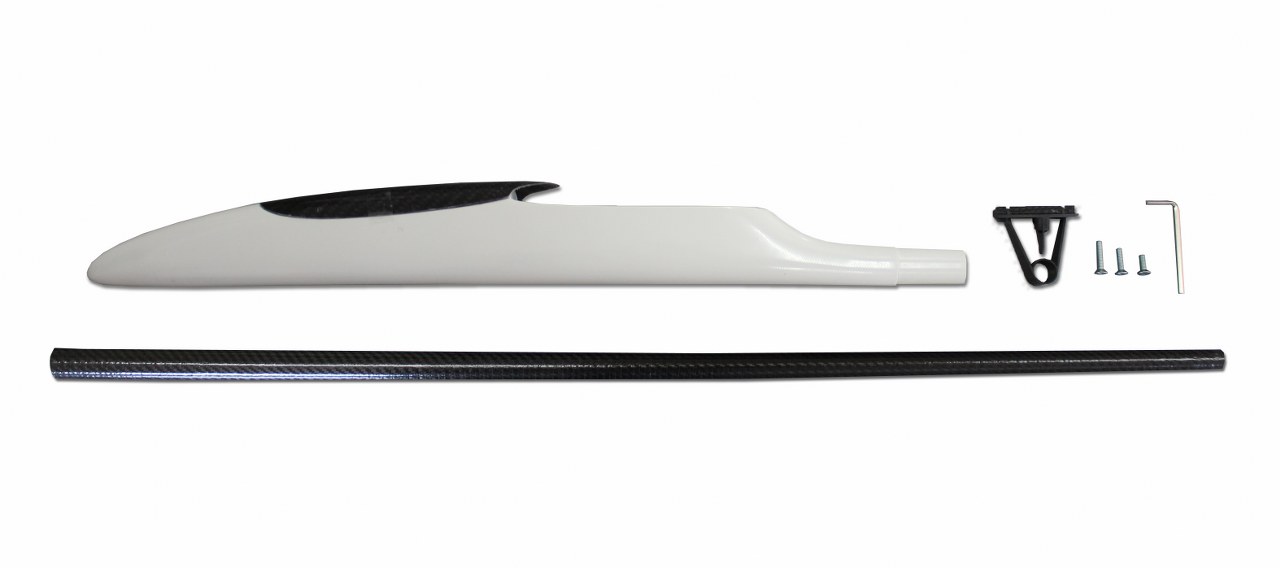

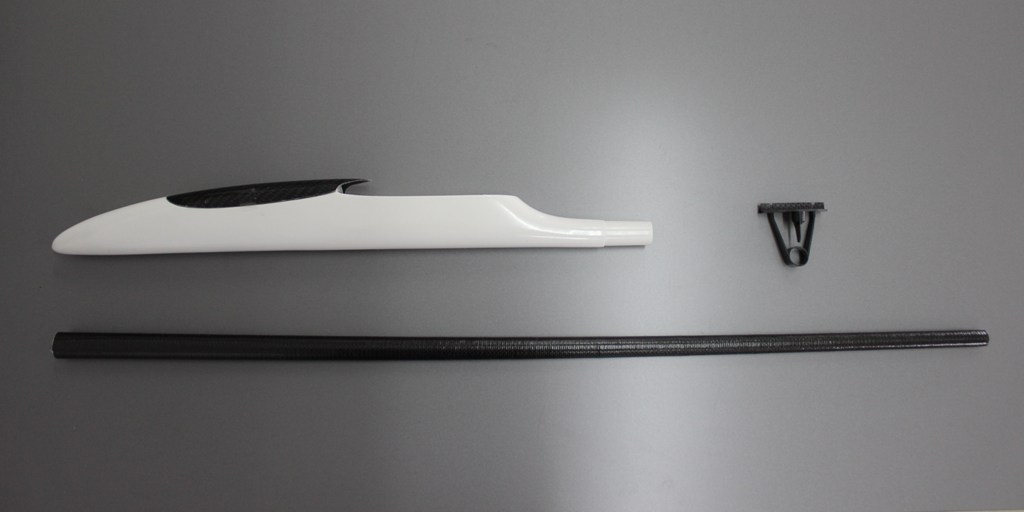

Set contains glass fabric pod #120, carbon tailboom and V-mount.
Set weights 77 grams /2.71 oz.
Carbon boom is 700 mm/ (27.55" long and weights 22g / 0.77 oz. Wide end: 19 mm / 0.74", narrow end: 12.5 mm / 0.49".
Carbon tail boom is made from several carbon types. Materials are strategically positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.
Pod is entirely made of fiber glass and carbon, it is very light and strong. 2.4 GHz friendly.
Pod is reinforced with carbon on strategic spots which gives it more strength.
Edges around the canopy are reinforced with carbon.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.

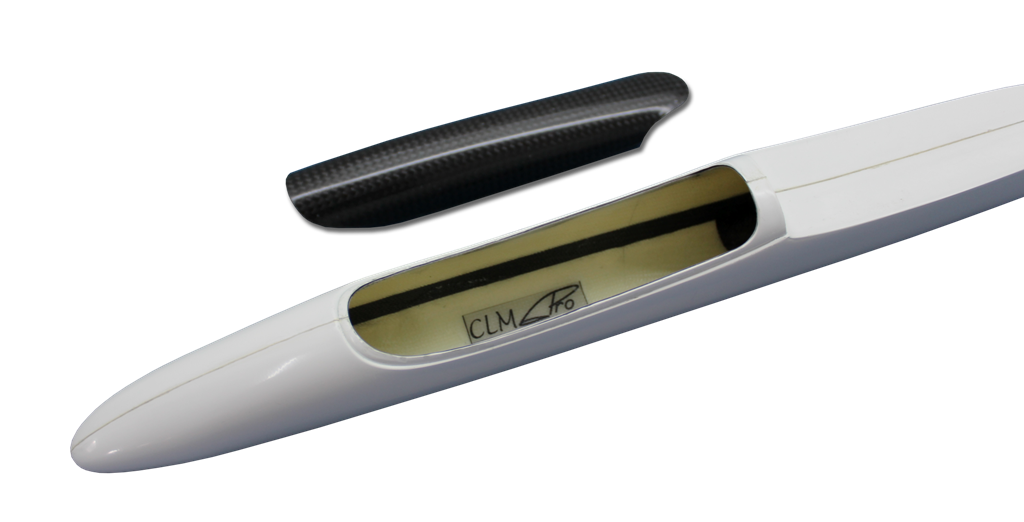

Supplied with a removable carbon canopy.
This Pod is suitable for wingspan up to 2 meter (79"). Ideal for home builder, it can be used as replacement pod for other models.
The final color is white - gelcoat, resistant to UV rays.

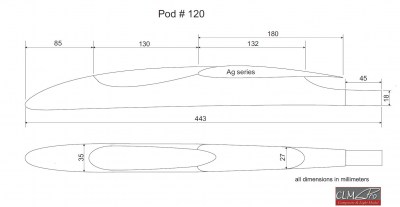

Pod Specifications |
|
Length |
433 mm / 17.44" |
Wing depth |
180 mm / 7.06" |
Profile |
AG series |
Boom diameter |
18 mm / 0.70" |
Dihedral angle |
0° |
Weight |
50 g / 1.76 oz |
Carbon Tailboom |
|
Length |
700 mm / 27.55" |
Wide End |
19 mm ID / 0.75" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
22 g / 0.77 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
