Fuselage sets with tails

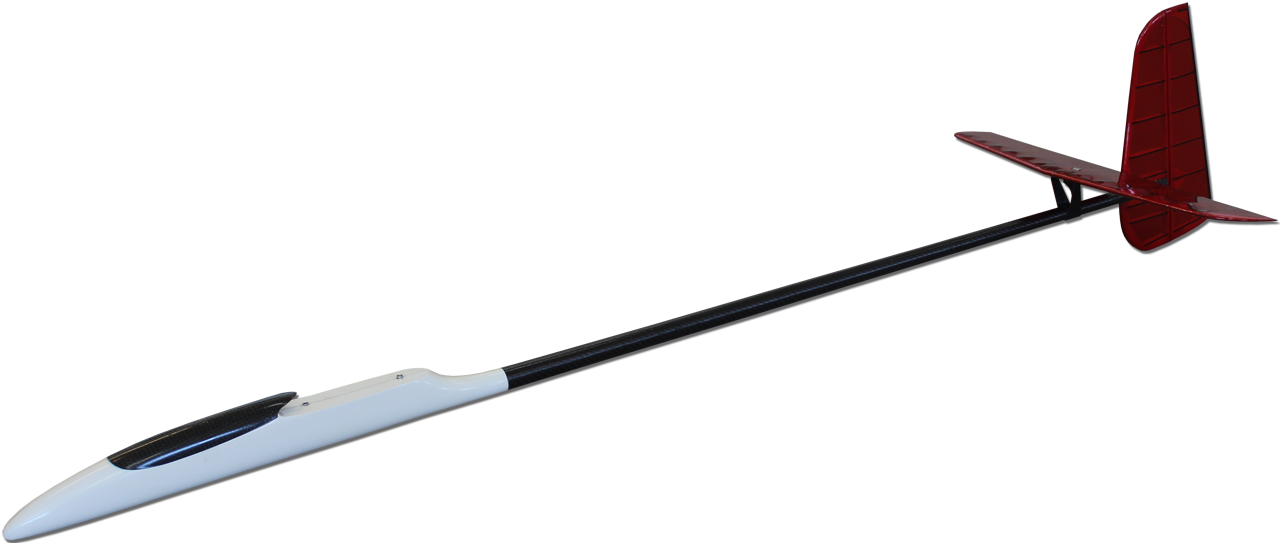

Fuselage set #120 with completed tail

CLM-Pro-fuselage-set-glider-120-tail-1

Fuselage set #120 with completed tail

RatingNot Rated Yet
Base price $200.00
Base price with tax
Sales price $180.00
Sales price without tax $180.00
Discount $20.00
ManufacturerCLM Pro
Description

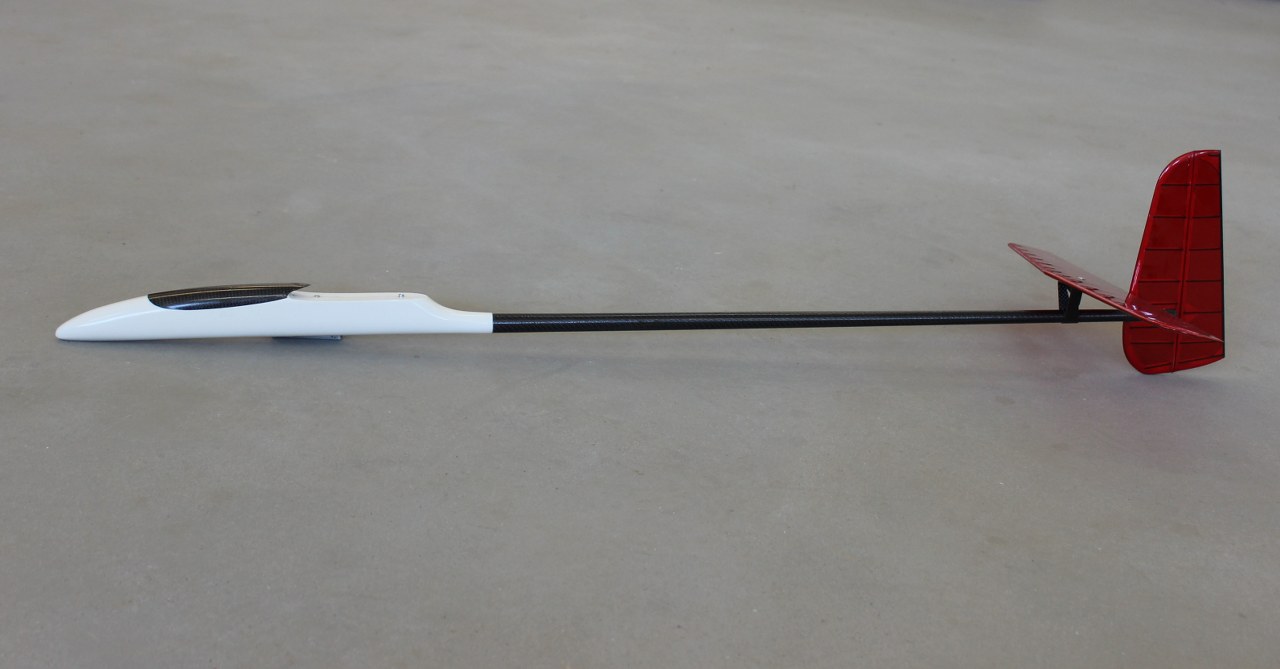

CLM Pro pure glider fuselage set #120 with completed tail set. Suitable for wingspan of up to 2m / 79". Fuselage set contains pure glider glass fabric pod #120, carbon tailboom, V-mount and completed tail set. 2.4 GHz friendly.

CLM Pro pure glider fuselage set #120 with completed tail set. Suitable for wingspan of up to 2m / 79". 2.4 GHz friendly.

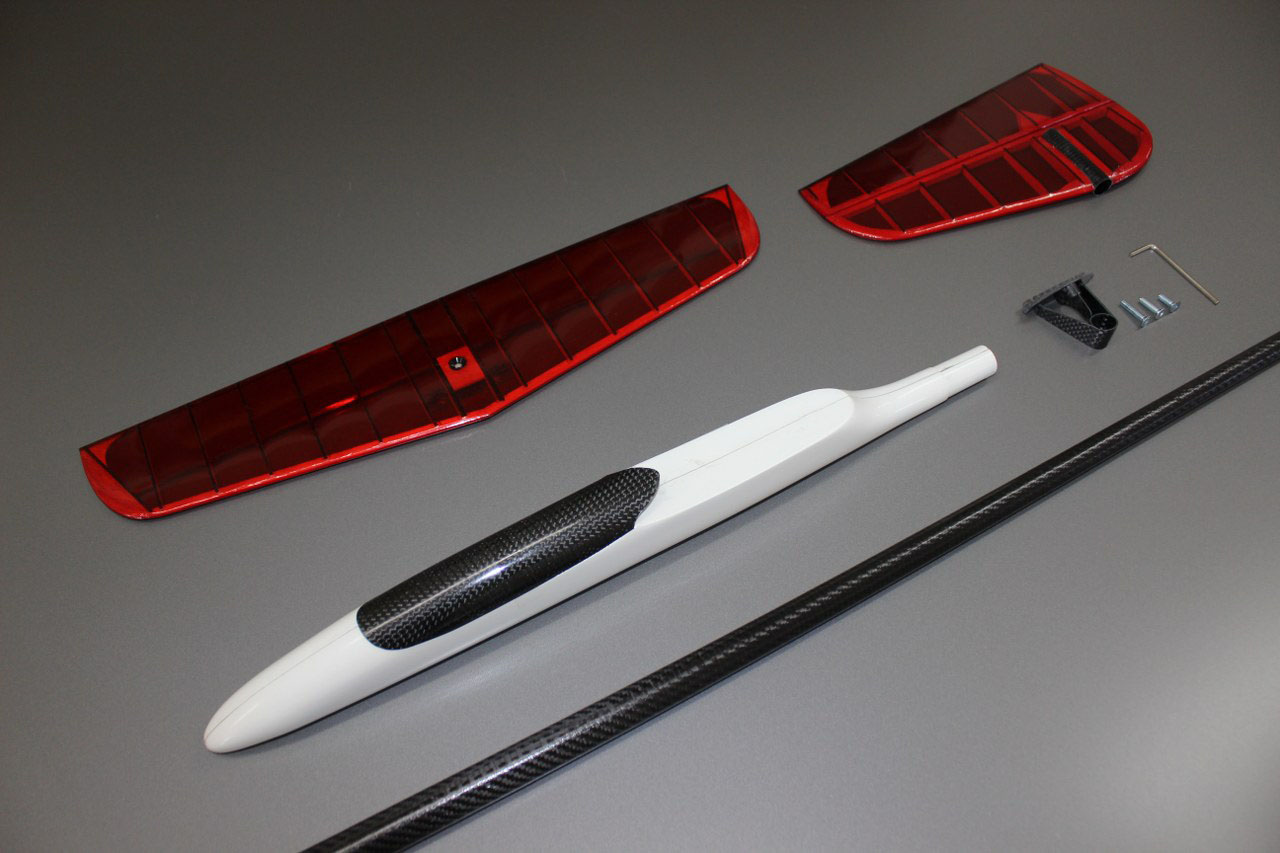

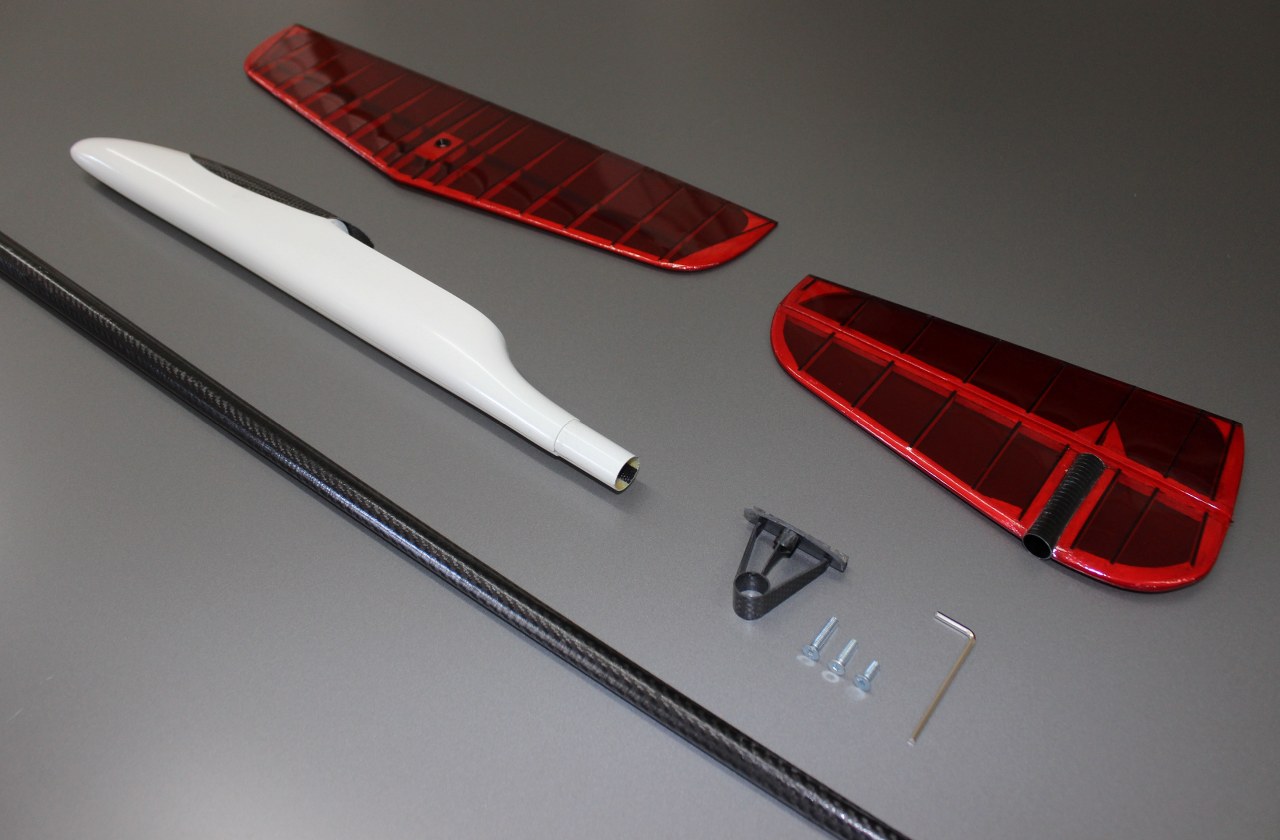

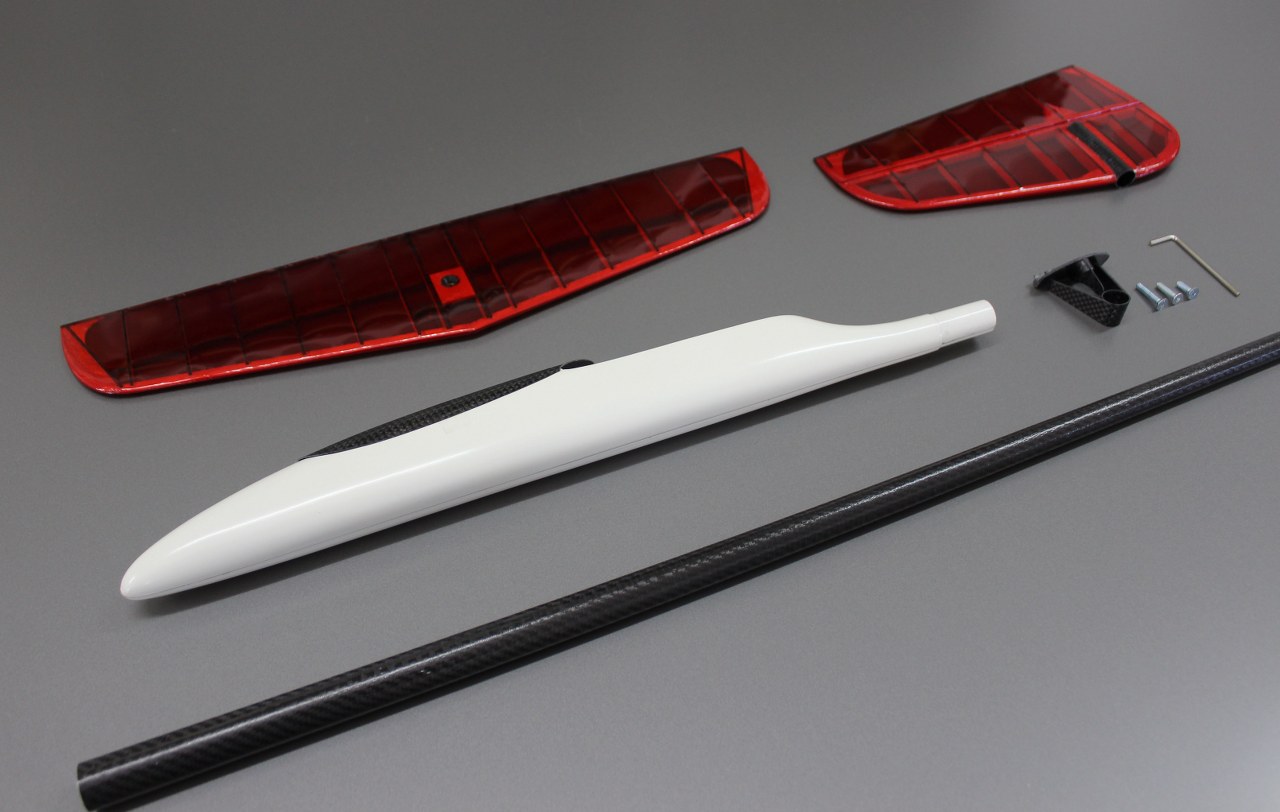

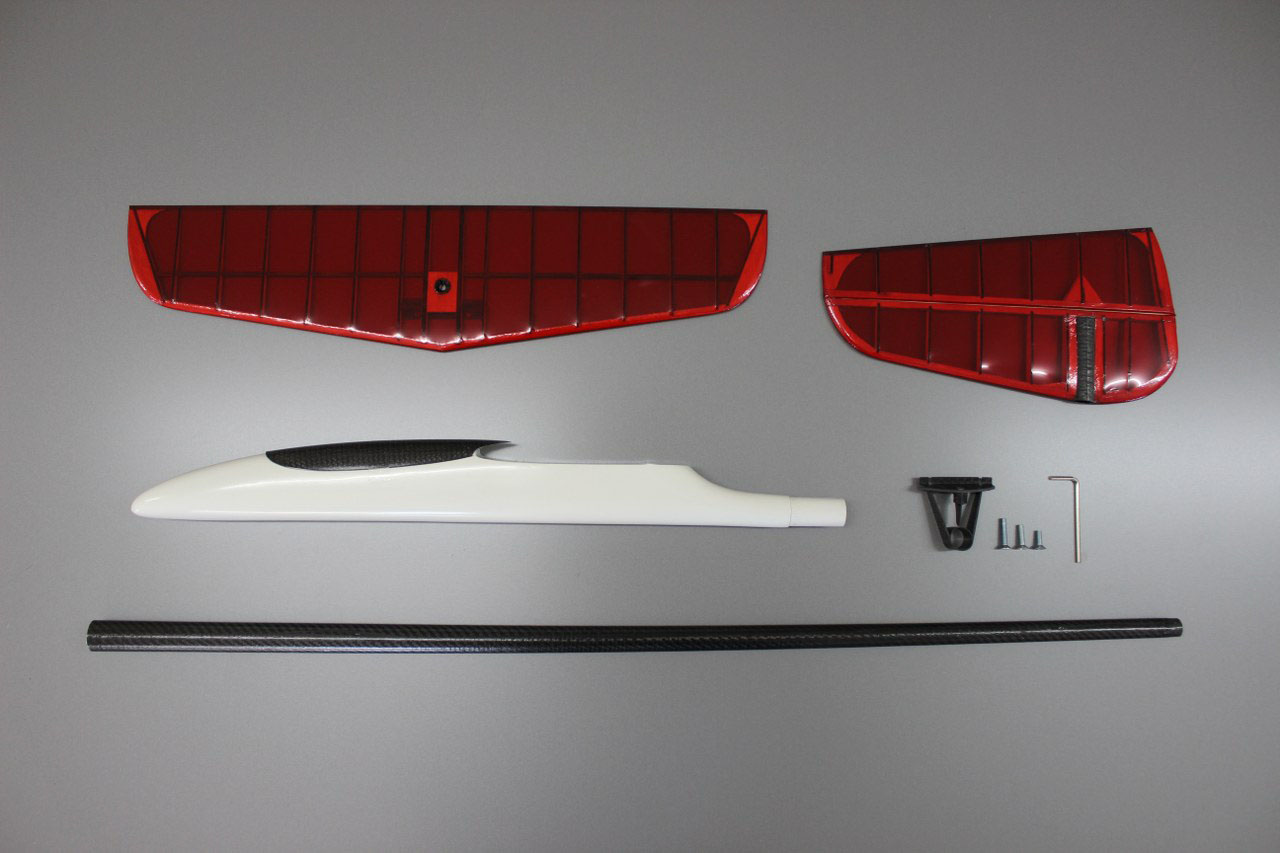

Fuselage set contains pure glider glass fabric pod #120, carbon tailboom, V-mount and completed tail set.

Set weights 102 grams / 3.59 oz.

Carbon tailboom is 700 mm / 27.55" long and weights 22g / 0.77 oz. Wide end: 19 mm / 0.74", narrow end: 12.5 mm / 0.49".
Carbon tailboom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

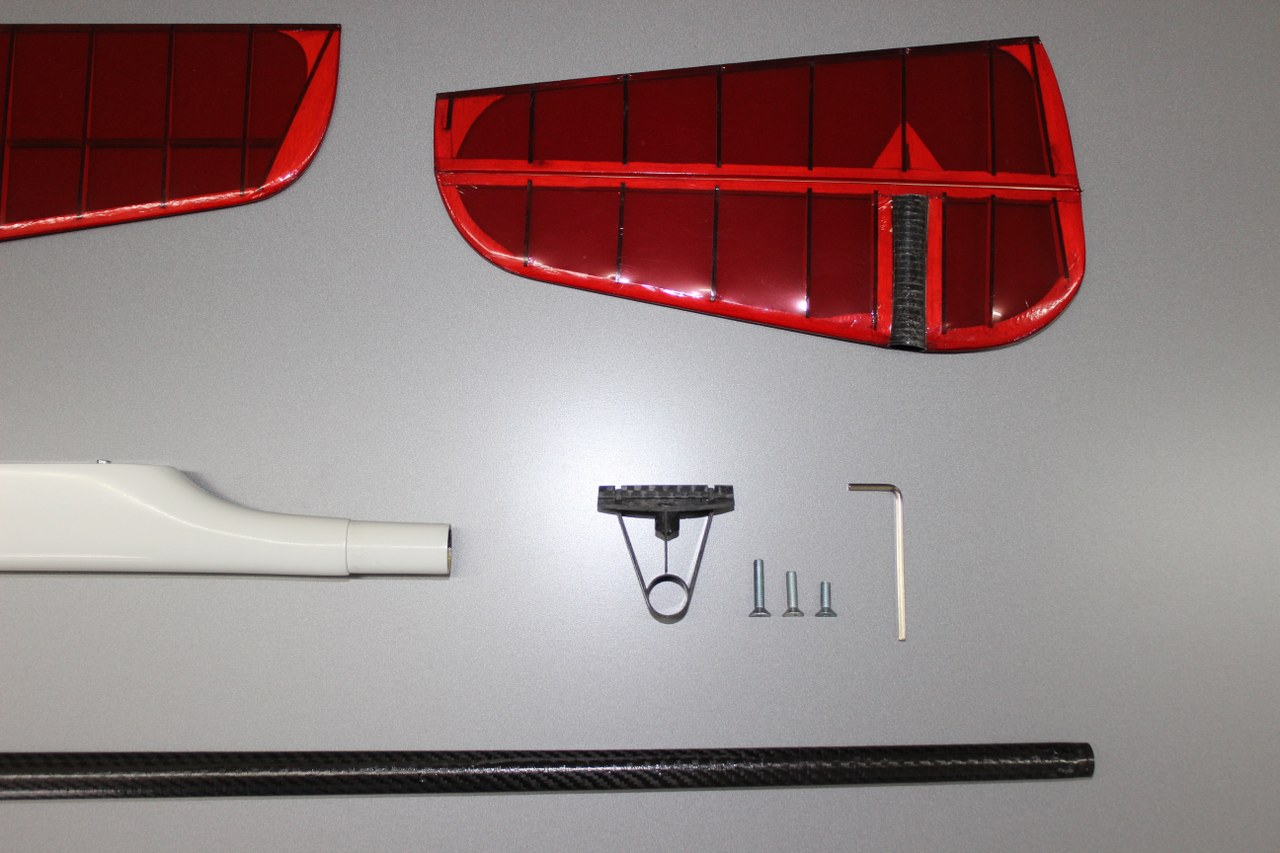

Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

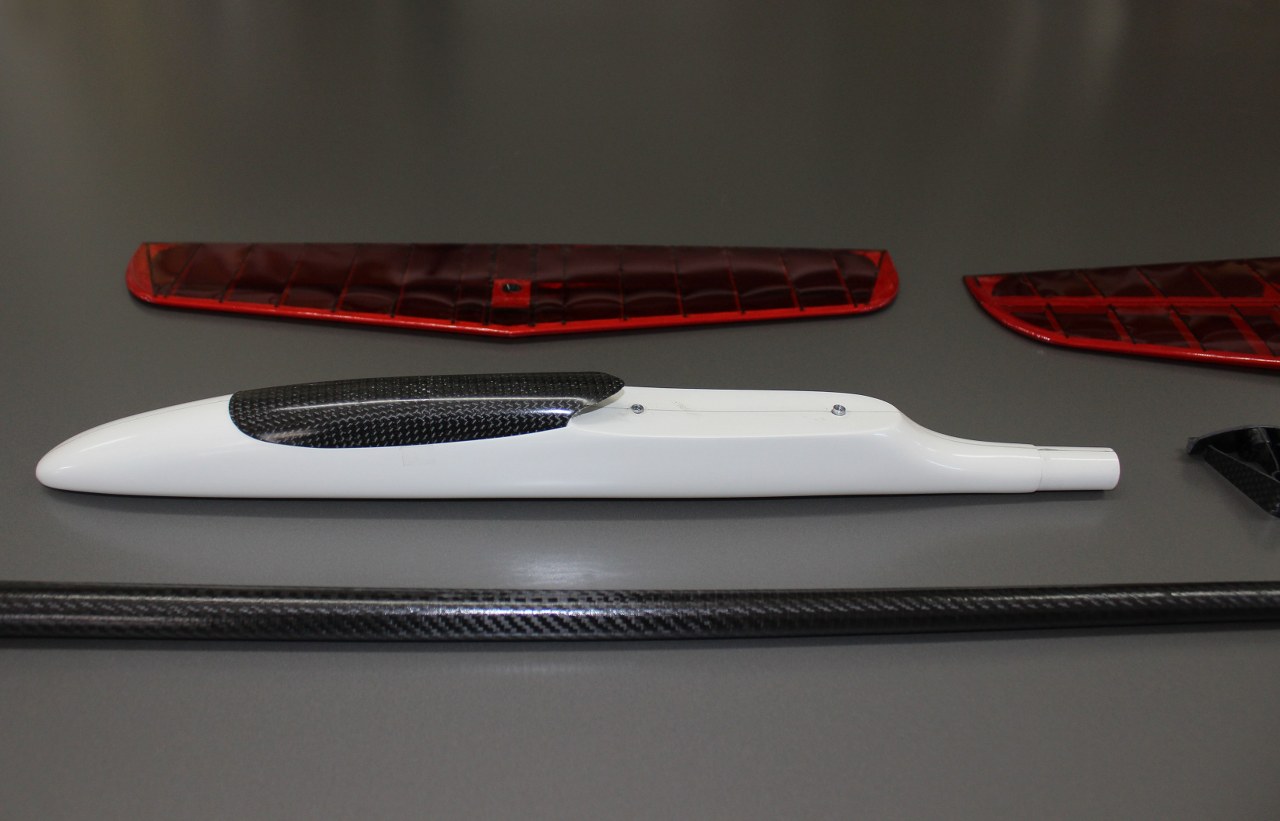

The pure glider pod is completely made of composites (multiple types of materials), mainly glass fabric, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is, of course, 2.4 GHz friendly. It is strong enough to withstand even hardcore landings and other forces. The part where the tow hook and pylon are also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

This pod is suitable for wingspan up to 2 meter / 79". Ideal for home builder, it can be used as replacement pod for other models.

The standard pod version is in white, i.e. coated with gel coat, which is UV stable and wear-resistant.

NOTE: If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

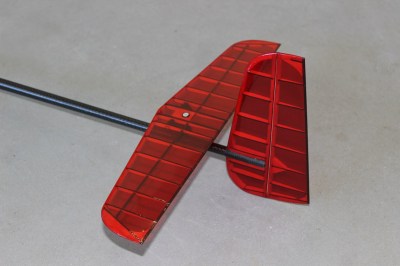

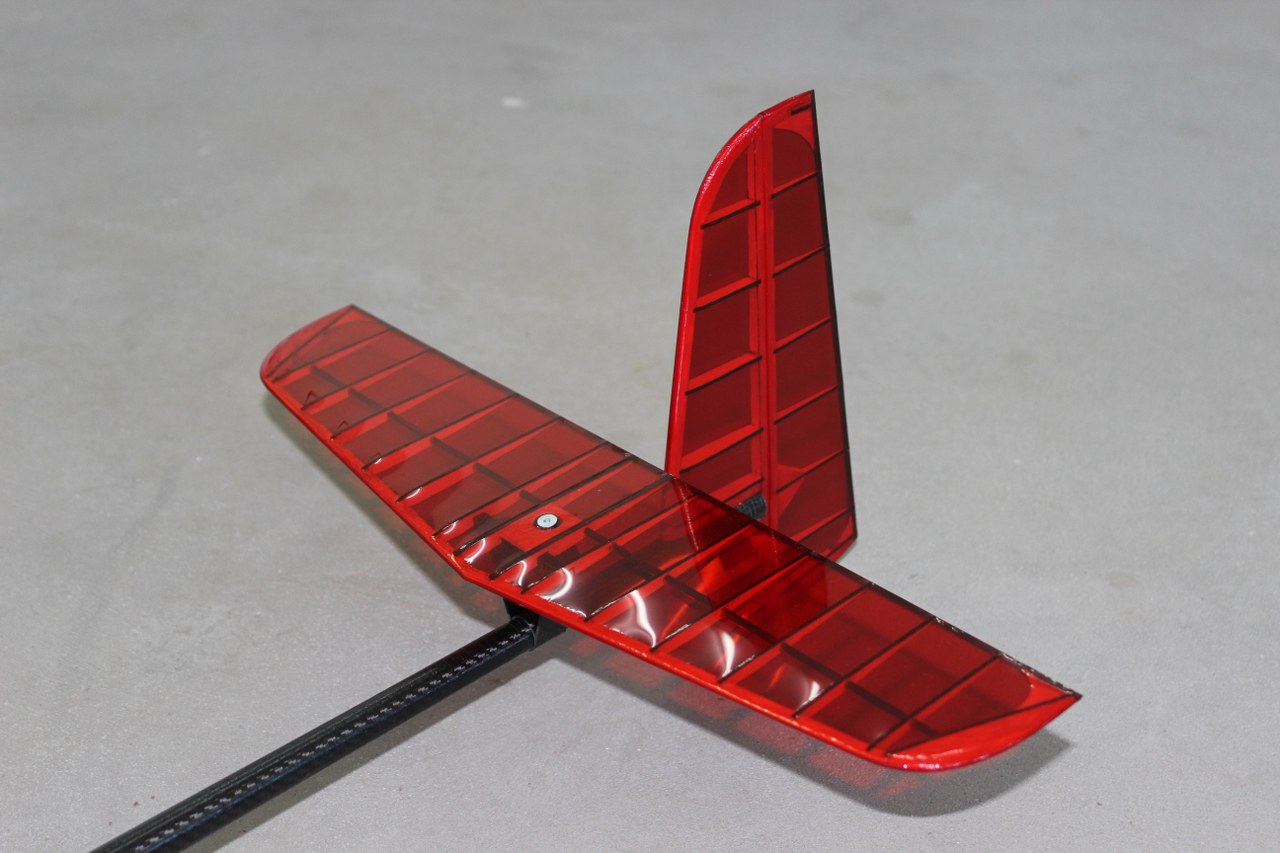

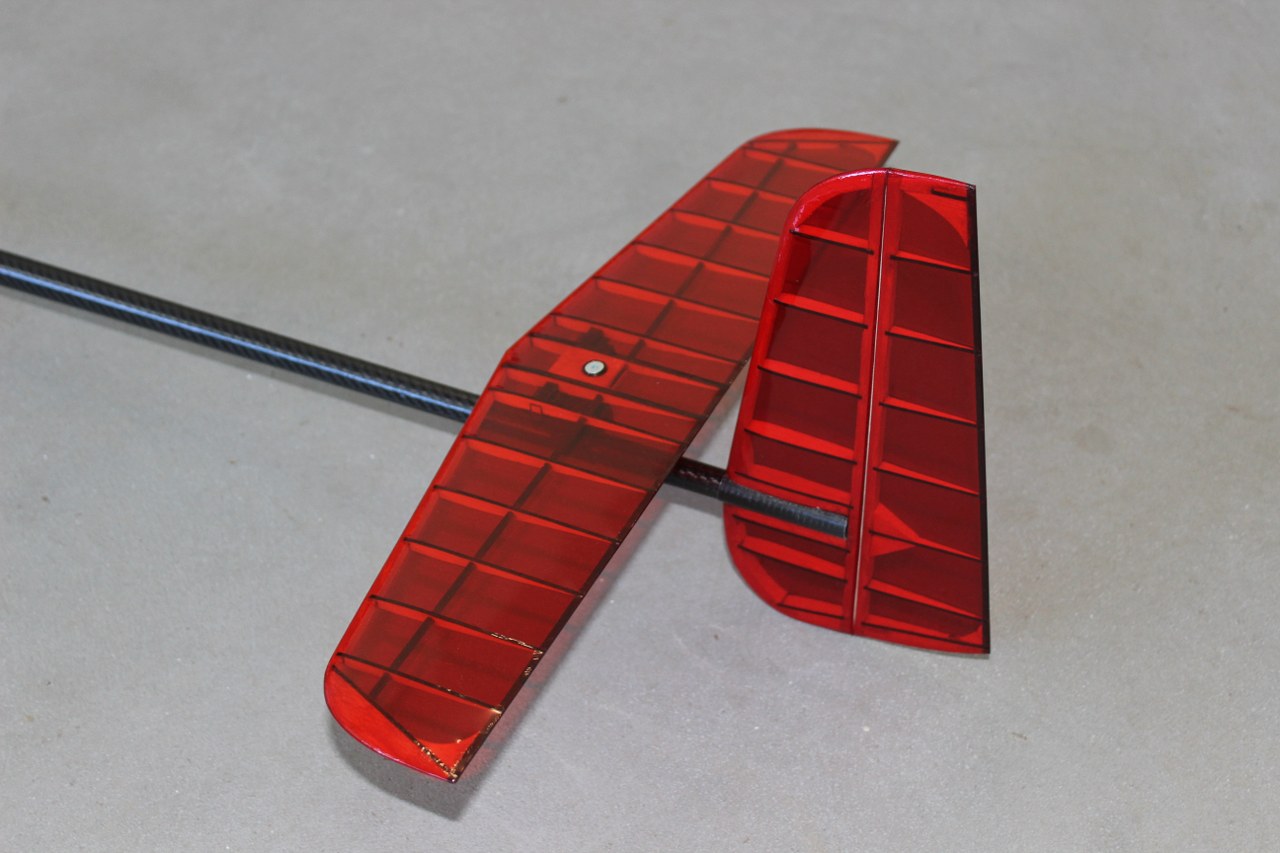

Tail:
The tail is projected and constructed so it looks very elegant and has excellent flight characteristics.
The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.
Vertical stabilizer is made the same way and it already has a built in kevlar hinge.

Complete tail is covered with Oracover - Light Oralight foil.

NOTE: Your tail can be covered in any color from our Oracover Oralight offer.

The tail is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

Pod #120 specifications

Length

433 mm / 17.44"

Wing depth

180 mm / 7.06"

Profile

AG Series

Boom diameter

18 mm / 0.70"

Dihedral angle

Weight

50 g / 1.76 oz

Spinner

max 30 mm / 1.18"

Carbon Tailboom

Length

700 mm / 27.55"

Wide End

19 mm ID / 0.75"

Narrow End

11.5 mm OD / 0.452"

Weight

22 g / 0.77 oz

Wall thickness

0.5 mm / 0.019"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"

Tail set

Elevator / horizontal stabilizer

12.5g / 0.41 oz

Rudder / vertical stabilizer

13g / 0.46 oz
