Fuselage pods / E-pods

Pod #131

CLM-Pro-Pod-131

Pod #131

RatingNot Rated Yet
Base price $115.00
Base price with tax
Sales price $97.75
Sales price without tax $97.75
Discount $-17.25
ManufacturerCLM Pro
Description

CLM Pro pure aramid pod #131. Suitable for wingspan of up to 3.6 meters / 142". Made of fine aramid cloth. ALES, F5J, F3J.  Ava / Supra compatible.

Pod is completely made of composites, mainly aramid, and has carbon fiber reinforcements on strategic spots, so it is 2.4 GHz friendly.

It is strong enough to withstand even the hardcore landing and forces.
Edges around the canopy are reinforced with carbon.
Part where tow hook, pylon are also reinforced, just like top of the nose, so it can be landed roughly.

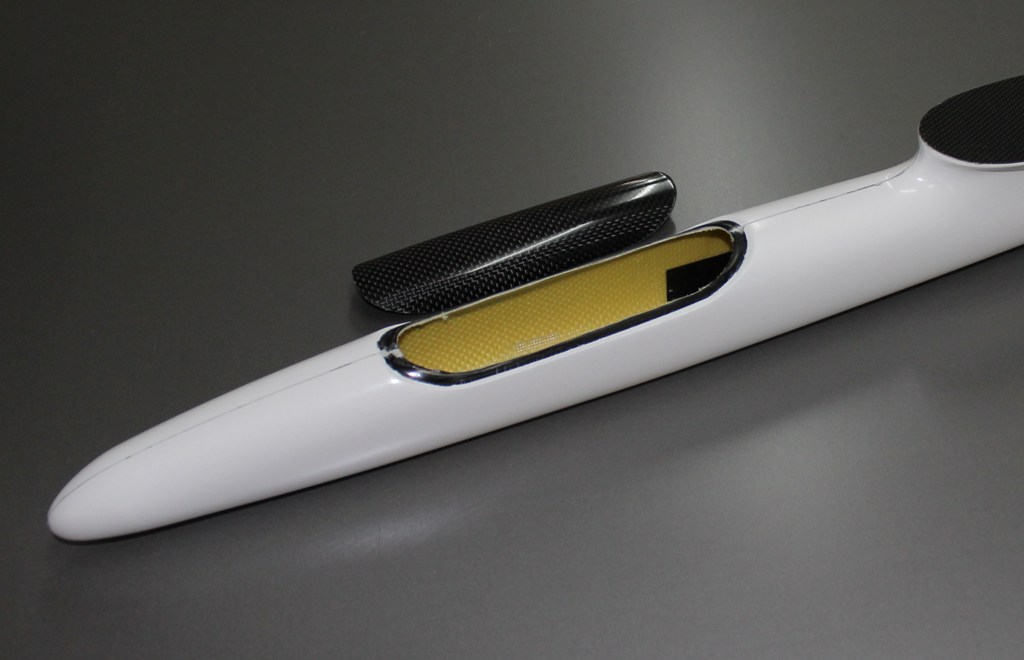

Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
Made for spinner of 30-32 mm - possibility to mount electric motor dimension up to 32mm in diameter.
This pod is suitable for wingspan up to 3.6 meters / 142".
Ideal for home builder, it can be used as replacement pod for other projects.
The final color is white - gelcoat, resistant to UV rays.

Boom suitable for this Pod: #209 and #210

NOTE: The pod is designed so that you can make an electric version. Since the nose is quite reinforced, it is only necessary to cut the nose on specified length, put firewall and you get a diameter of 30-32 mm for a spinner.



Pod Specifications

Length

695 mm / 27.40"

Wing depth

265 mm / 10.40"

Profile

AG Series

Boom diameter

24 mm ID / 0.945"

Dihedral angle

Weight

155 g / 5.46 oz

Spinner

32 mm / 1.26"
