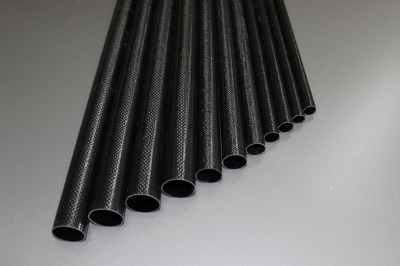

High quality carbon tail boom #219. The tail boom is tapered from wide end ID 25 mm / 0.984" on the pod, to narrow end OD of 12 mm / 0.472" at the tail in order to reduce the aerodynamic drag, total tailboom length is 760 mm / 29.92".
It is made from several carbon types. We are using only the finest 3K aero carbon fiber material in combination with +-45° oriented carbon unidirectional non-crimp carbon fiber which are strategically positioned so the boom has maximum strength with minimum weight.
Excellent corrosion, heat resistance and electrical conductivity. Very good torsional, flexural and hoop stiffness.
We used resin which has certificate for aero building and Atest, and the tail boom is additionally heated so it get its maximum strength.
|Carbon tail boom specification|
|Length||760 mm / 29.92"|
|Wide end ID||25 mm / 0.984"|
|Narrow end OD||12 mm / 0.472"|
|Wall thickness||0.70 mm / 0.027"|
|Weight||35 g / 1.23 oz|
