Composite material

Aero 1K Carbon fabric 93 g/m² – 1K fine twill

CLM-Pro-fine-1k-aero-carbon-fiber-twill-93g-1

Aero 1K Carbon fabric 93 g/m² – 1K fine twill

RatingNot Rated Yet
Base price $13.99
Base price with tax
Sales price $13.99
Sales price without tax $13.99
Discount
Description

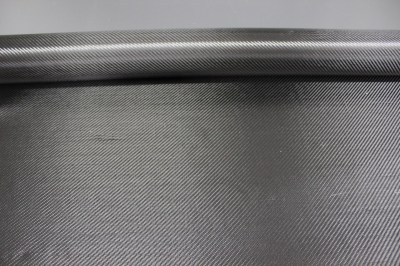

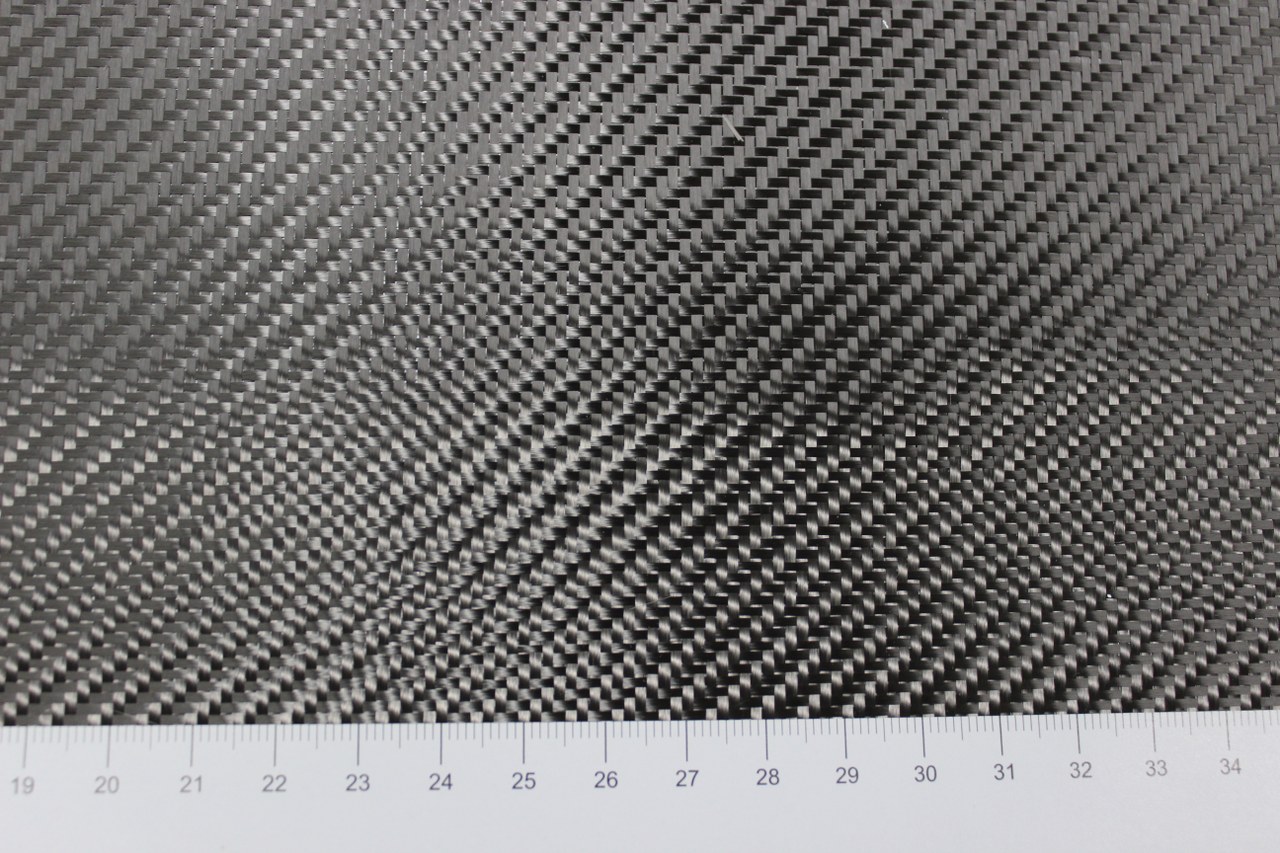

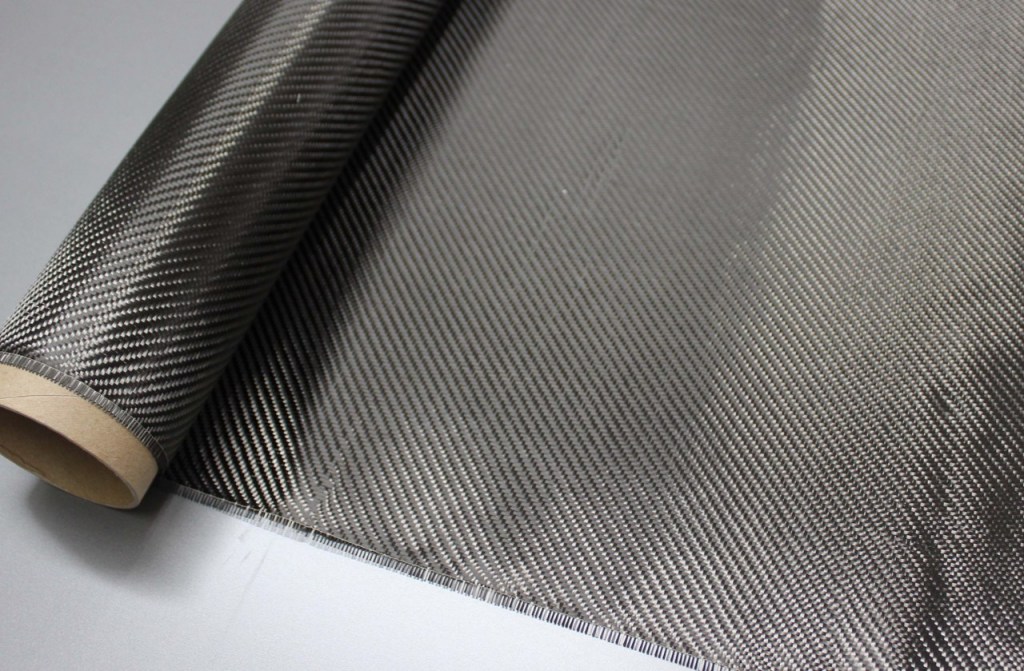

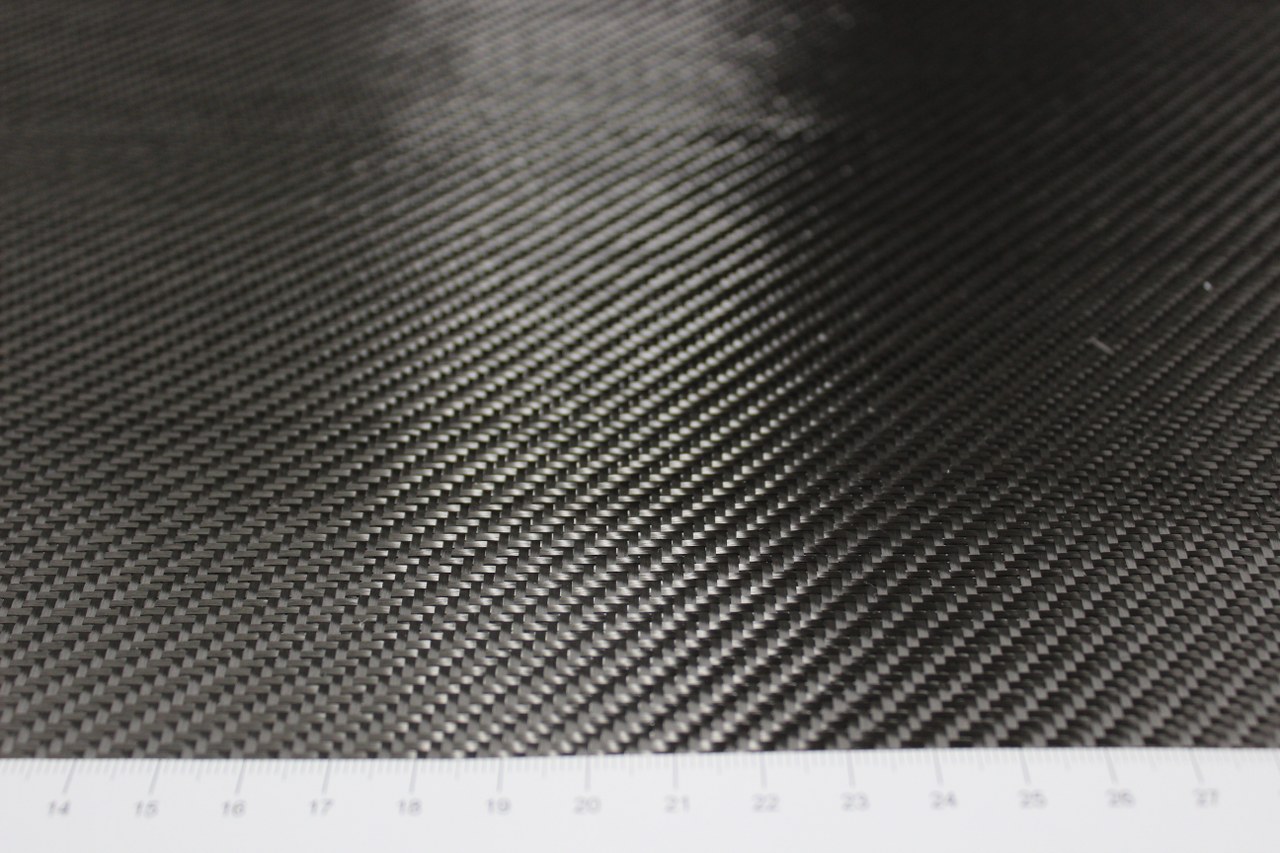

High quality ultra fine Aero 1K Carbon fabric 93 g/m², 2.7 oz/yd²  – 1K twill cloth - sample A4. The material is thick, opaque and compact in the middle.

High quality ultra fine Aero 1K Carbon fabric 93 g/m², 2.7 oz/yd²  – 1K twill cloth - sample A4. The material is thick, opaque and compact in the middle.

It is only an sample of the material, A4 20x30cm / 11.81“x7.87“

Material as per aircraft standards.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 112 g/m², laminate thickness: 0,15 mm, laminate weight: 205 g/m²

If you a interested you can also get sheet by your desired dimensions.

Specification:



Nominal

Tolerance:

Fiber:

Carbon fabric 93 g/m², 2.7 oz/yd²



Fibre description

TORAYCA® T300B 67 tex (1k)



Weight:

93 g/sqm

± 3%

Thickness:

0.14 mm

± 0.03 mm

Weave:

Aero twill



Moisture content

0.5 %



Width:

100 cm



Tensile strength (MPa):

3530



Tensile modulus (GPa)

230



Elongation at break (%)

1.5



Warp – Weft ratio:



Warp

Weft

Fibre description:

1K Carbon fiber

1K Carbon fiber

Thread count (ends/cm)

7.0

7.0

Weight distribution (g/mq)

47

47

Weight distribution (%)

50

50

Yarn number

67 tex

67 tex
