CLM Pro Electric Aramid Fuselage set #114 suitable for wingspan up to 2 meters / 79".

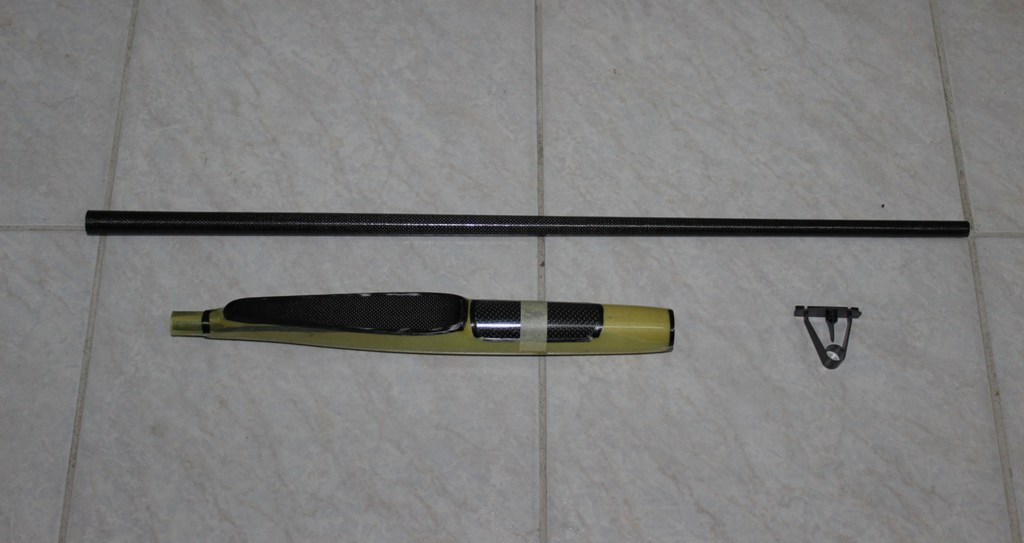

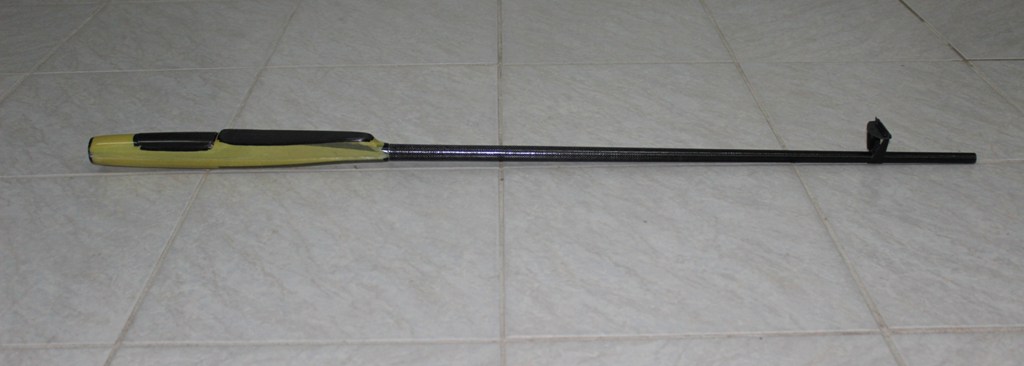

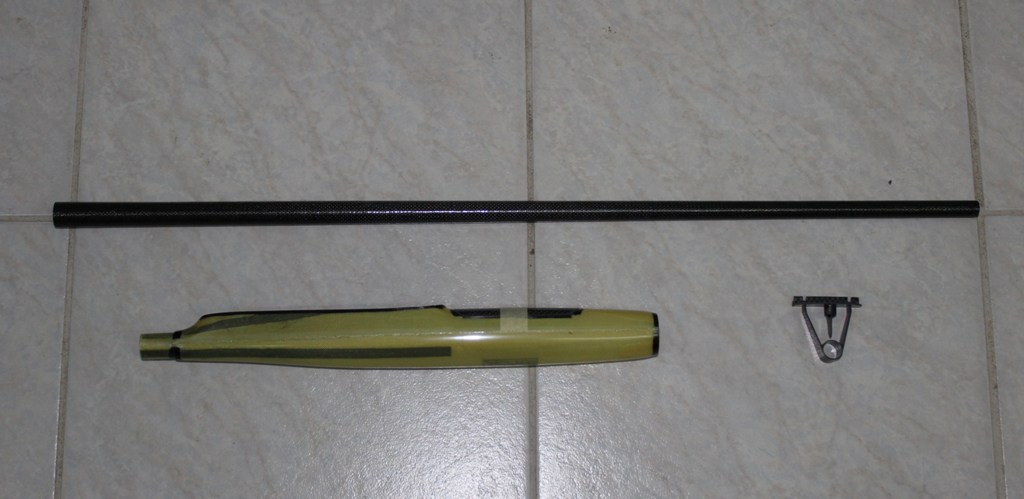

Set contains electric aramid pod, carbon tailboom and V-mount.
Set weighs only 60 grams / 2.11 oz.
Carbon tailboom is 700 mm (27.55") long and weights 22g (0.77 oz).
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm (0.54") and weighs 5.5grams (0.194 oz).
You get few different bolts with it.
Pod:

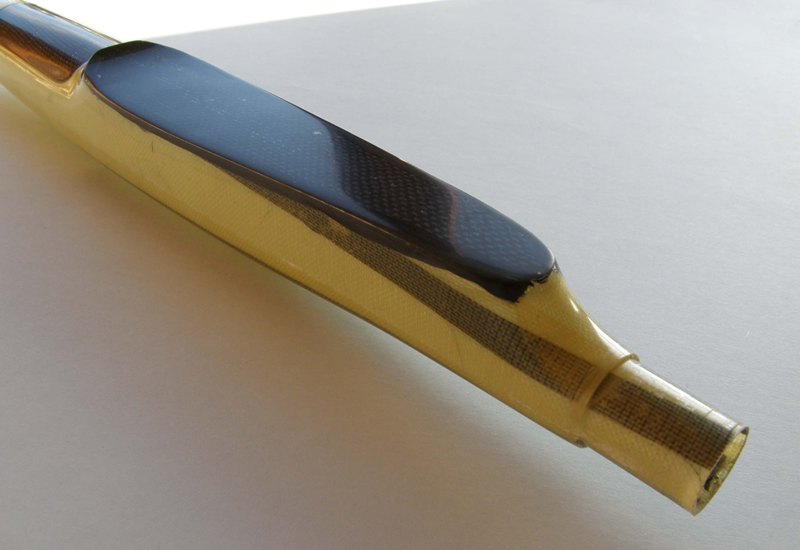

Pod is entirely made of fiber glass and aramid, it is very light and strong, weighs only 32g. 2.4 GHz friendly.
Pod is reinforced with carbon on strategic spots which gives it more strength.
The nose and front part of the pod are reinforced so it can be landed roughly.
Pylon is for AG series airfoil. Pylon is 160 mm (6.29") long, so wings up to 220 mm (8.66") depth but even more can be mounted.

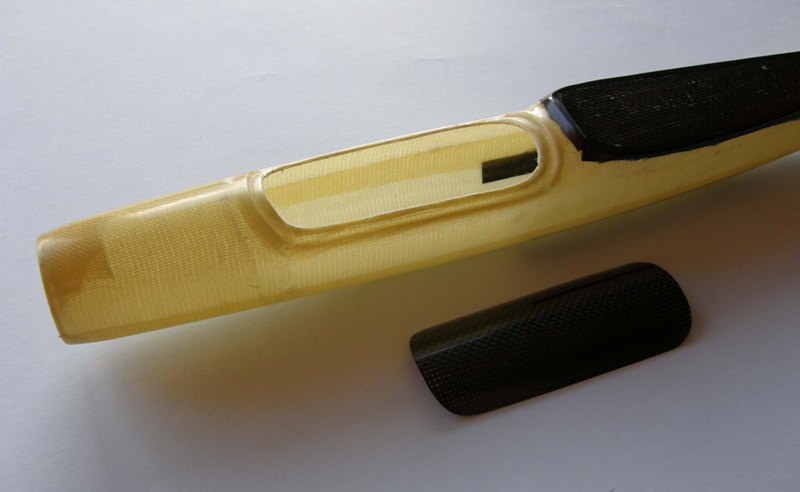

Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
Already instelled firewall. Made for spinner of 30mm (1.18") diameter.
|

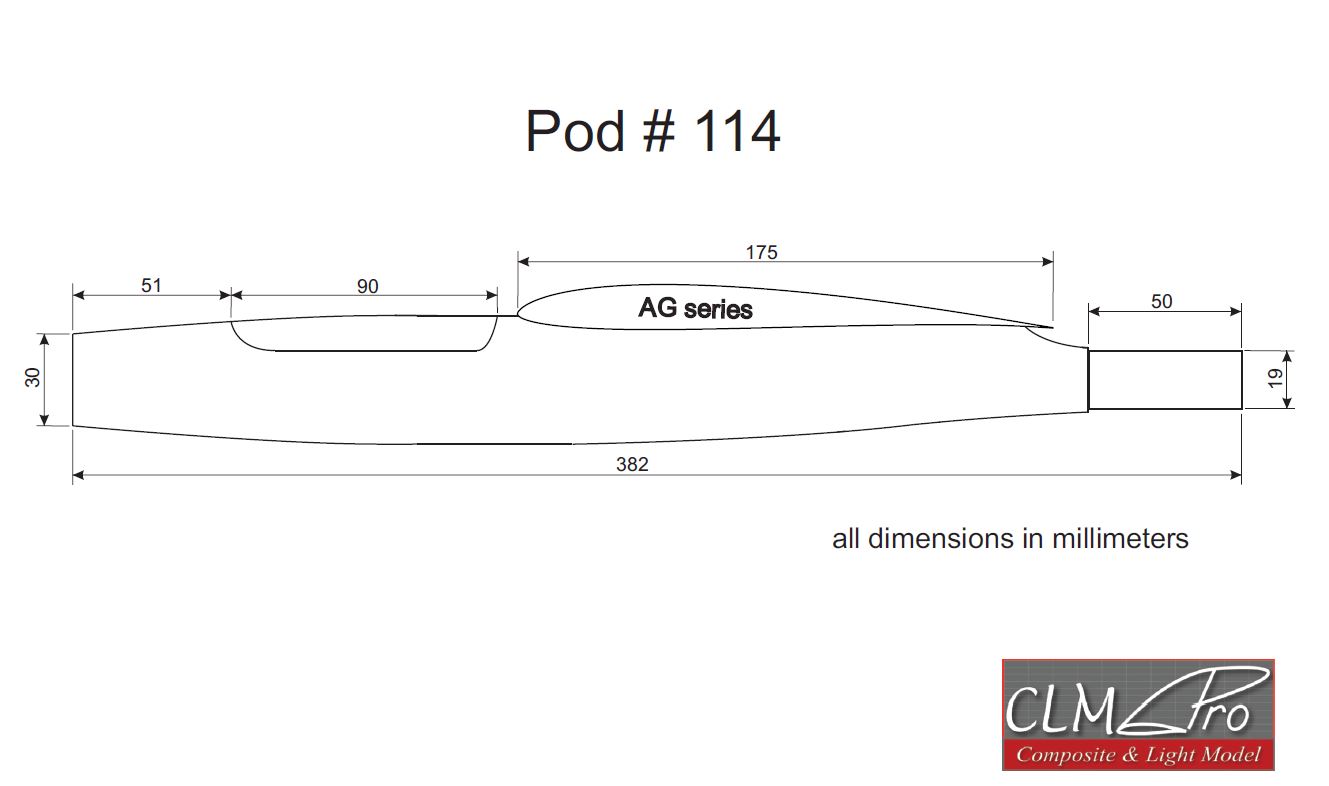

Aramid Electric Pod Specifications |
|
|
Length |
382 mm / 15.03" |
|
Wing depth |
175 mm / 6.88" |
|
Profile |
AG Series |
|
Boom diameter |
19 mm ID / 0.748" |
|
Dihedral angle |
0° |
|
Weight |
32g / 1.12oz |
|
Spinner |
30 mm / 1.18" |
|
Carbon Tailboom |
|
|
Length |
700 mm / 27.55" |
|
Wide End |
19 mm ID / 0.748" |
|
Narrow End |
11.5 mm OD / 0.452" |
|
Weight |
22g / 0.77oz |
|
Wall thickness |
0.5 mm / 0.019" |
|
V-Mount |
|
|
Inside diameter |
13.7 mm / 0.539" |
|
Weight |
5.5 g / 0.19 oz |
|
Height of the tailplane mounting plate |
50 mm / 1.96" |
