Fuselage sets with tails

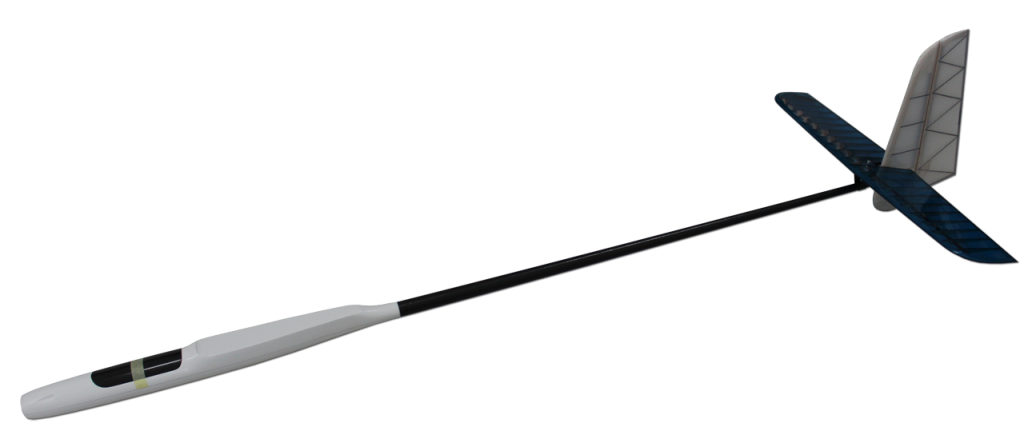

Electric fuselage set #132 with completed tail

CLM-Pro-electric-Fuselage-Set-132-with-tail

Electric fuselage set #132 with completed tail

RatingNot Rated Yet
Base price $335.00
Base price with tax
Sales price $318.25
Sales price without tax $318.25
Discount $16.75
ManufacturerCLM Pro
Description

CLM Pro electric fuselage set #132 with tail set suitable for wingspan up to 4 meters / 157". Set contains kevlar-aramid pod, carbon tailboom and V-mount. 2.4 GHz friendly. ALES, F5J.

CLM Pro electric fuselage set #132 with tail set suitable for wingspan up to 4 meters / 157". Set contains kevlar-aramid pod, carbon tailboom and V-mount. 2.4 GHz friendly. ALES, F5J.

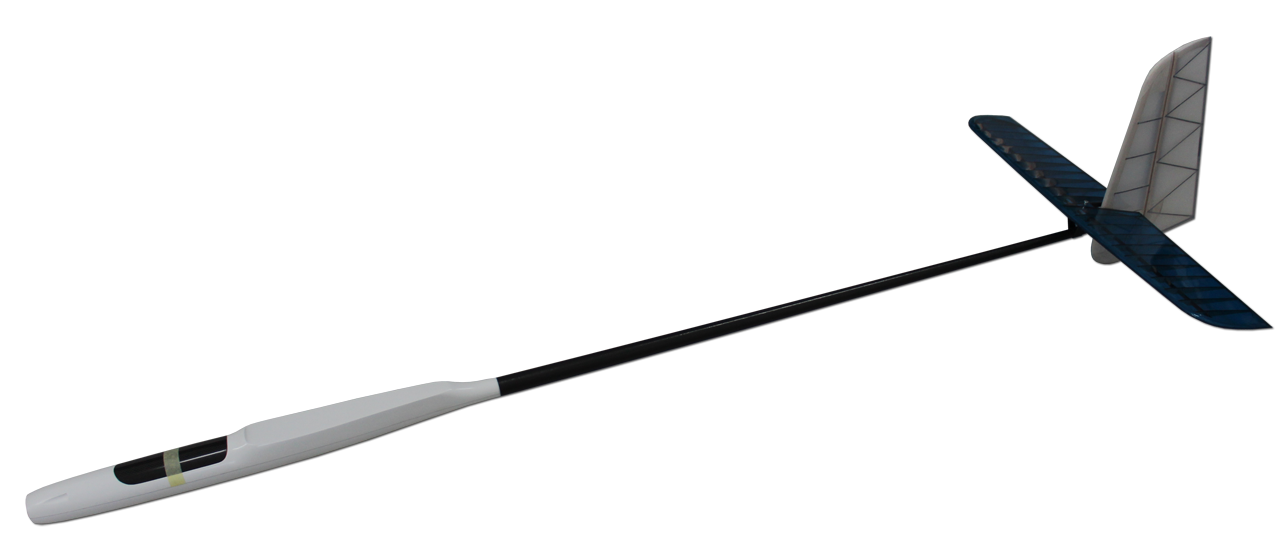

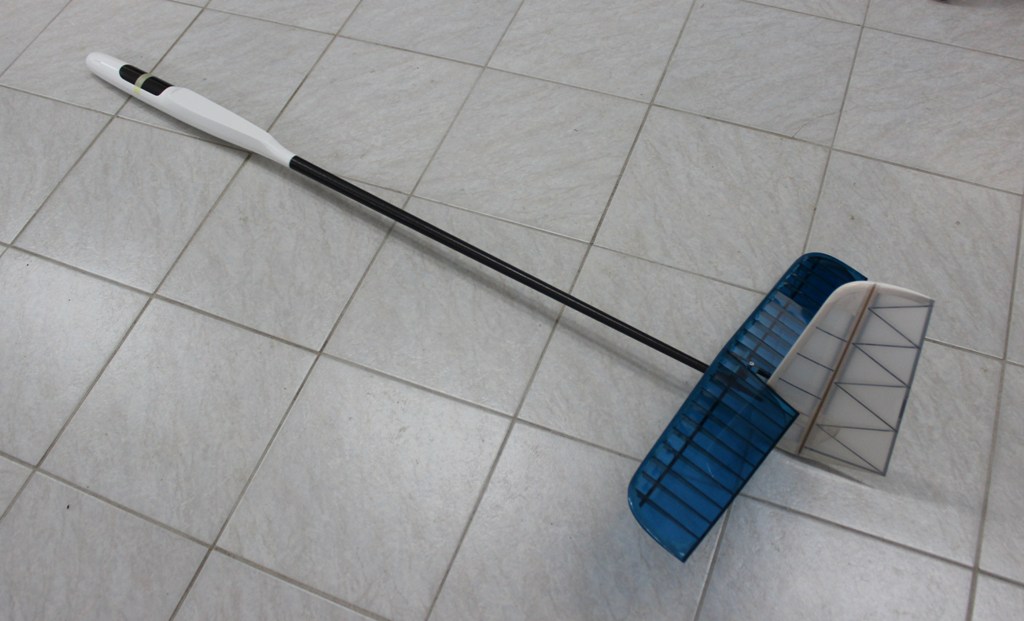

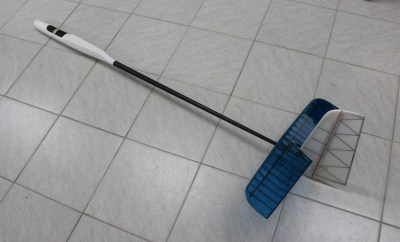

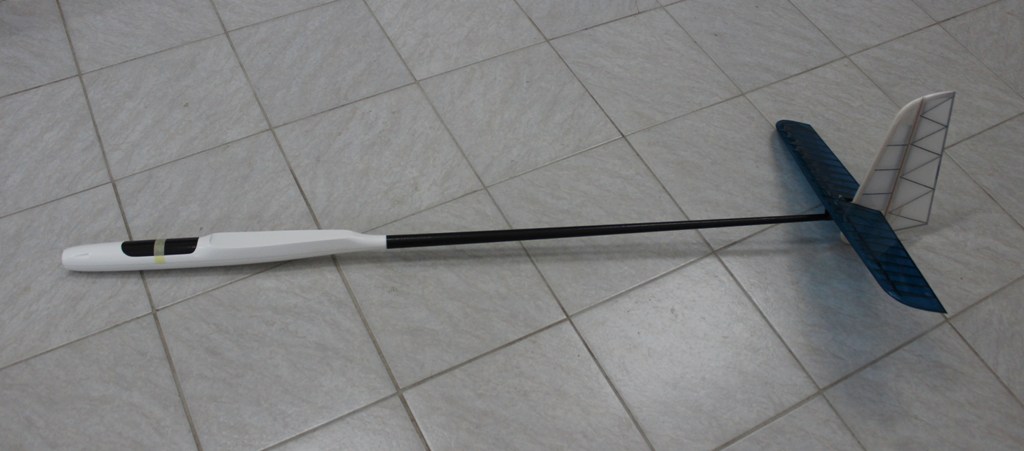

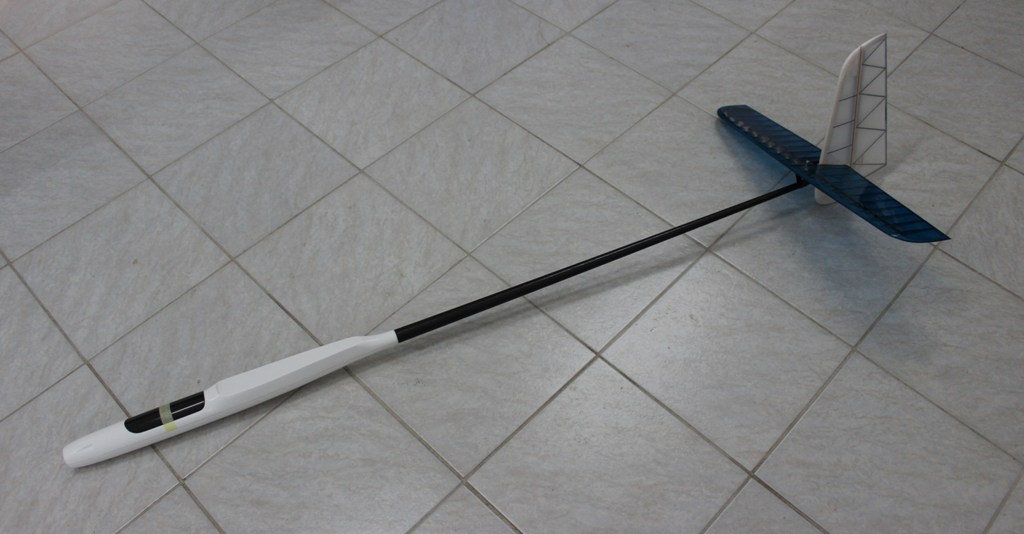

Set contains electric kevlar-aramid pod, carbon tailboom, V-Mount and completed tail.

Carbon tailboom is 950 mm / 37.40" long and weights 40g / 1.41 oz.
Carbon tailboom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.

Set weights 280 grams / 9.87 oz.

Electric pod is completely made of composites, mainly aramid, and has carbon fiber reinforcements on strategic spots, so it is 2.4 GHz friendly.
It is strong enough to withstand even the hardcore landing and forces.
Carbon removable canopy is included.
Edges around the canopy are reinforced with carbon.
It also has additional installed air intakes, they can be opened afterwards if necessary.
Already instelled firewall.
Made for spinner of 38mm / 1.50" diameter.
Ideal for home builder, it can be used as replacement pod for other projects.
The final color is white - gelcoat, resistant to UV rays.

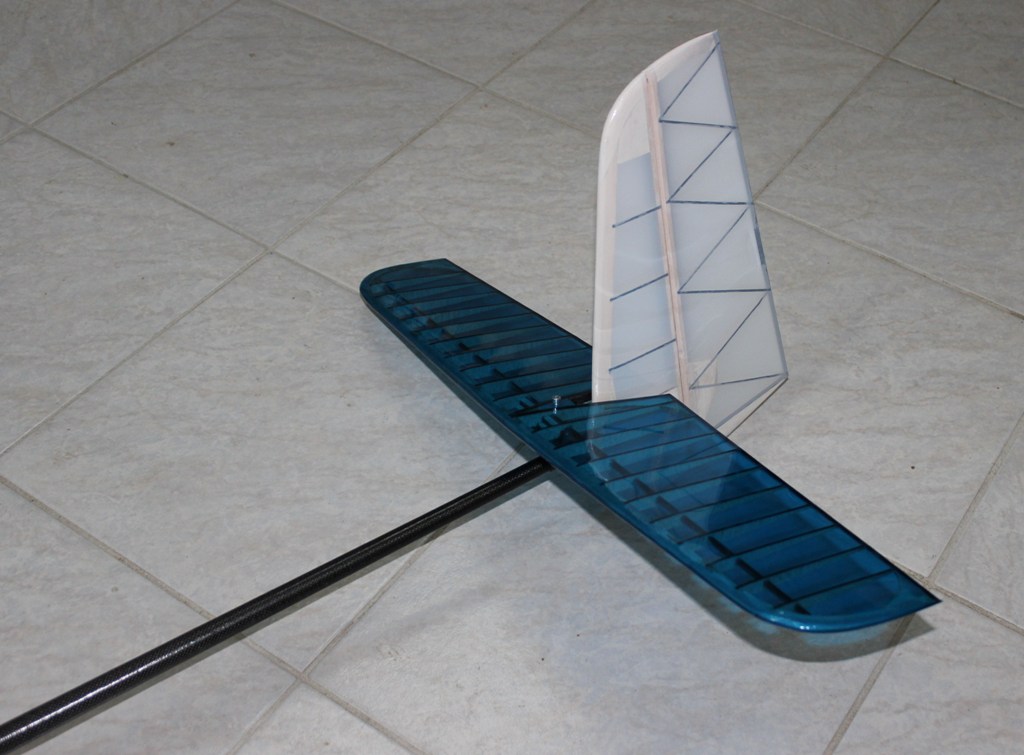

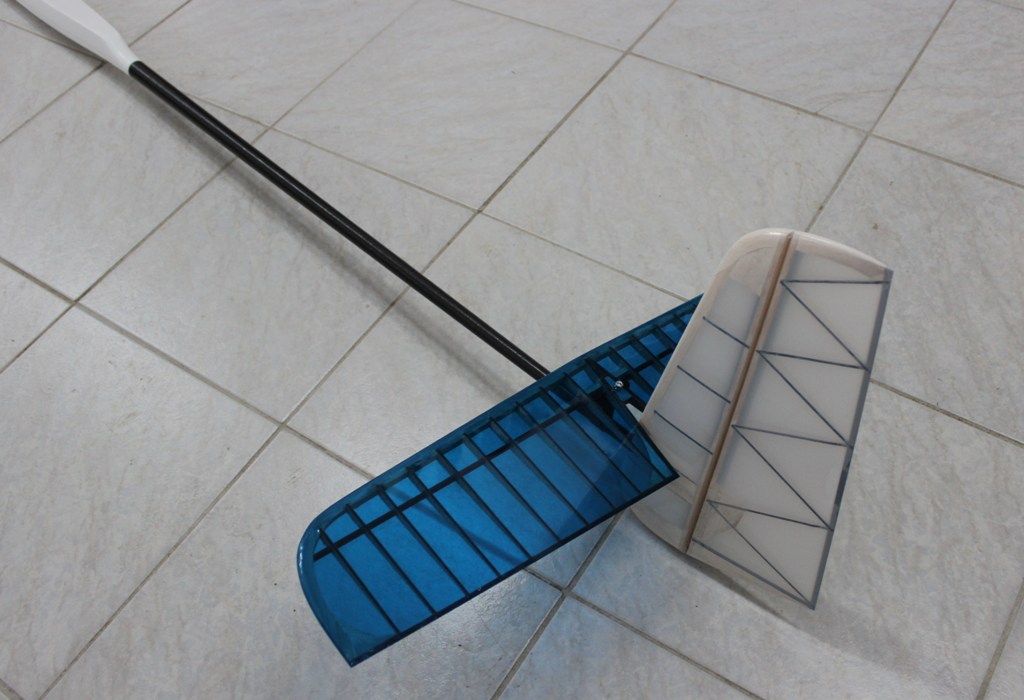

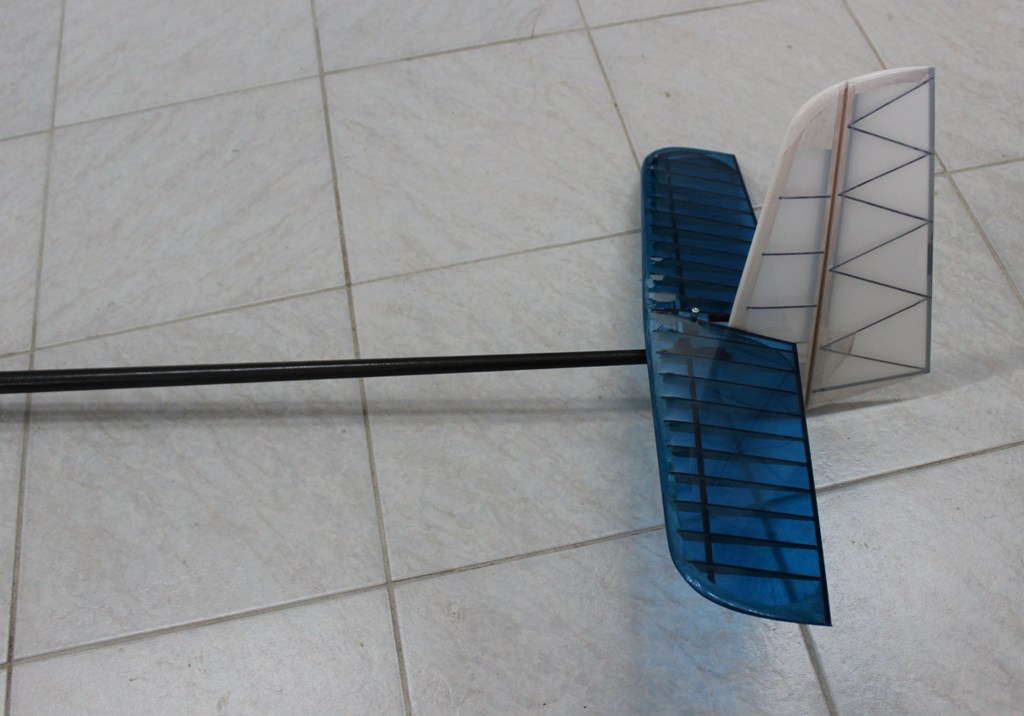

We have a new tail in our offer, built for wingspans from 2.7m up to 3.5m. (106" - 137").

The tail is projected and constructed so it looks very elegant and has excellent flight characteristics.

The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.

Vertical stabilizer is made the same way and it already has a built in kevlar hinge.

Complete tail is covered with Oracover - Light Oralight foil.

The tail is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

Complete tail weight is 80g / 2.82 oz

Note: Your tail can be covered in any color from our Oracover Oralight offer.

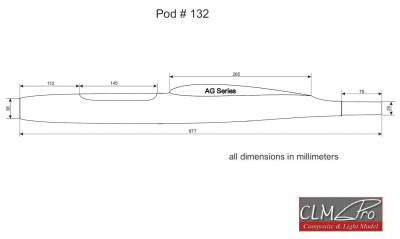

Electric pod #132 specifications

Length

677 mm / 26.65"

Wing depth

265 mm / 10.40"

Profile

AG Series

Boom diameter

25 mm ID / 0.98"

Dihedral angle

Weight

150 g / 5.29 oz

Spinner

38 mm / 1.49"

Motor diameter

max 39 mm / 1.53"

Carbon Tailboom

Length

950 mm / 37.40"

Wide End

25 mm ID / 0.98"

Narrow End

11.5 mm OD / 0.452"

Weight

40 g / 1.41 oz

Wall thickness

0.5 mm / 0.019"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"
