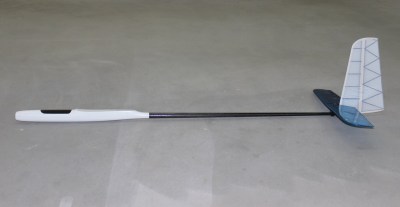

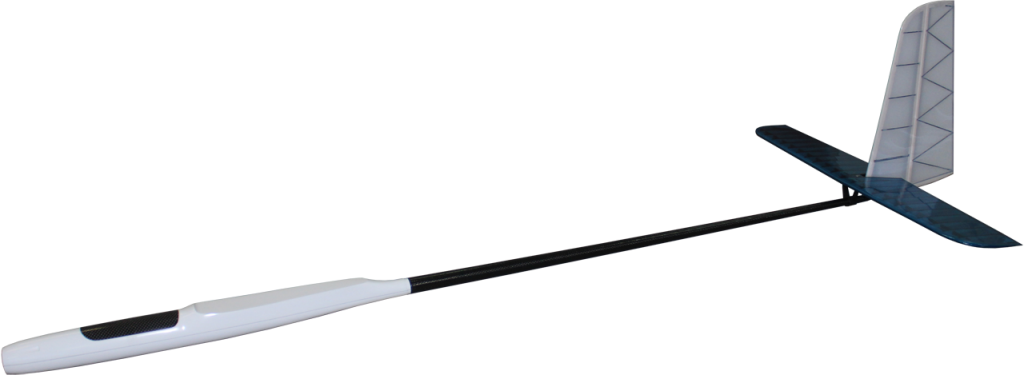

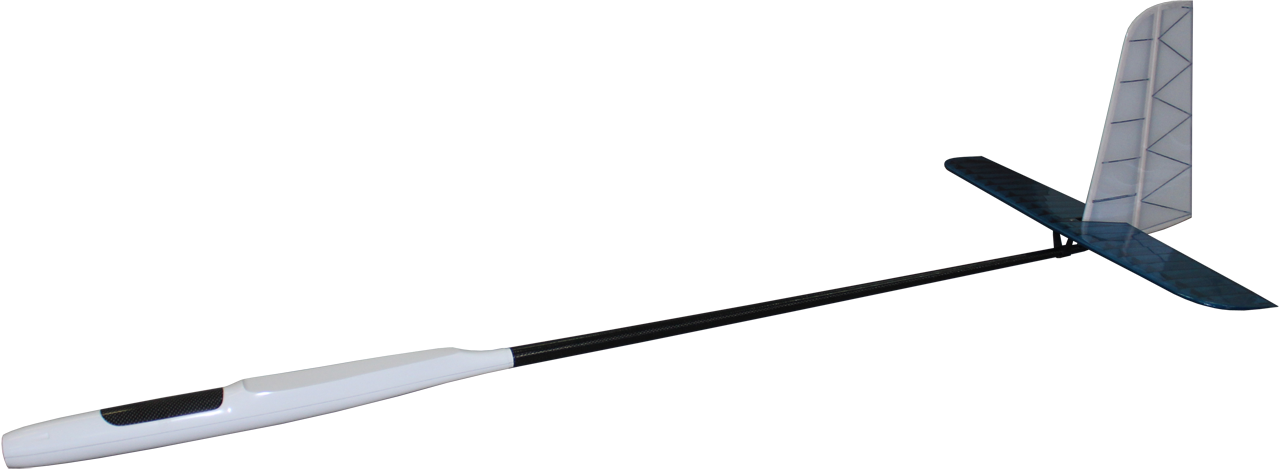

CLM Pro electric fuselage set #132 with new tail set suitable for wingspan up to 4 meters / 157". 2.4 GHz friendly. ALES, F5J.

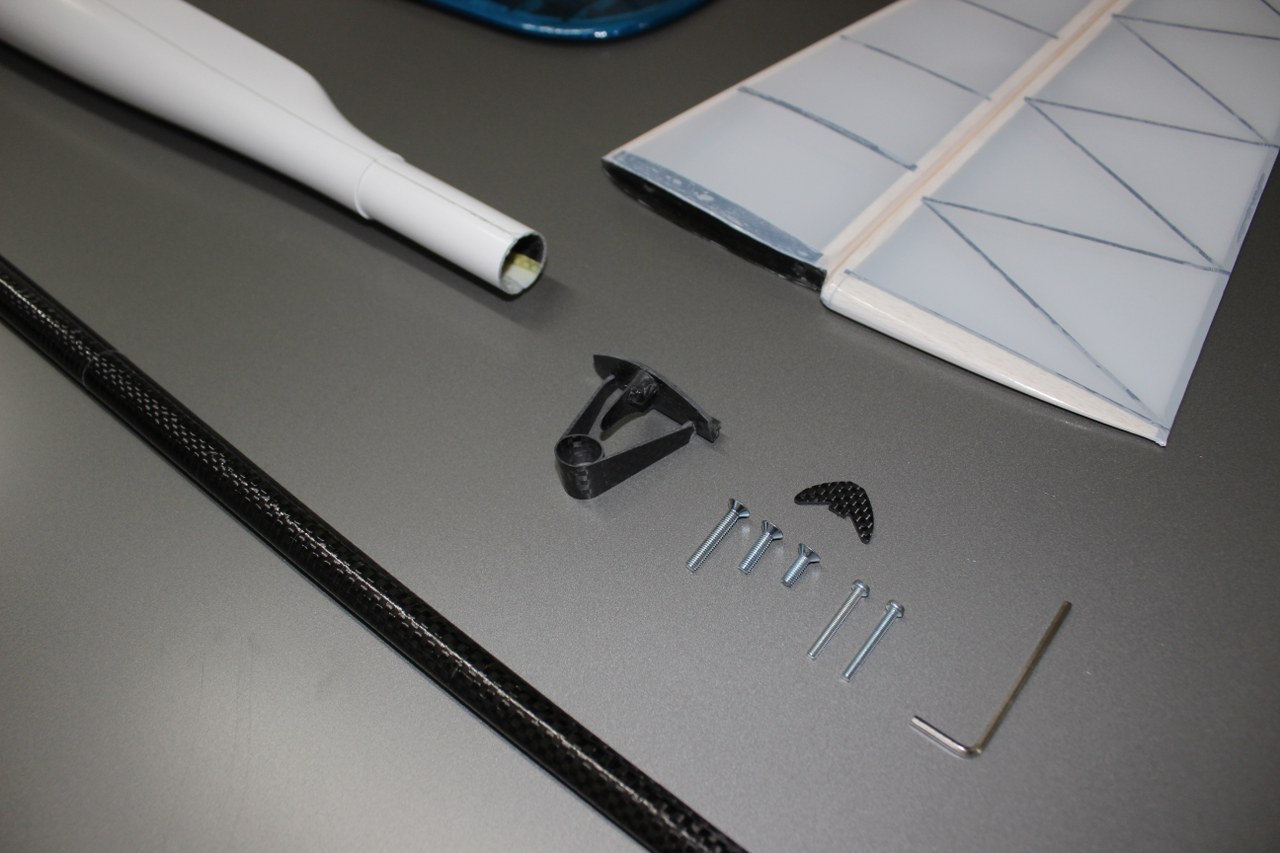

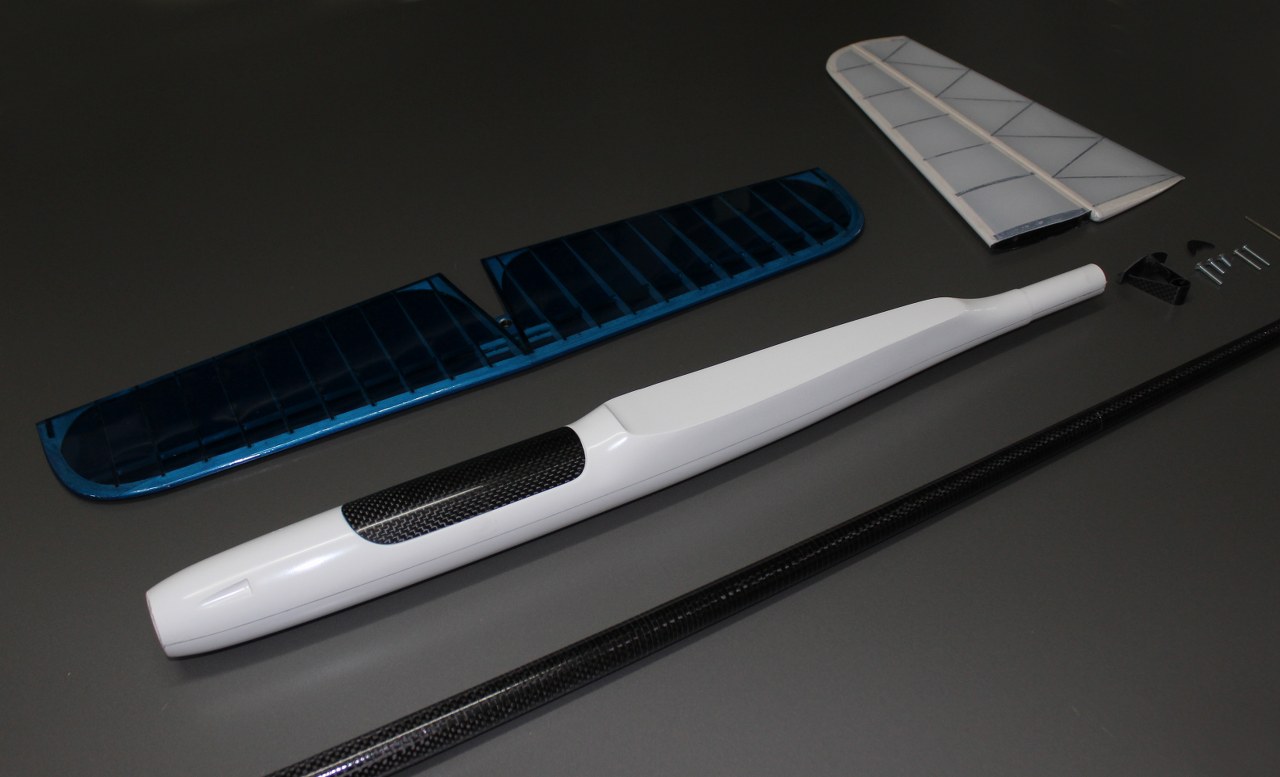

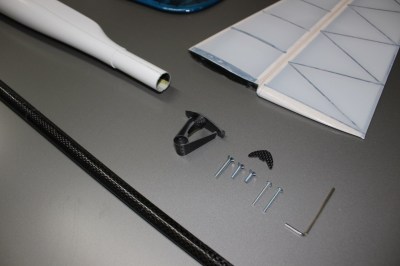

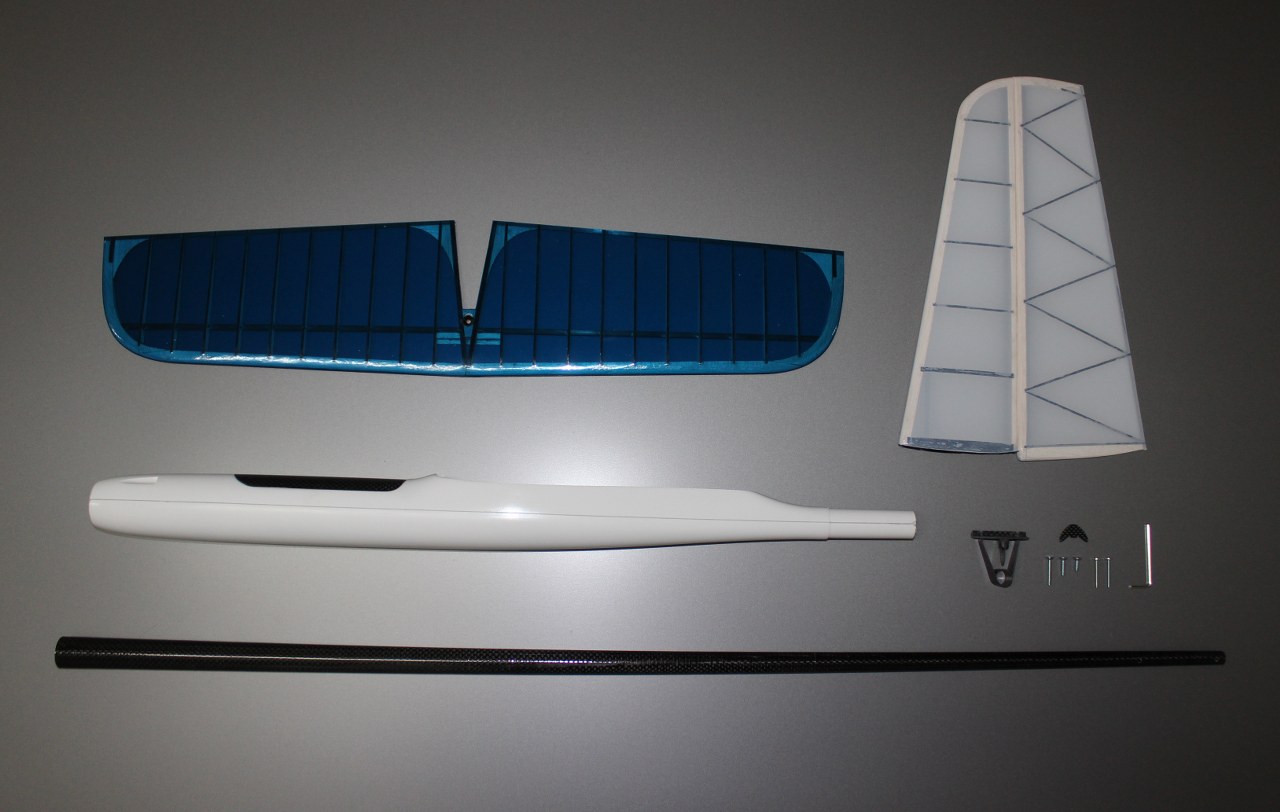

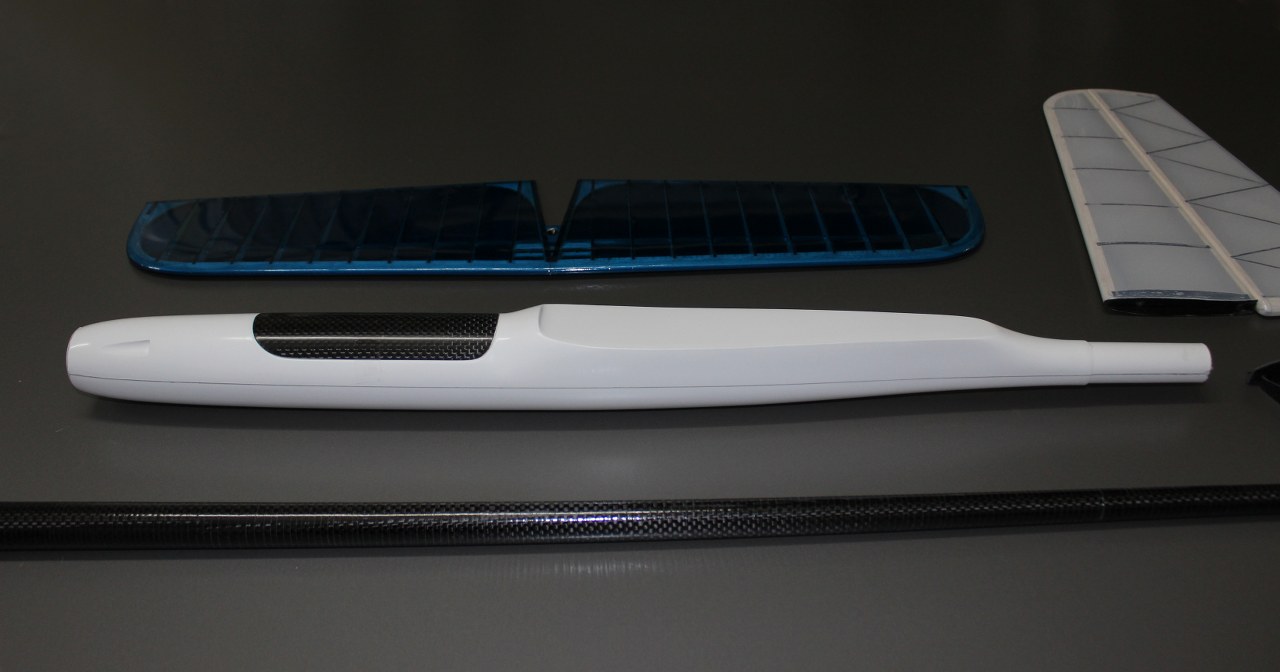

Set contains electric kevlar-aramid pod, carbon tailboom, V-Mount and completed new tail.
Carbon tailboom is 1000 mm / 39.37" long and weights 40g / 1.41 oz.
Carbon tailboom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.
Set weights 260 grams / 9.17 oz.

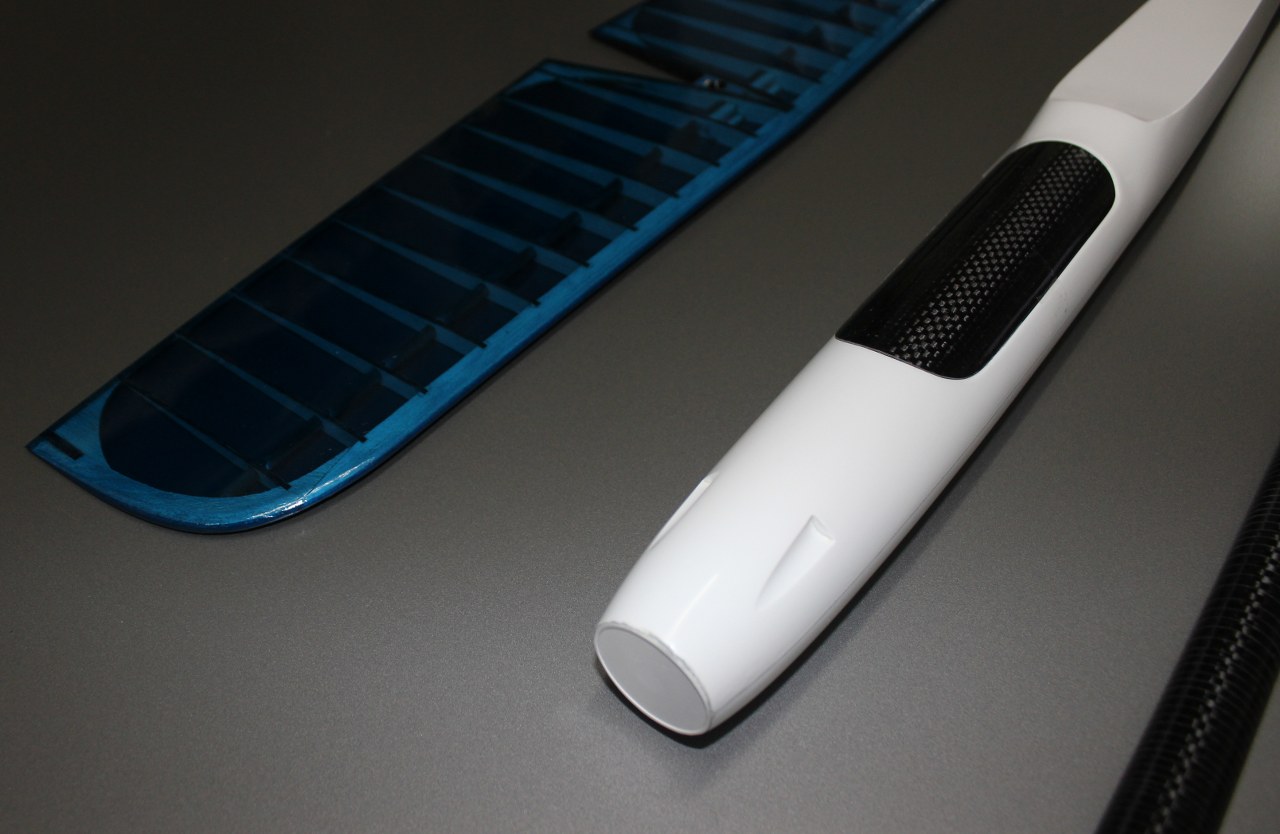

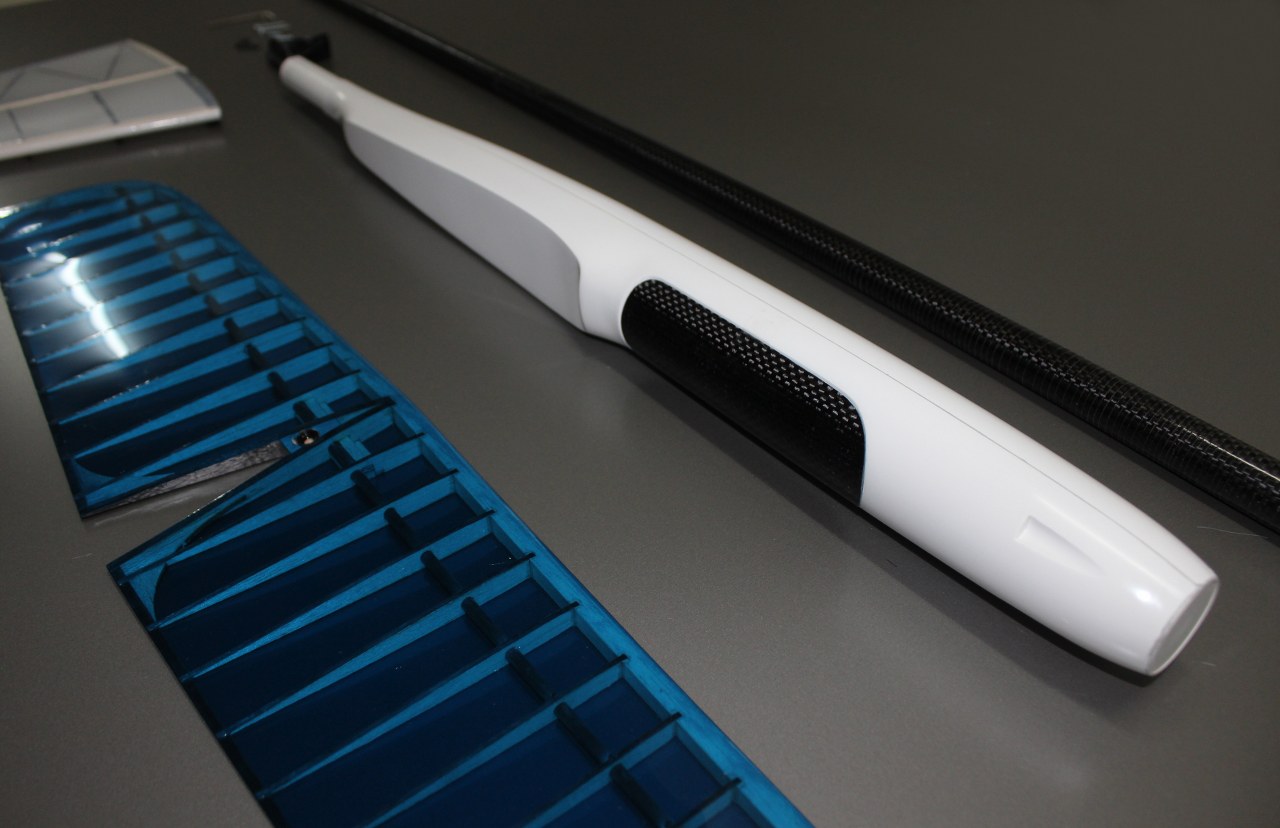

The electric pod is completely made of composites (multiple types of materials), mainly aramid, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is, of course, 2.4 GHz friendly. It is strong enough to withstand even hardcore landings and other forces. Pylon is also reinforced, just like the top of the nose, so it can be landed roughly.
The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon. It is supplied with a removable carbon canopy.
The pylon is 265 mm / 10.43" long i additionally strengthened with multiple carbon types and layers, so the wings may be up to 280 mm / 11.02" in depth, but even larger ones can be mounted. Dihedral angle of pylon is 0°.
It also has additional installed air intakes, they can be opened afterwards if necessary.
Already instelled firewall. Made for spinner of 38 mm / 1.50" diameter.
This pod is suitable for wingspans of up to 4 meters / 157". It is ideal for home builders, as it can be used as a replacement pod for other projects, too.
The standard pod version is in white, i.e. coated with gel coat, which is UV stable and wear-resistant.
NOTE: If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

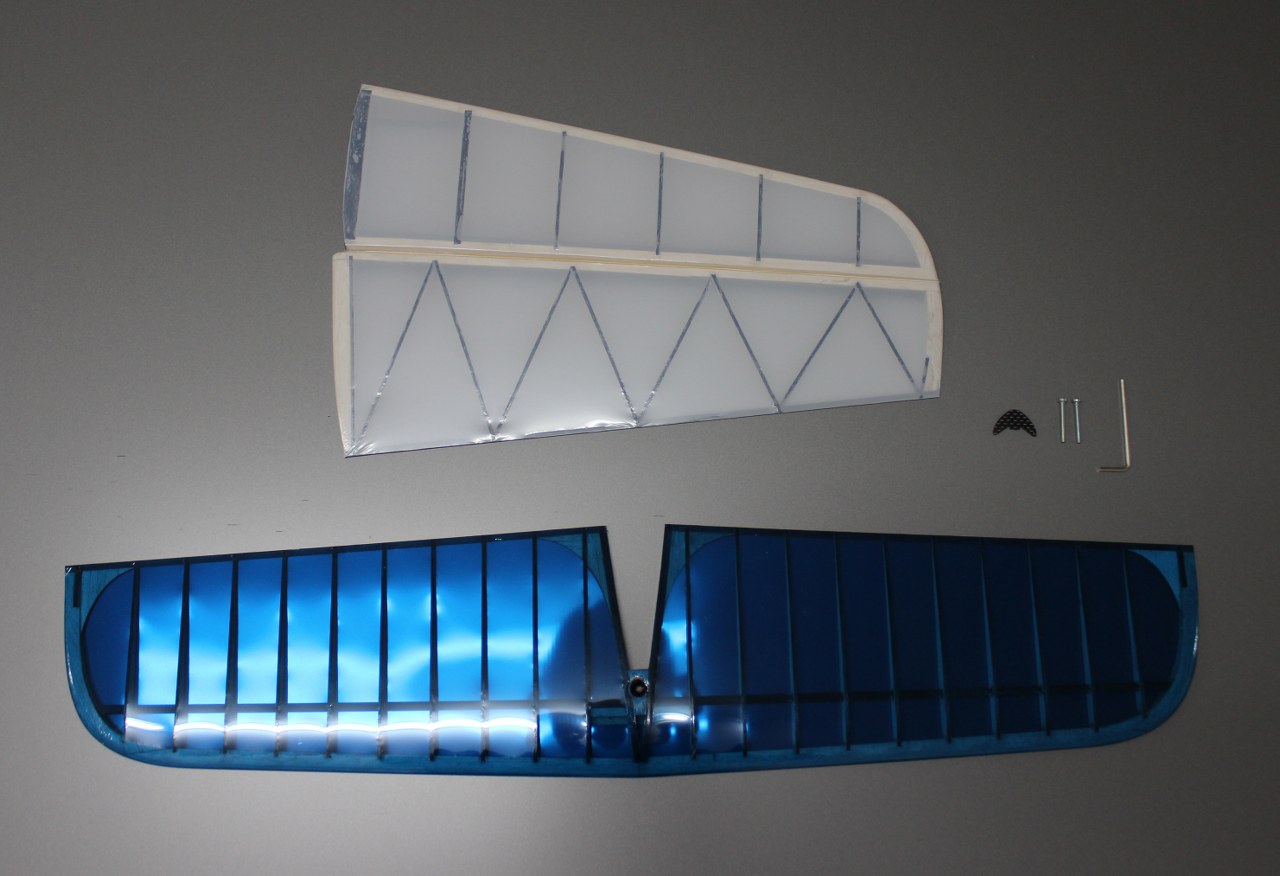

New Tail set:

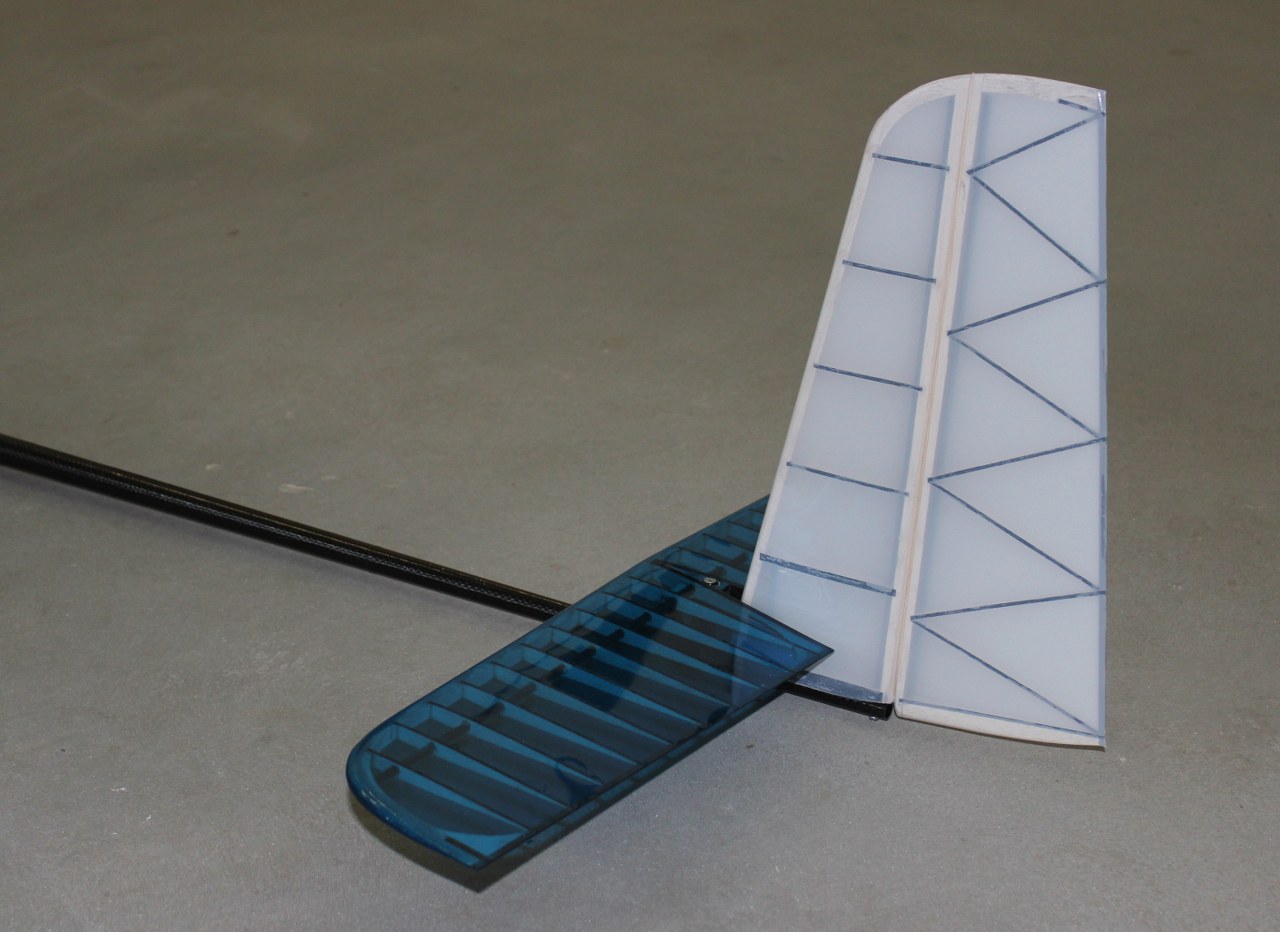

The new tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.
Rudder / Vertical stabilizer is made the same way and it already has a built in kevlar hinge.
The rudder is mounted fairly easily, it only has to be perched onto the tailboom from top and fastened with two screws which are given and already prepared.
It has a built-in slot corresponding to tailboom diameter so it fits perfectly on the tailboom, so only few seconds are needed to mount it firmly.
The elevator is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.
Complete tail is covered with Oracover - Light Oralight foil.
NOTE2: Your tail can be covered in any color from our Oracover Oralight offer.
Tail specifications:
Elevator / horizontal stabilizer:
Weight: 35g / 1.30oz
Rudder / vertical stabilizer:
Weight: 30g / 1.05oz
Complete tail weight is 65g / 2.29 oz
Electric pod #132 specifications |
|
Length |
677 mm / 26.65" |
Wing depth |
265 mm / 10.40" |
Profile |
AG Series |
Boom diameter |
25 mm ID / 0.98" |
Dihedral angle |
0° |
Weight |
150 g / 5.29 oz |
Spinner |
38 mm / 1.49" |
Motor diameter |
max 39 mm / 1.53" |
Carbon Tailboom |
|
Length |
1000 mm / 37.40" |
Wide End |
25 mm ID / 0.98" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
40 g / 1.41 oz |
Wall thickness |
0.65 mm / 0.025" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
Tail set | |
Elevator / horizontal stabilizer | 35g / 1.30oz |
Rudder / vertical stabilizer | 30g / 1.05oz |
