Fuselage sets with tails

Electric fuselage set #130 with completed tail

CLM-Pro-electric-set-130-rep

Electric fuselage set #130 with completed tail

Base price $389.00
Base price with tax
Sales price $369.55
Discount $-19.45
ManufacturerCLM Pro
Description

The newest CLM Pro electric fuselage set #130 with completed tail set. Suitable for wingspan of up to 3.6m / 142". Made of fine aramid and carbon fiber. 2.4 GHz friendly. ALES ,F5J, F3J.

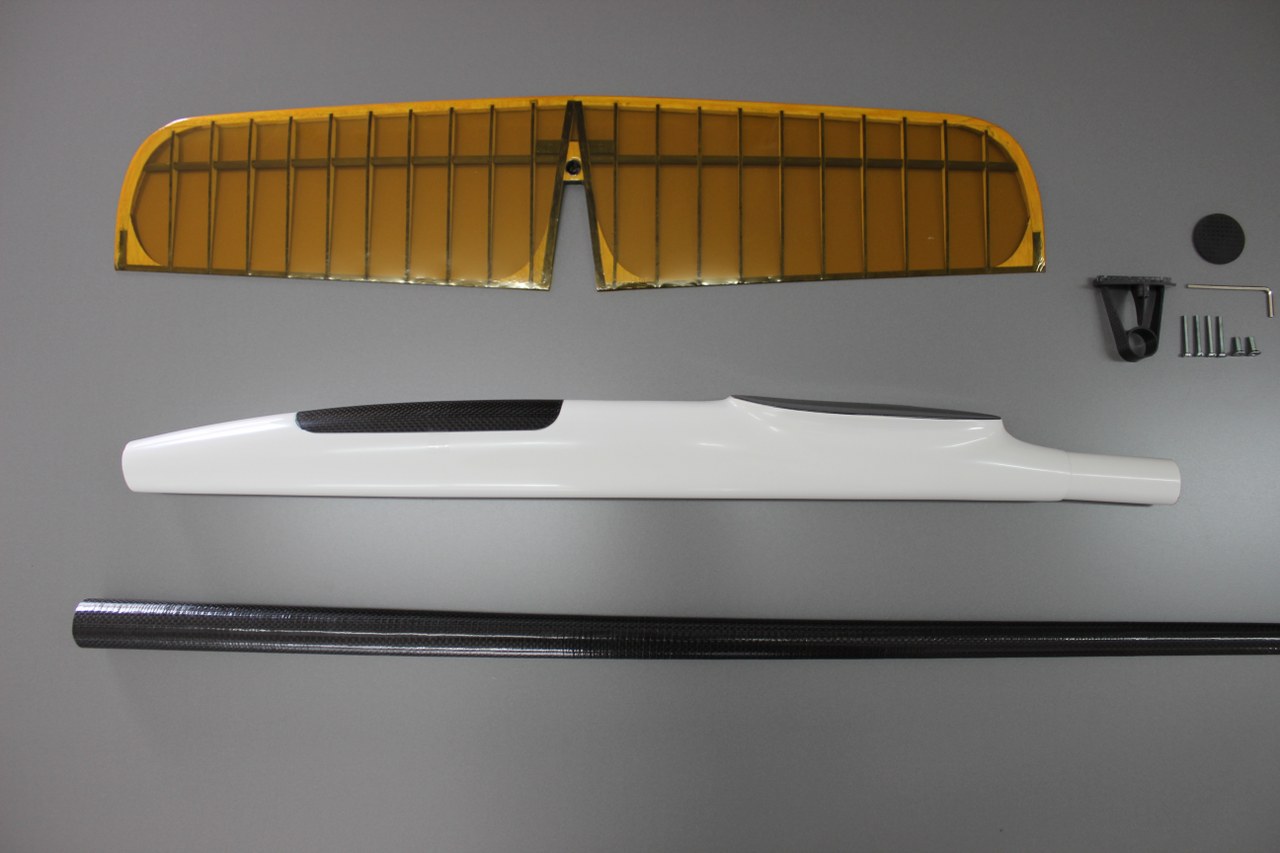

Fuselage set contains electric pod #130, carbon tailboom, V-mount and completed tail set.

Set weights 280 grams / 9.87 oz.

Carbon tailboom:
Carbon tailboom is 1000 mm / 39.37" long and weighs 65g / 2.29 oz.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

V-Mount:
Carbon V-mount has ID of 18 mm / 0.70" and weights 6 grams / 0.21 oz.
You get few different bolts with it.

Pod:
Electric pod is designed so that it has beautiful aerodynamic lines, is easy on the eyes and, most importantly, possesses excellent flight characteristics. The pod is large and strong enough to easily carry 3.6-meter / 142" wings. The fuselage set #130 can be used for different purposes in various categories, such as F5JF3JALES and other homebuild projects or replacements for a pre-existing model.

The electric pod is completely made of composites (multiple types of materials), mainly aramid, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. Aramid allows the model to be rough landed as it gives it elasticity, it also makes the model 2.4gHz friendy, while carbon fiber gives its great stiffness and minimum weight. It is strong enough to withstand even hardcore landings and other forces. The pylon is also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

The pylon is 168 mm / 6.61" long and is additionally reinforced with multiple carbon types and layers, wings with up to 260 mm / 10.23" chord depth and even larger ones can be mounted.

This pod is suitable for wingspans of up to 3.6 meters / 142". It is ideal for home builders, as it can be used as a replacement pod for other projects, too.

The standard pod version is in white, i.e. coated with gel coat, which is UV stable and wear-resistant.


Tail set:
The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.

Rudder / Vertical stabilizer is made the same way and it already has a built in kevlar hinge.

The rudder is mounted fairly easily, it only has to be perched onto the tailboom from top and fastened with two screws which are given and already prepared.

It has a built-in slot corresponding to tailboom diameter so it fits perfectly on the tailboom, so only few seconds are needed to mount it firmly.

The elevator is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

Complete tail is covered with Oracover - Light Oralight foil.

Tail specifications:

Elevator / horizontal stabilizer:
Weight: 32g / 1.12oz

Rudder / vertical stabilizer:
Weight: 34g / 1.19oz

NOTE:
If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.



Pod #130 specifications

Length

640 mm / 25.19"

Wing depth

265 mm / 10.40"

Profile

AG series

Boom diameter

29 mm ID / 1.14"

Dihedral angle

2° on each side pylon

Weight

145 g / 5.11 oz

Spinner

32 mm / 1.26"

Carbon Tailboom

Length

1000 mm / 39.37"

Wide End

29 mm ID / 1.14"

Narrow End

15 mm OD / 0.59"

Weight

65 g / 2.29 oz

Wall thickness

0.65 mm / 0.025"

V-Mount

Inside diameter

18 mm / 0.70"

Weight

6g / 0.21 oz

Height of the tailplane mounting plate

50 mm / 1.96"

Tail set

Elevator / horizontal stabilizer:

32g / 1.12oz

Rudder / vertical stabilizer

34g / 1.19oz





Reviews

Arno Sunday, 20 November 2022
This fuselage is intended to install a supra wing Elevator / horizontal stabilizer cover wiyh Oralight white. Rudder / vertical stabilize cover with Oralight red. Merci
