Fuselage pods / E-pods

Pod #125

clm-pro-pod125

Pod #125

RatingNot Rated Yet
Base price $87.00
Base price with tax
Sales price $82.65
Sales price without tax $82.65
Discount $4.35
ManufacturerCLM Pro
Description

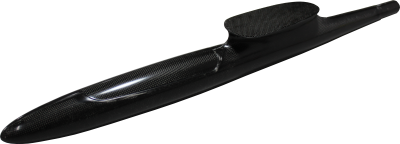

CLM Pro pod #125. Suitable for wingspan of up to 3 m / 118". Made of fine aero glass fabric. 2.4 GHz friendly. Ideal for home builder, it can be used as replacement pod for Bubble Dancer.

Pod is entirely made of fiber glass and carbon, it is very light and strong. 2.4 GHz friendly.
Pylon is for AG series airfoil. Pylon is thin and carefully engineered to reduce interference drag.
Dimensions of Pylon are 136x57mm (5.35"x2.24"). It is designed so the wing is easily attachable from below. Dihedral is 2.5° on each side.
Pylon is 136 mm (5.35") long, so wings up to 220 mm (8.66") depth but even more can be mounted.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
Pod is reinforced with carbon on strategic spots which gives it more strength.
This Pod is suitable for wingspan up to 3 meter (118.11"). Ideal for home builder, it can be used as replacement pod for Bubble Dancer.
The final color is white - gelcoat, resistant to UV rays.
Boom suitable for this Pod: #208, #213

NOTE: The Pod is designed so that you can make an electric version. Since the nose is quite reinforced, it is only necessary to cut the nose on specified length, put firewall and you get a diameter of 30 to 36 mm for a spinner.

Pod Specifications

Length

575 mm / 22.63"

Wing depth

220 mm / 8.66"

Profile

AG Series

Boom diameter

23 mm ID / 0.90"

Dihedral angle

2.5°

Weight

105g / 3.70 oz

Spinner

30-36 mm / 1.18"-1.41"
