Fuselage Sets

Carbon fuselage set #130

CLM-Pro-carbon-fuselage-set

Carbon fuselage set #130

RatingNot Rated Yet
Base price $270.00
Base price with tax
Sales price $256.50
Discount $-13.50
ManufacturerCLM Pro
Description

The newest CLM Pro carbon fuselage set #130. Suitable for wingspan of up to 3.6m / 142". Pod is made of fine 1K aero carbon fiber material. ALES, F5J, F3J

The newest CLM Pro carbon fuselage set #130. Suitable for wingspan of up to 3.6m / 142". Pod is made of fine 1K aero carbon fiber material. ALES, F5J, F3J.

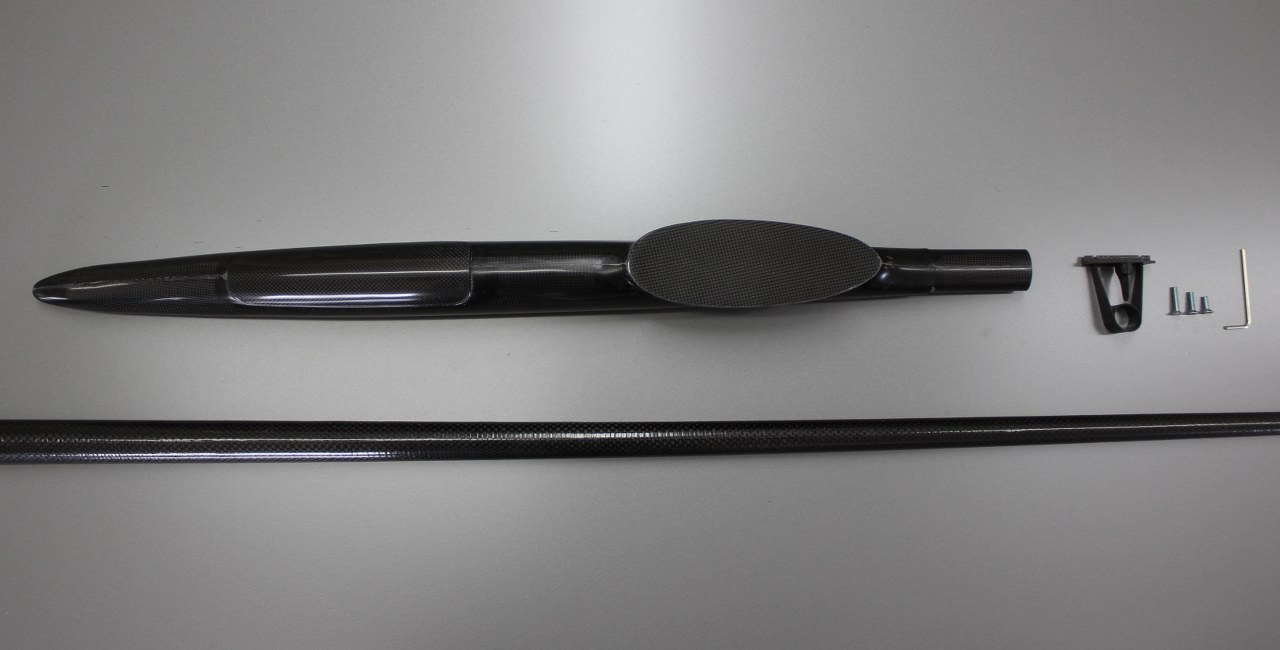

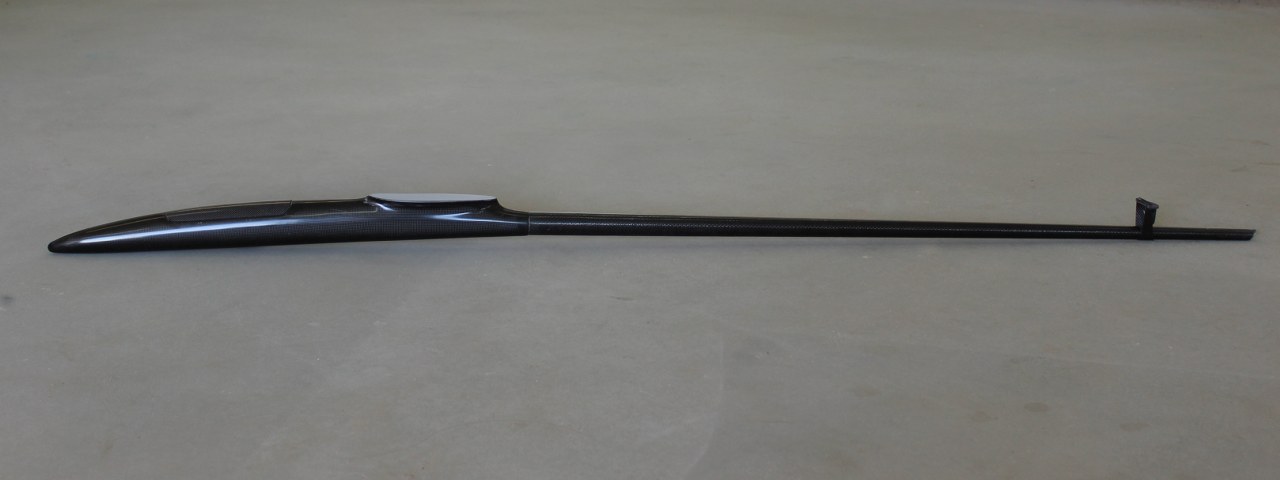

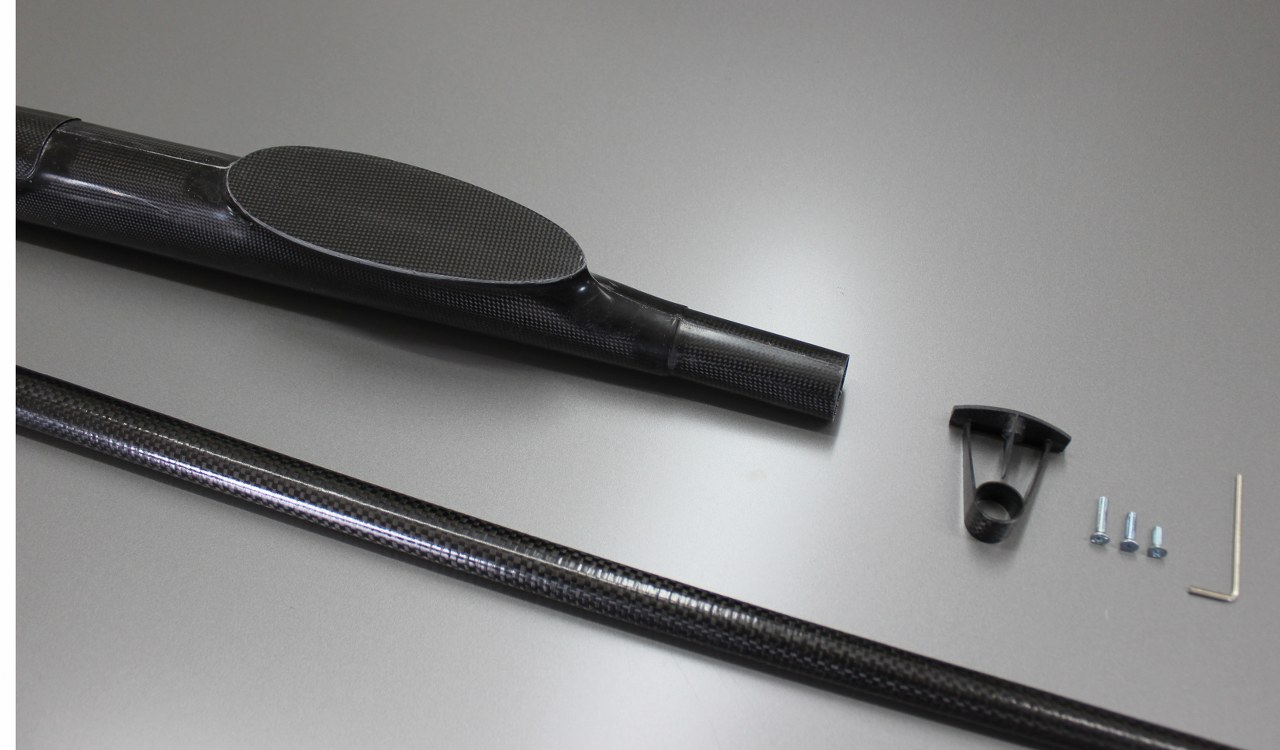

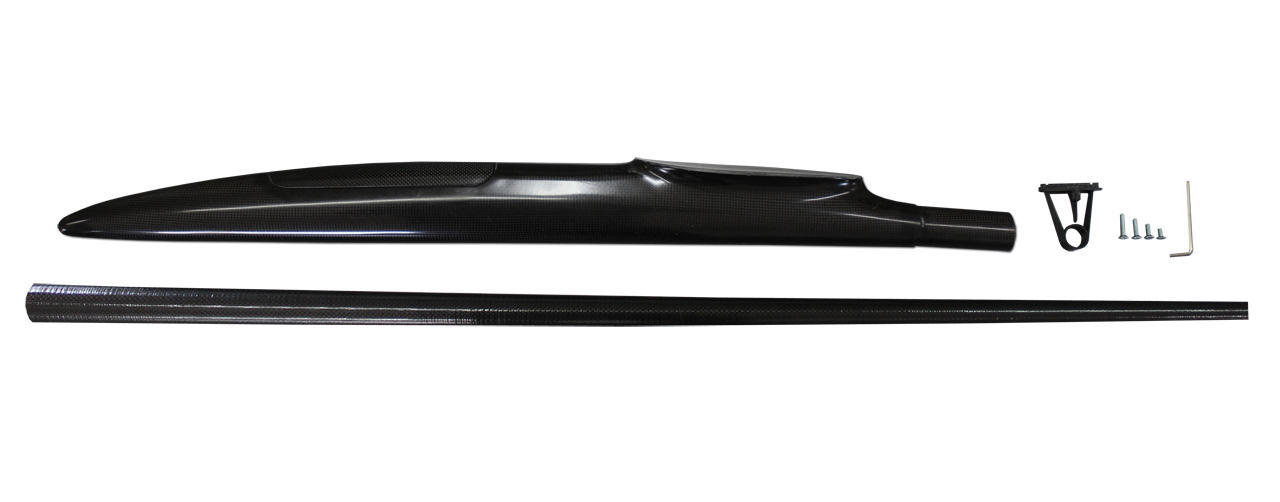

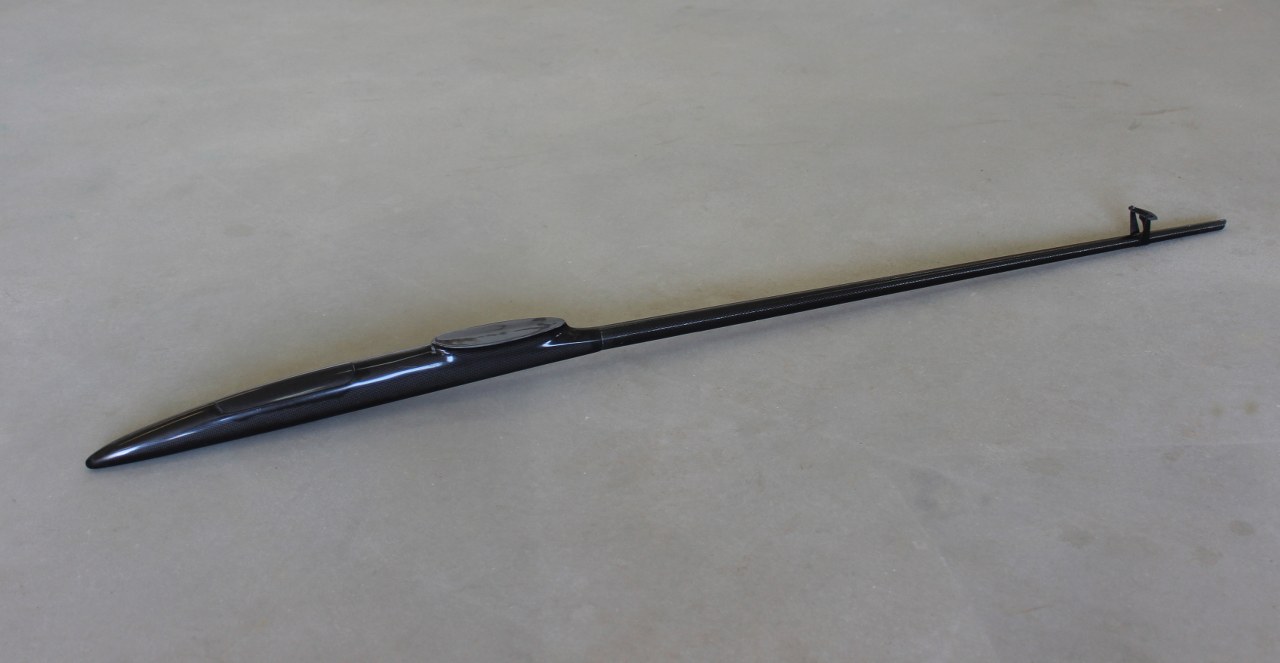

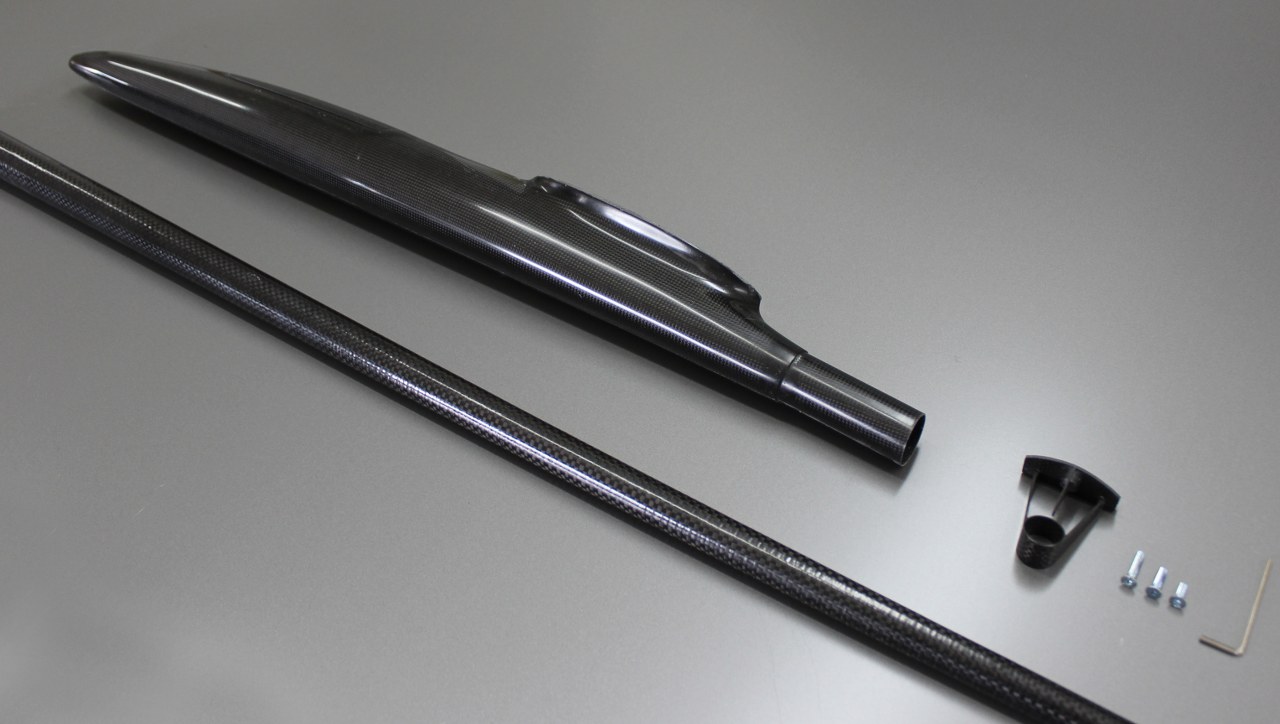

Fuselage set contains carbon pod #130, carbon tailboom, and V-mount.

Set weights 153 grams / 5.39 oz.

Carbon tailboom is 1000 mm / 39.37" long and weighs 55g / 1.94 oz.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

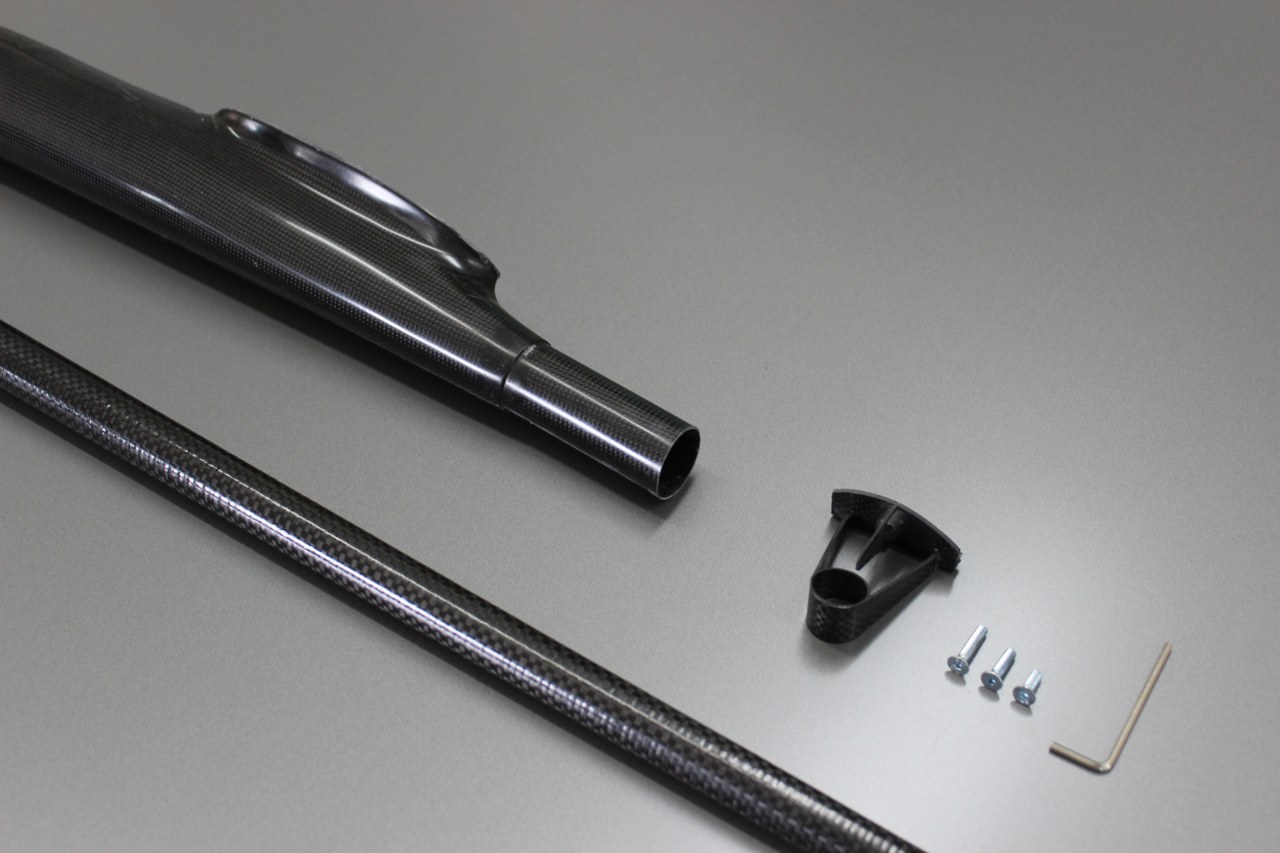

Carbon V-mount has ID of 18 mm / 0.70" and weights 6 grams / 0.21 oz.
You get few different bolts with it.

This pod is designed so that it has beautiful aerodynamic lines, is easy on the eyes and, most importantly, possesses excellent flight characteristics. The pod is large and strong enough to easily carry 3.6-meter / 142" wings. The fuselage set #130 can be used for different purposes in various categories, such as F5JF3JALES and other homebuild projects or replacements for a pre-existing model.

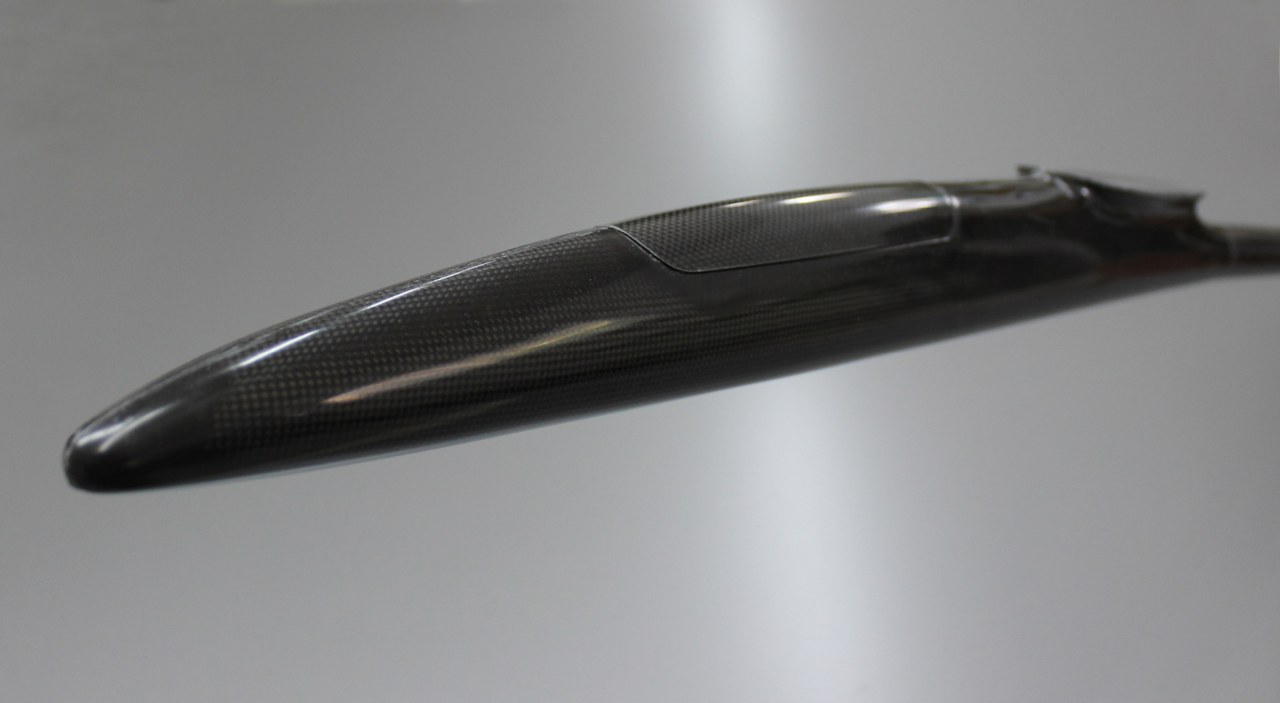

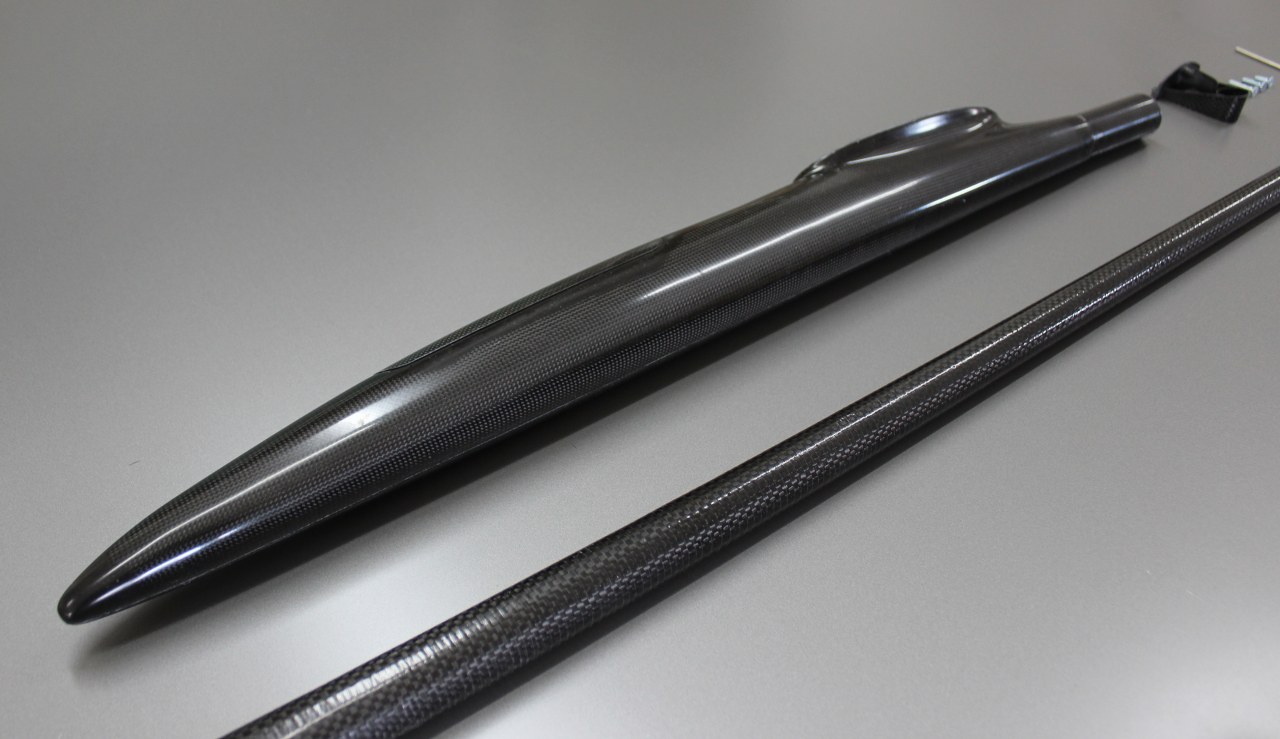

The carbon pod is completely made of composites (multiple types of materials). It has been made of fine 1K Aero carbon fiber material, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is strong enough to withstand even hardcore landings and other forces. The part where the tow hook is, the pylon are also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

The pylon is 168 mm / 6.61" long and is additionally reinforced with multiple carbon types and layers, wings with up to 260 mm / 10.23" chord depth and even larger ones can be mounted.

This pod is suitable for wingspans of up to 3.6 meters / 142". It is ideal for home builders, as it can be used as a replacement pod for other projects, too.

NOTE:
If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

Carbon pod #130 specifications

Length

690 mm / 27.16"

Wing depth

265 mm / 10.40"

Profile

AG Series

Boom diameter

29 mm ID / 1.14"

Dihedral angle

2° on each side

Weight

92 g / 3.24 oz

Spinner

32 mm / 1.26"

Carbon Tailboom

Length

1000 mm / 39.37"

Wide End

29 mm ID / 1.14"

Narrow End

15 mm OD / 0.59"

Weight

55 g / 1.94 oz

Wall thickness

0.65 mm / 0.025"

V-Mount

Inside diameter

18 mm / 0.70"

Weight

6g / 0.21 oz

Height of the tailplane mounting plate

50 mm / 1.96"
