NEW electric fuselage set #136 carbon

set-136-karbon-predlozak-web1

NEW electric fuselage set #136 carbon

RatingNot Rated Yet
Base price $299.00
Base price with tax
Sales price $254.15
Sales price without tax $254.15
Discount $-44.85
ManufacturerCLM Pro
Description

The newest CLM Pro pure carbon 1K electric fuselage set #136 is suitable for wingspan up to 4 meters / 158". Set contains pure carbon electric pod, carbon tailboom and V-mount. Made of fine 1K Aero carbon fiber material. Set weighs only 125 grams / 4.40 oz. ALES, F5J.

Electric fuselage set #136 carbon is the newest and lightest fuselage set we have so far produced at CLM Pro. Made of fine 1K Aero carbon fiber material.

This electric carbon fuselage set is designed so that it has beautiful aerodynamic lines, it is slightly curved from the top of the pod to the end of the tailboom, so it looks very elegant and sophisticated when flying, is easy on the eyes and, most importantly, possesses excellent flight characteristics. The latest improvement is that it is made from two parts, which means it is easier to maneuver and change components of competitive models even during competitions. The pod is large and strong enough to easily carry 4-meter / 158" wings. The fuselage set #136 can be used for various purposes in various categories, such as F5J, ALES and other homebuild projects or replacements for a pre-existing model.

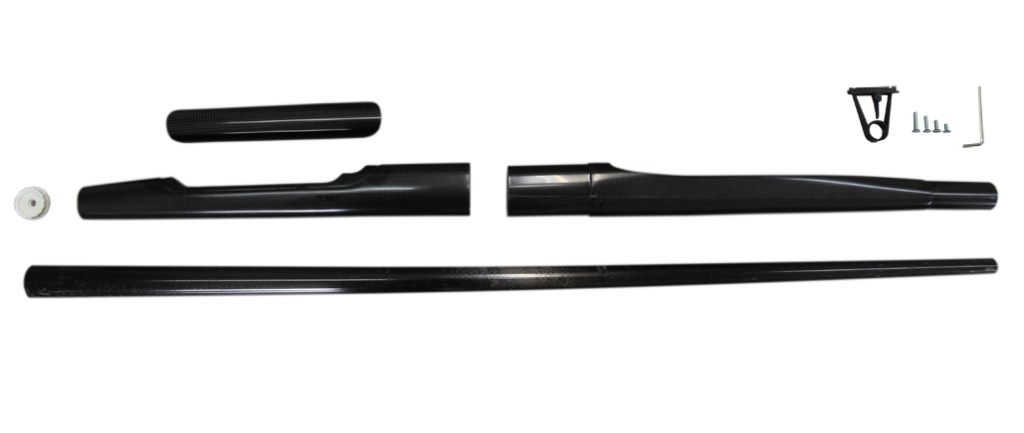

The set contains an electric pure carbon 1K pod in two pieces, carbon tailboom and carbon V-mount.

Set weighs only 125 grams / 4.40 oz.

Electric pure carbon pod:
The electric carbon pod in two pieces is completely made of composites (multiple types of materials). It is molded, so its surface is perfectly smooth and shiny. It has been made of fine 1K Aero carbon material, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is strong enough to withstand even hardcore landings and other forces.

The pylon is 305 mm / 12" long i additionally strengthened with multiple carbon types and layers, so the wings may be up to 300 mm / 11.80" in depth, but even larger ones can be mounted. Dihedral angle of pylon is 2.4° on each side.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

This pod is suitable for wingspans of up to 4 meters / 158". Due to its two-part construction, it is suitable for competitions in the F5J or ALES category. It is ideal for home builders, as it can be used as a replacement pod for other projects, too.

Carbon tailboom:
Carbon tailboom is 905 mm / 35.62" long and weights 42g / 1.48 oz.
The tailboom is molded, so its surface is perfectly smooth, which enhances the flight characteristics. The end of the tailboom is slightly curved downwards, which improves aerodynamics and the visual appearance of the whole set and, of course, the model during flight.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-mount:
Carbon V-mount has ID of 18 mm / 0.70" and weights 6 grams / 0.21 oz.
You get few different bolts with it.

NOTE:
If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

Carbon pod specifications

Length

745 mm / 29.33"

Wing depth

305 mm / 12"

Profile

AG series

Boom diameter

28 mm ID / 1.10"

Dihedral angle

2.4° on each side pylon

Weight

77 g / 2.71 oz

Carbon Tailboom

Length

905 mm / 35.62"

Wide End

28 mm ID / 1.10"

Narrow End

15 mm OD / 0.59"

Weight

42 g / 1.48 oz

Wall thickness

0.65 mm / 0.025"

V-Mount

Inside diameter

18 mm / 0.70"

Weight

6g / 0.21 oz

Height of the tailplane mounting plate

50 mm / 1.96"
