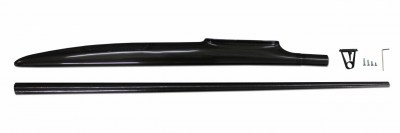

Set contains electric kevlar pod, carbon tailboom, and V-Mount.
Set weights 190 grams (6.70 oz).
Carbon boom is 950 mm (37.40") long and weights 40g (1.41 oz).
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.
Pod is completely made of composites, mainly aramid, and has carbon fiber reinforcements on strategic spots, so it is 2.4 GHz friendly.
It is strong enough to withstand even the hardcore landing and forces.
Carbon removable canopy is included.
Edges around the canopy are reinforced with carbon.
The pod section near the pylon is also reinforced, just like tip of the nose, so it can be landed roughly.
Made for spinner of 30- 32 mm (max 34mm) - possibility to mount electro motor dimension up to 34mm in diameter.
This pod is suitable for wingspan up to 3.6 meter (142"). Ideal for home builder, it can be used as replacement pod for other projects.
The final color is white - gelcoat, resistant to UV rays.
Pod Specifications |
|
Length |
662 mm / 26.06" |
Wing depth |
265 mm / 10.43" |
Profile |
AG series |
Boom diameter |
24 mm / 0.94" |
Dihedral angle |
0° |
Weight |
145 g / 5.46 oz |
Spinner |
max 34 mm / 1.33" |
Carbon Tailboom |
|
Length |
950 mm / 37.40" |
Wide End |
24 mm / 0.94" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
40 g / 1.41 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
