Fuselage sets with tails

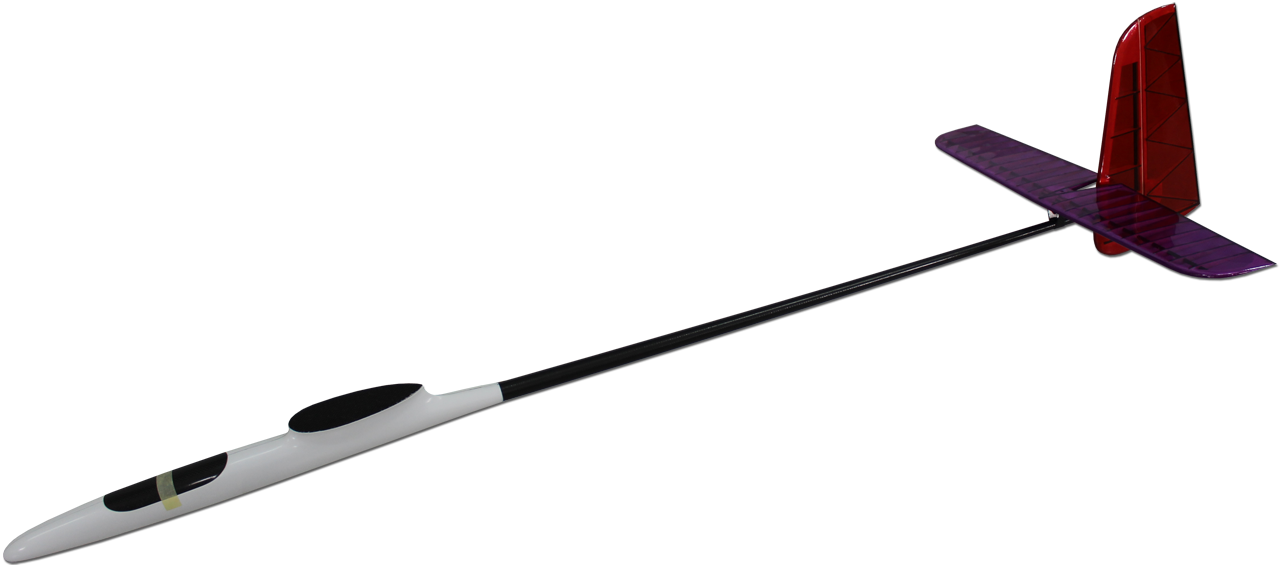

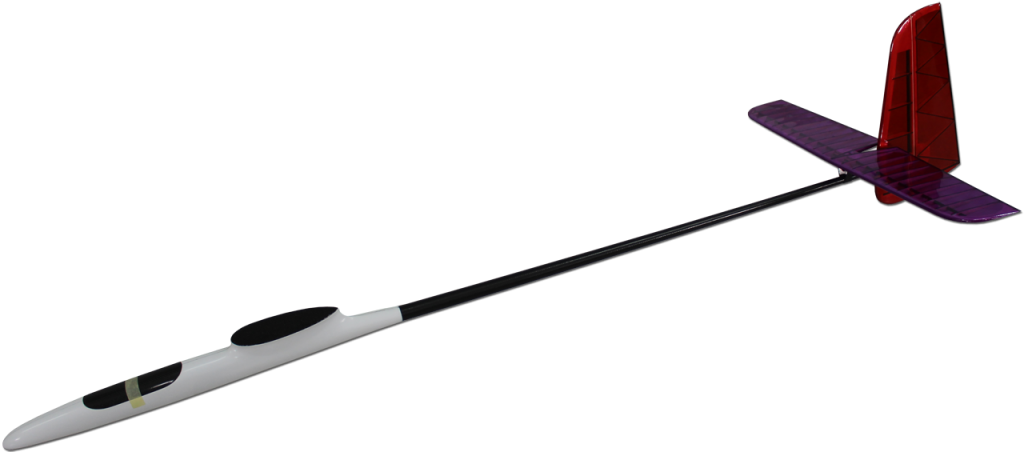

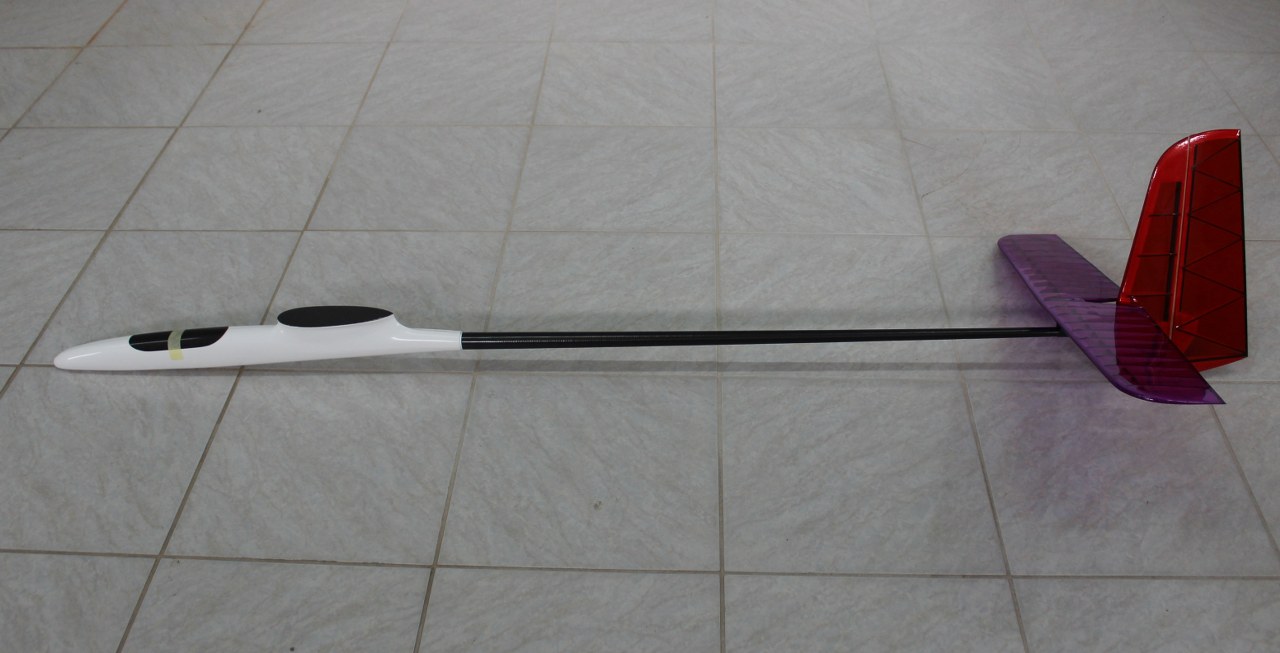

Fuselage set #131 with completed tail

CLM-Pro-fuselage-set-131-tail-1

Fuselage set #131 with completed tail

RatingNot Rated Yet
Base price $335.00
Base price with tax
Sales price $284.75
Sales price without tax $284.75
Discount $50.25
ManufacturerCLM Pro
Description

CLM Pro fuselage set #131 with completed tail suitable for wingspan up to 3.6 meters / 142". Set contains aramid pod, carbon tailboom, V-mount and complete tail. 2.4 GHz friendly. ALES, F5J, F3J.

CLM Pro fuselage set #131 with completed tail suitable for wingspan up to 3.6 meters / 142".

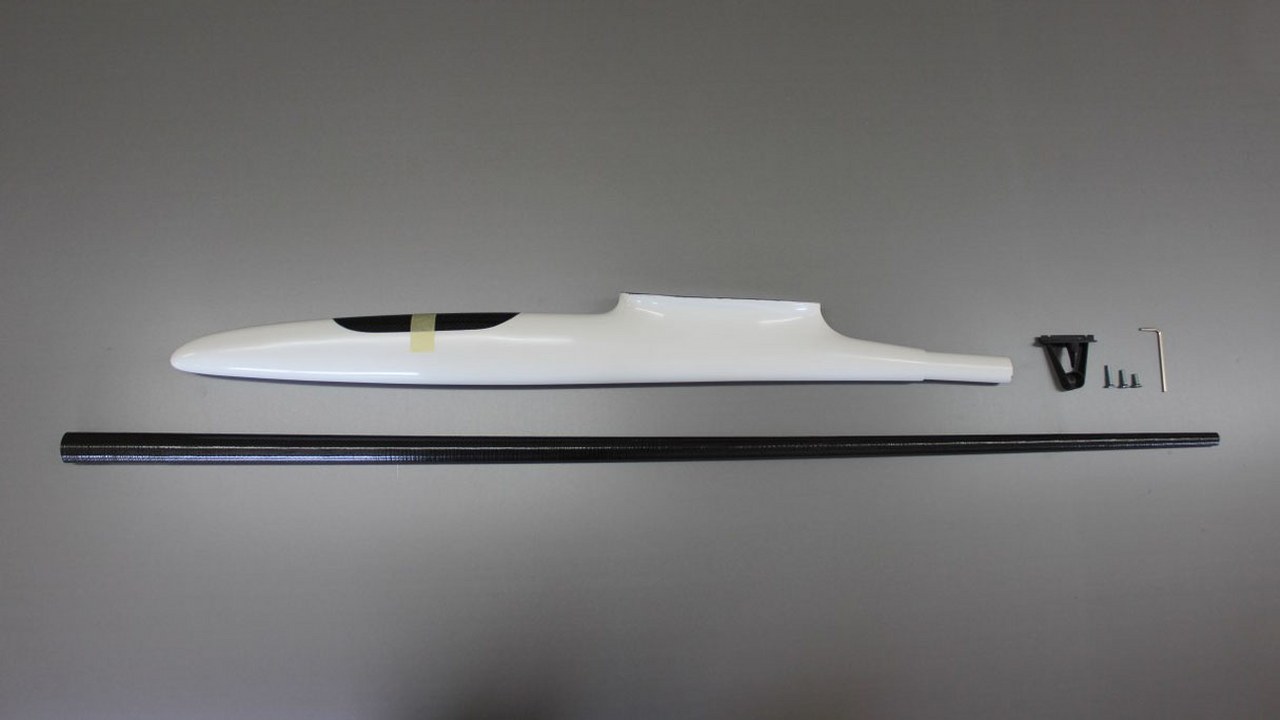

Set contains aramid pod, carbon tailboom, V-mount and complete tail.

Set weights 275 grams / 9.70 oz.

Carbon tailboom is 950 mm / 37.40" long and weights 40g / 1.41 oz.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

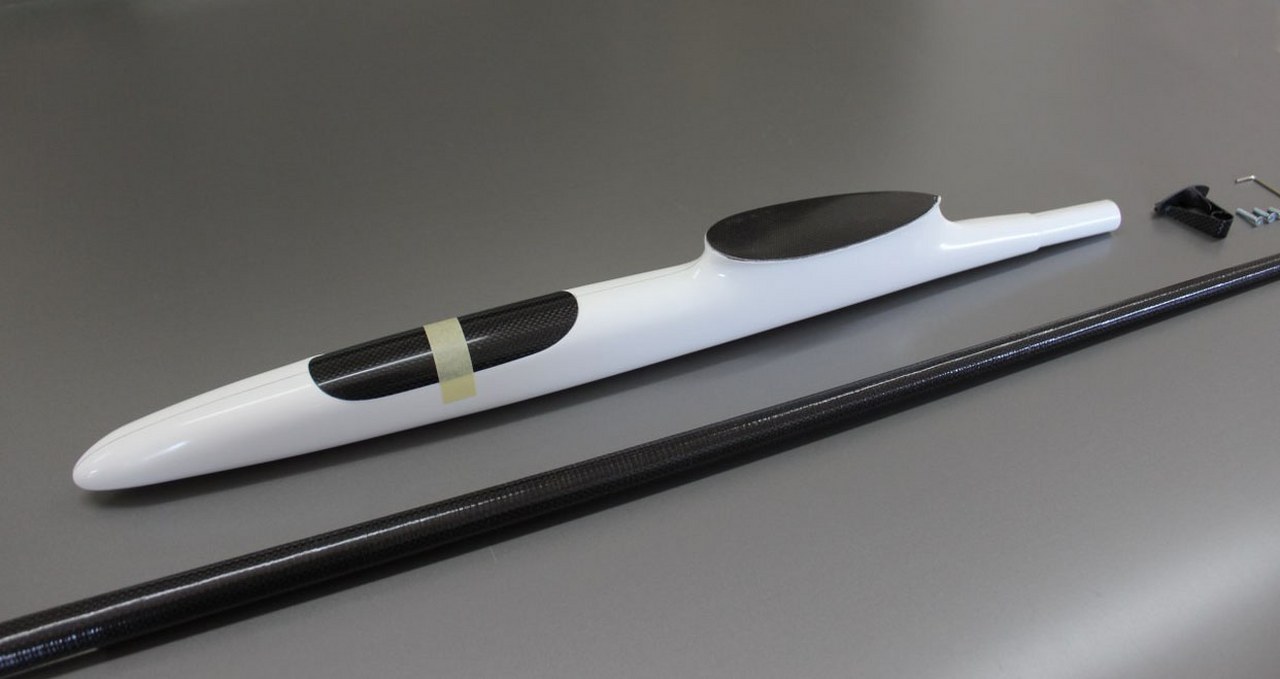

The pod is completely made of composites (multiple types of materials), mainly aramid, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is, of course, 2.4 GHz friendly. It is strong enough to withstand even hardcore landings and other forces. The part where the tow hook is, the pylon are also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

Made for spinner of 32 mm - possibility to mount electro motor dimension up to 32mm in diameter.

Ideal for home builder, it can be used as replacement pod for other projects.
Ava/Supra compatible.

The standard pod version is in white, i.e. coated with gel coat, which is UV stable and wear-resistant.

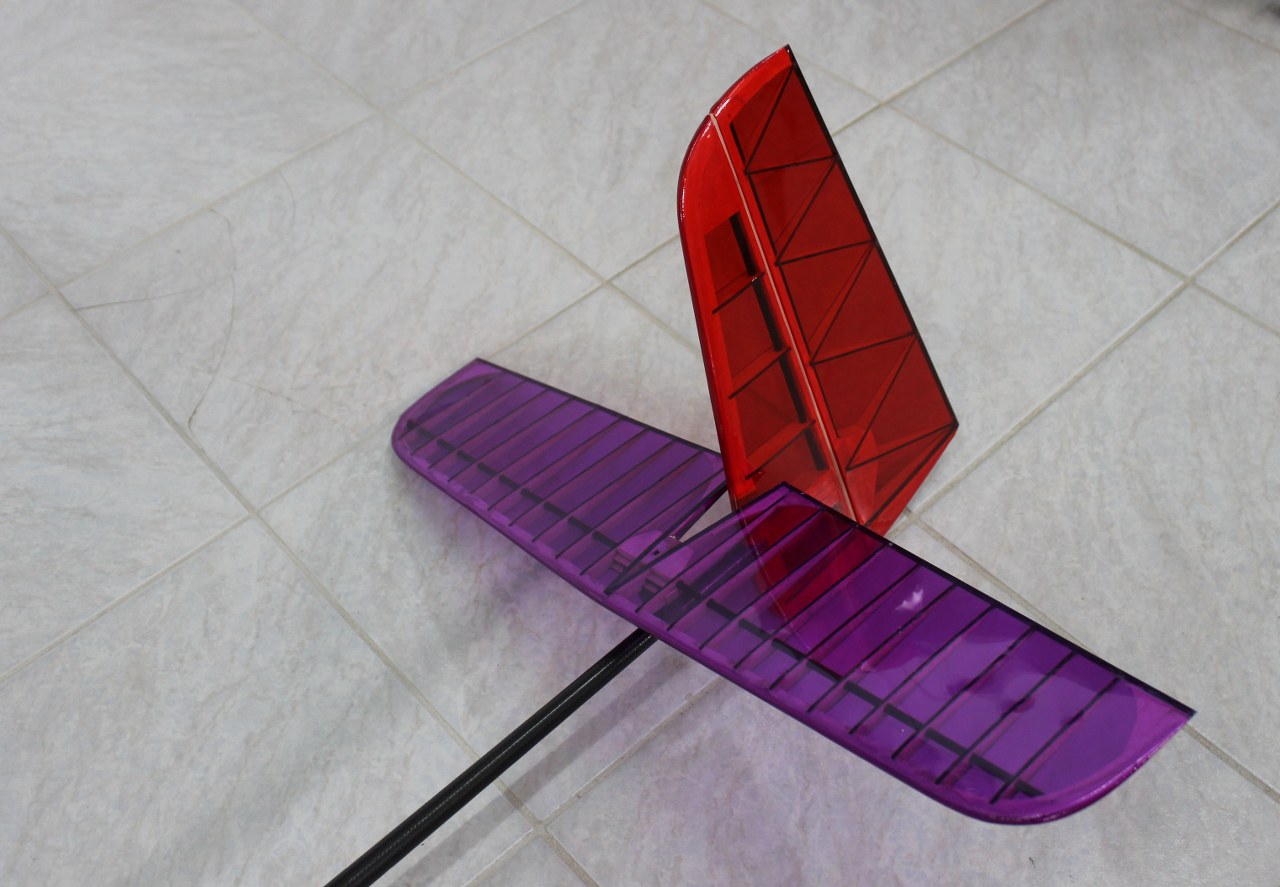

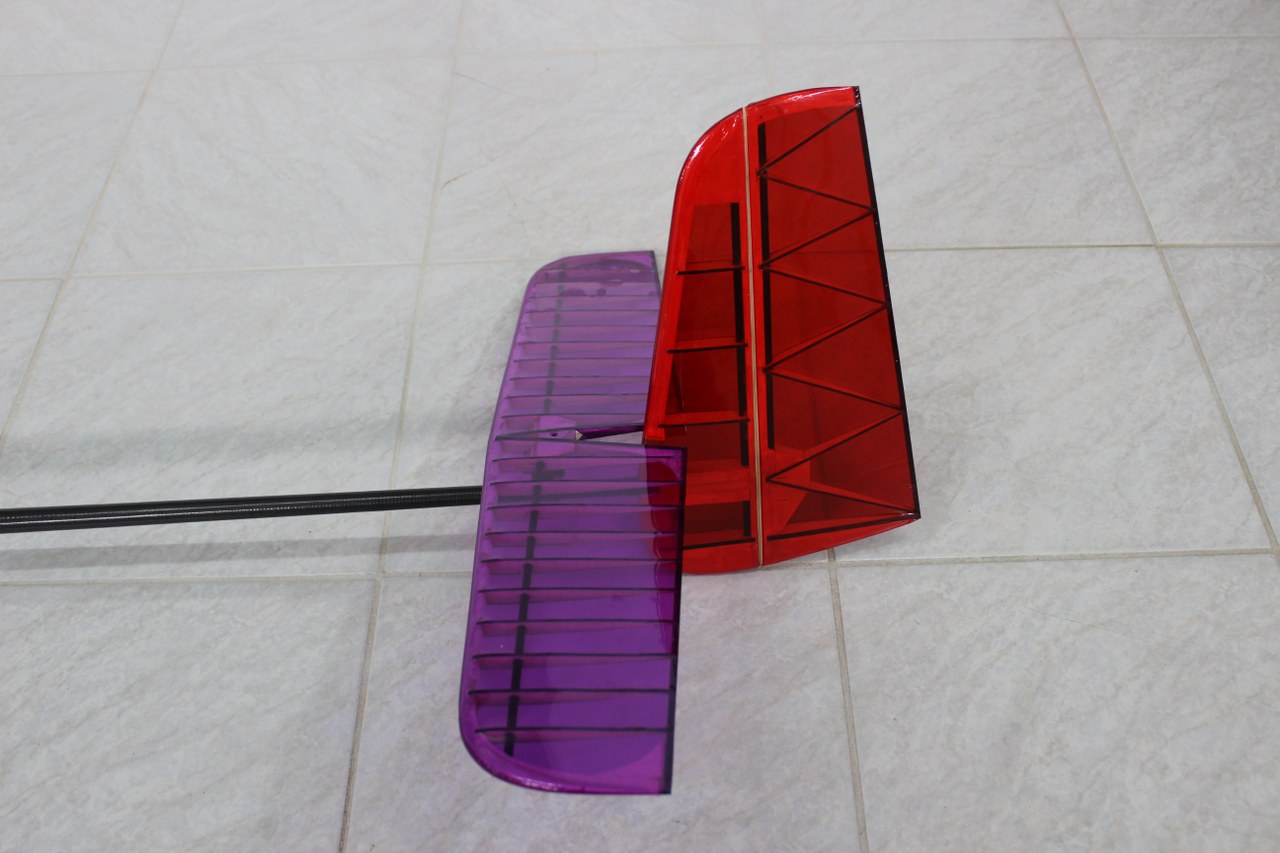

The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.

Vertical stabilizer is made the same way and it already has a built in kevlar hinge.

Complete tail is covered with Oracover - Light Oralight foil.

The tail is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

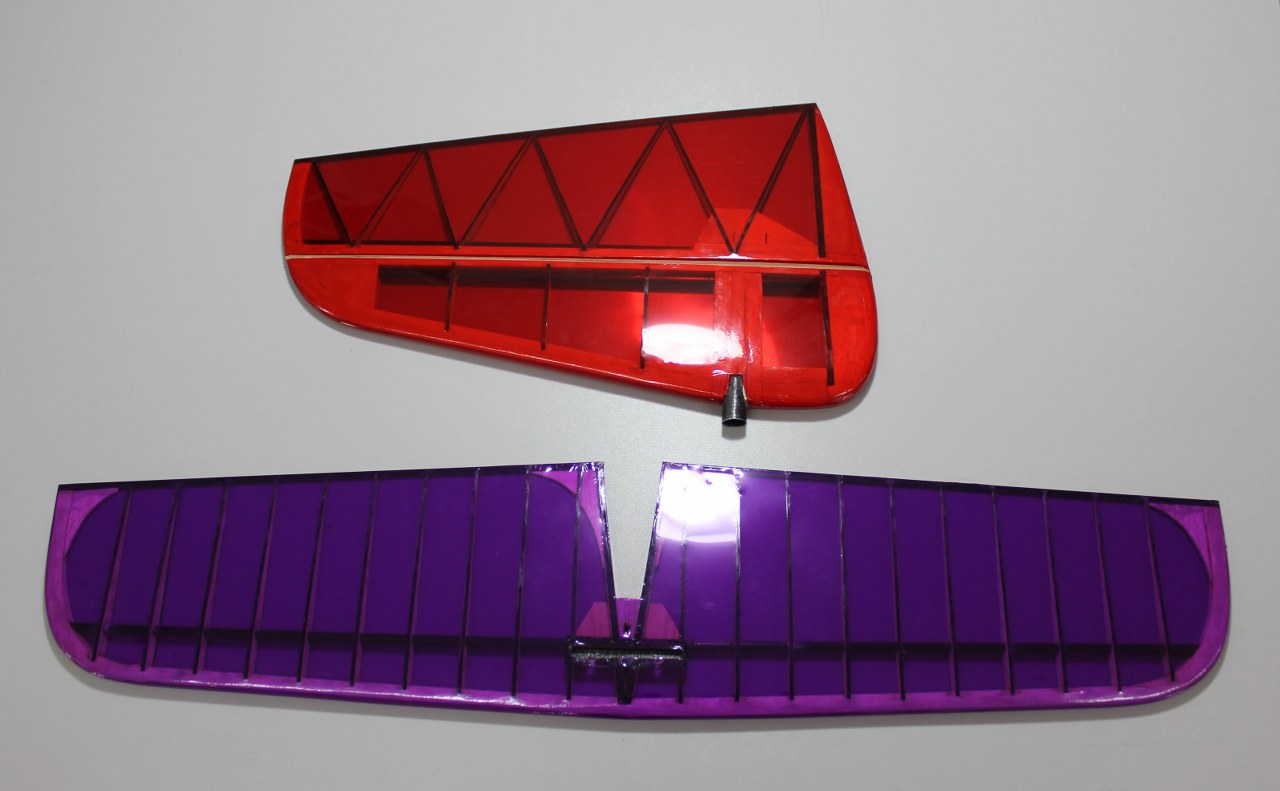

Tail specifications:

Horizontal stabilizer:
Span: 660mm , 143mm chord on the middle and 111mm on the tip.
Weight: 42g / 1.48oz

Vertical stabilizer:
362mm height. Lower part widts is 216mm, and upper part width is 105mm. Bottom part of the tail is located 80mm below the boom. There is enough space inside the vertical stab to install servos.
Weight: 55g / 1.94oz

NOTE:
If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

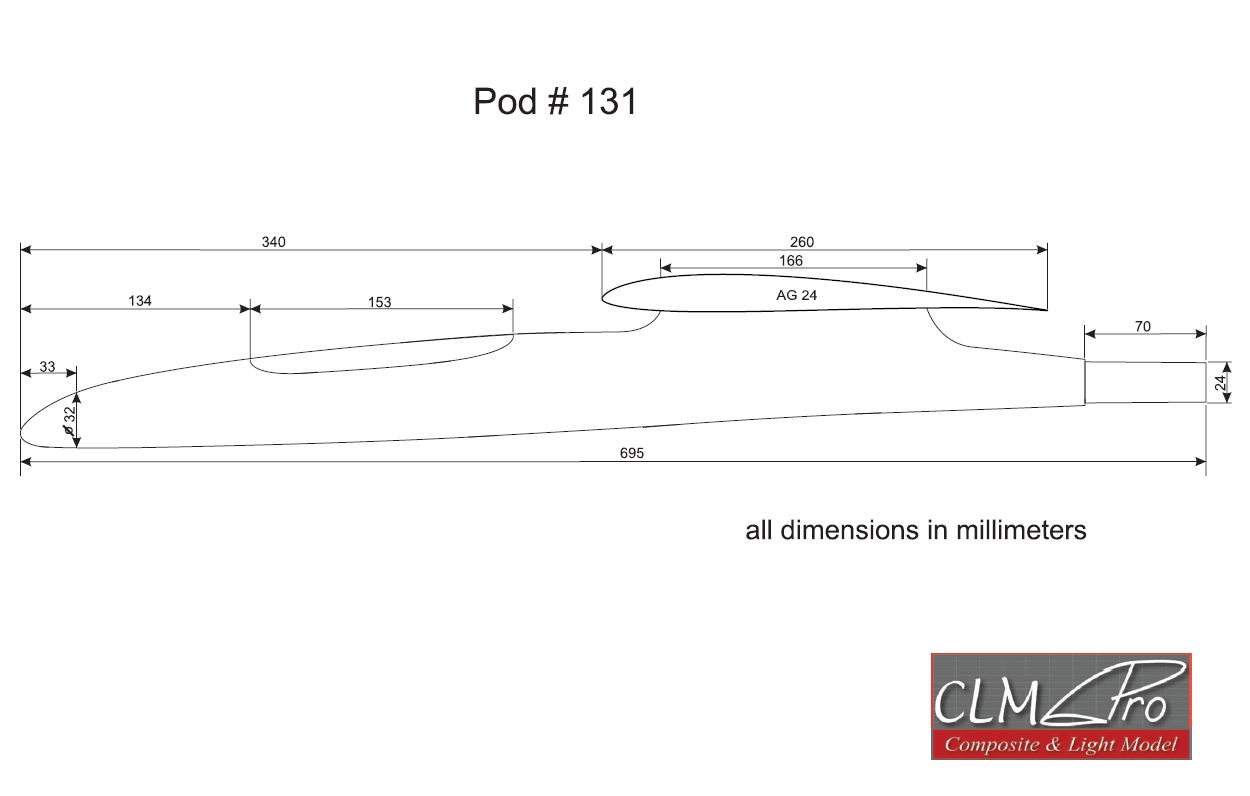

Pod #131 specifications

Length

695 mm / 27.40"

Wing depth

265 mm / 10.40"

Profile

AG series

Boom diameter

24 mm ID / 0.945"

Dihedral angle

Weight

145 g / 5.46 oz

Carbon Tailboom

Length

950 mm / 37.40"

Wide End

24 mm ID / 0.945"

Narrow End

11.5 mm OD / 0.452"

Weight

40 g / 1.41 oz

Wall thickness

0.65 mm / 0.025"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"

Tail set

Elevator / horizontal stabilizer:

42g / 1.48oz

Rudder / vertical stabilizer

55g / 1.94oz
