HLG Trotter is constructed and designed by a very well-known HLG Croatian team who promoted the model on competitions and won many medals.

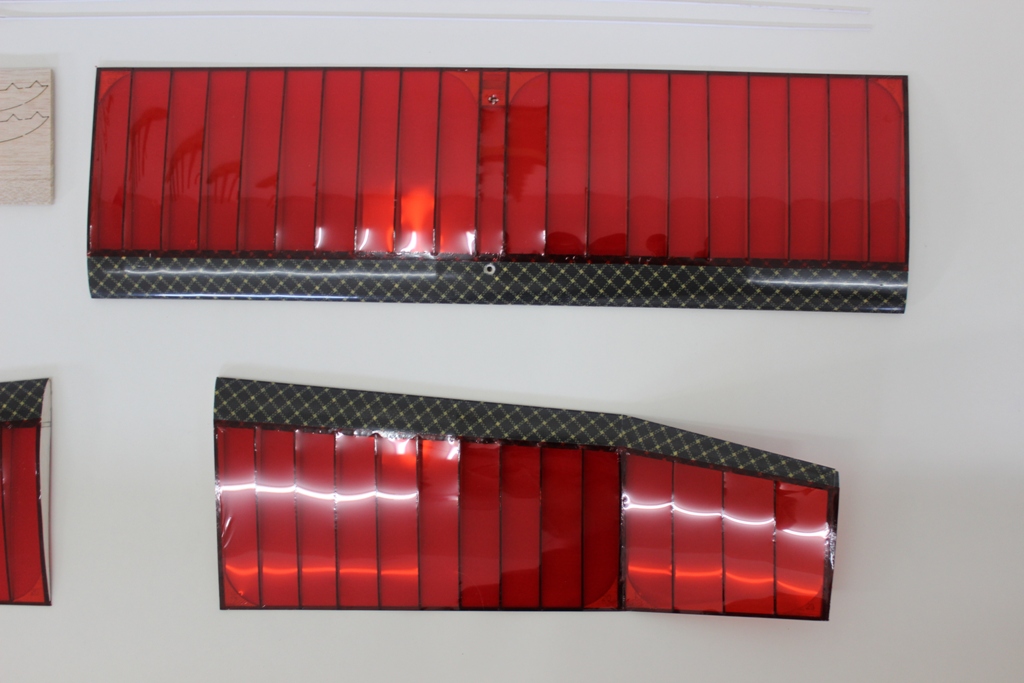

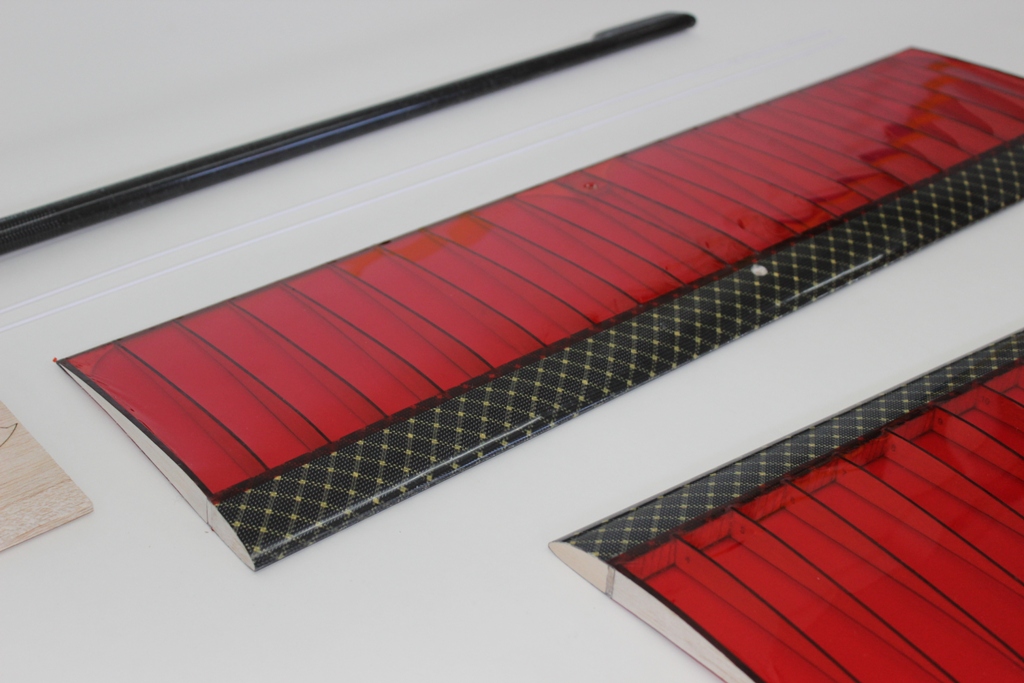

Classic HLG Trotter has 1.5m / 59.05" wingspan, total model weights is aprox. 200 grams / 7 oz. Wing is constructed with ribs reinforced with carbon strips, hybrid carbon-kevlar D-Box and some additional reinforcements which gives extreme strong and lightweight wing.
Fuselage is entirely made of carbon fiber, the part where components lie on is made of fiber glass reinforced with carbon fiber, and the nosecone is made with kevlar.
Wing airfoil is S4083 and it makes Trotter ideal for thermal sailing, it catches even the slightest thermals which gives it excelent flight characteristics.
Due to its simple construction, it is very easy to fly and we recommend it as an introduction to model flying not only to beginners but also to more experienced modelers.
Model can be launched with bungee start or simple hand-thrown.
It is usually covered with Oralight covering foil. It is the best option to cover the model, since it is very light and has great characteristics.
To fly HLG Trotter, transmitter with 2 channels and V-mixer is required.
ARF kit includes wing in 3 parts, central wing part goes separately and outer parts are already in one part so you just have to connect them with central part. Wings are covered with oralight foil. We offer you combination of transparent yellow, transparent red, transparent blue, transparent purple, transparent white and clear transparent foil. Fuselage is also in 3 parts. Balsa V-tail comes in 2 parts, pushrods 0.6mm with tube. Bolts for wing and tail fastening. Towhook for bungee launch and of course manual. All listed parts needs to be glued, connected, you have to install your servos, receiver and batteries.
You need about 3 hours to install everything.
HLG Trotter specification:
Wingspan: 1500 mm / 59.05"
Length: 870 mm / 34.25"
Wing area: 24.15 dm2
Weight: 180g / 6.34 oz
Controls: RE / V-Tail
|Fuselage #116 s|
|Length||870 mm (34.25")|
|Wing depth||185 mm (7.28")|
|V tail angle||110°|
|Weight||45 g (1.58oz)|
