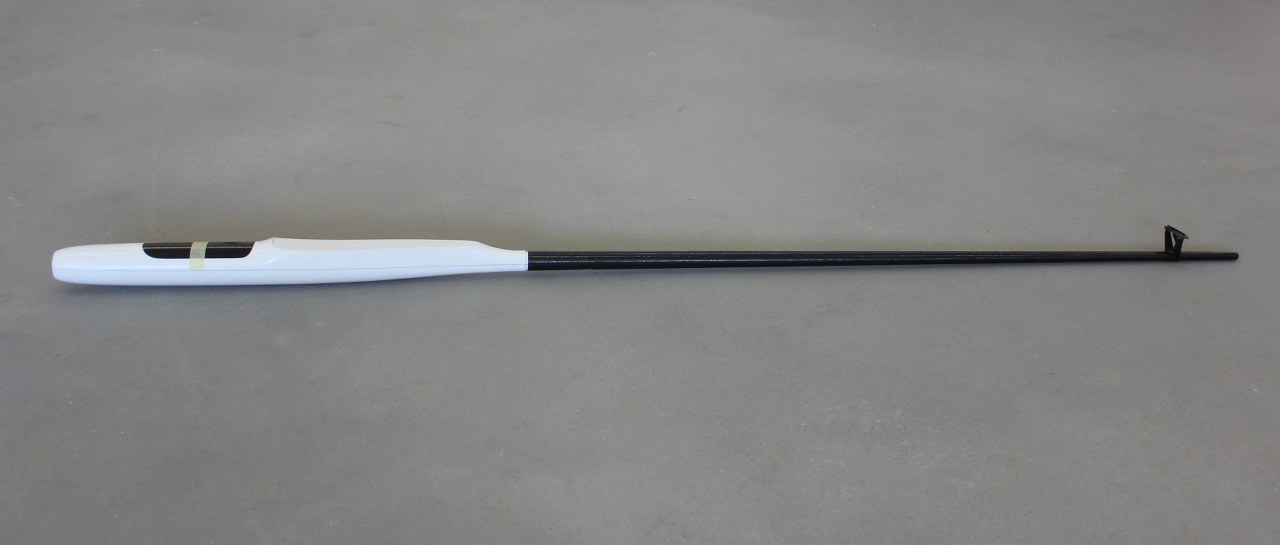

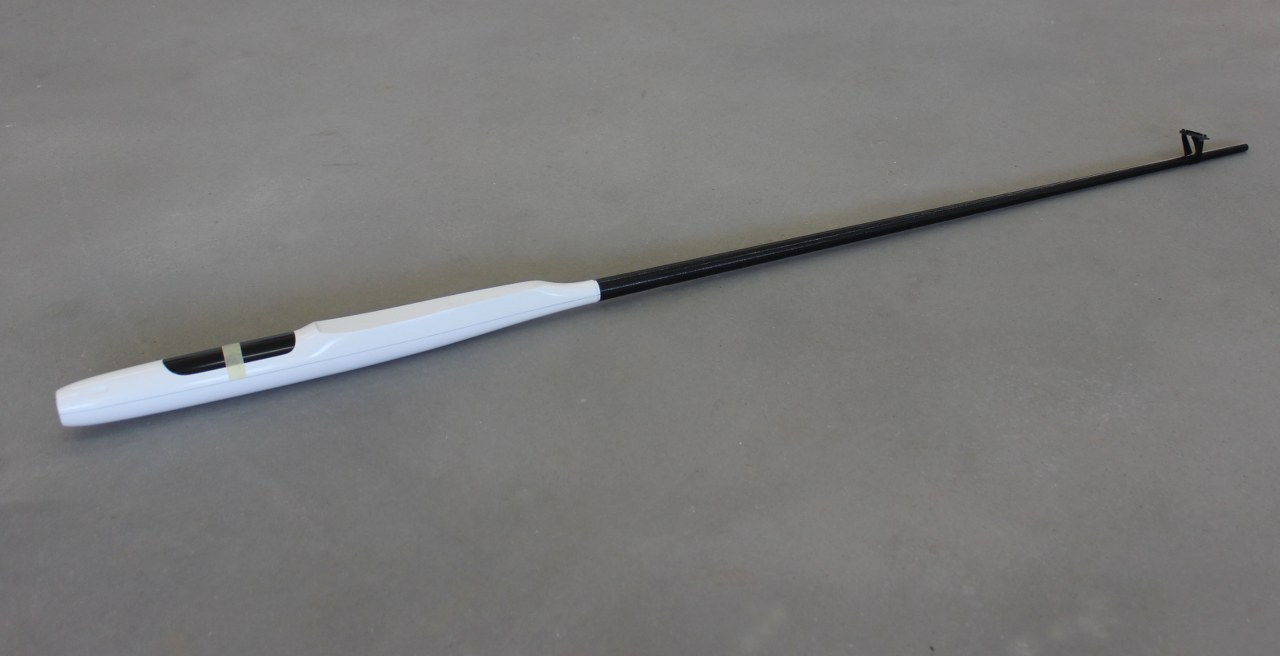

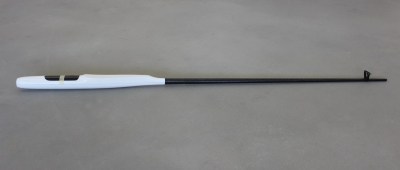

CLM Pro Electric fuselage set #132 suitable for wingspan up to 4 meters / 157".

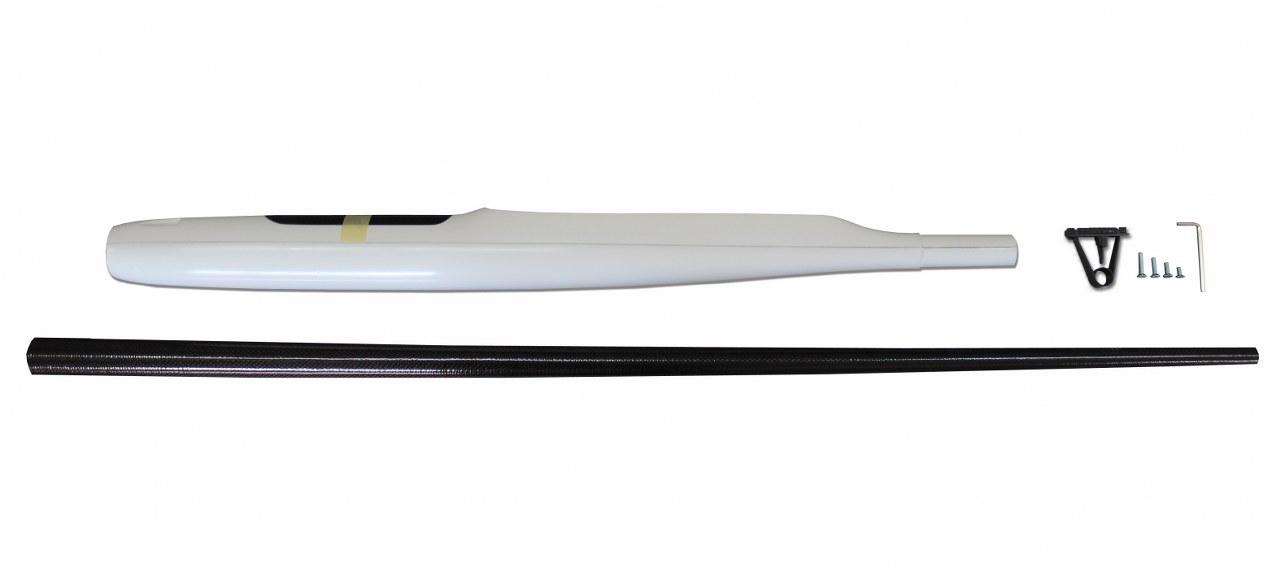

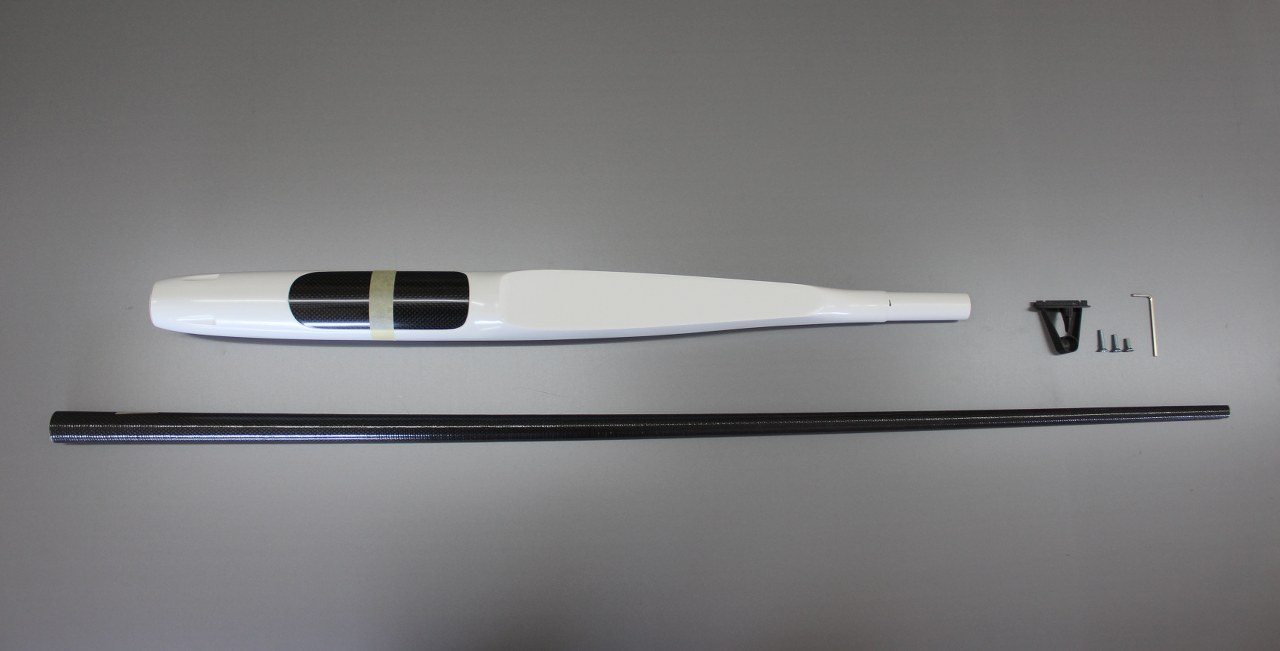

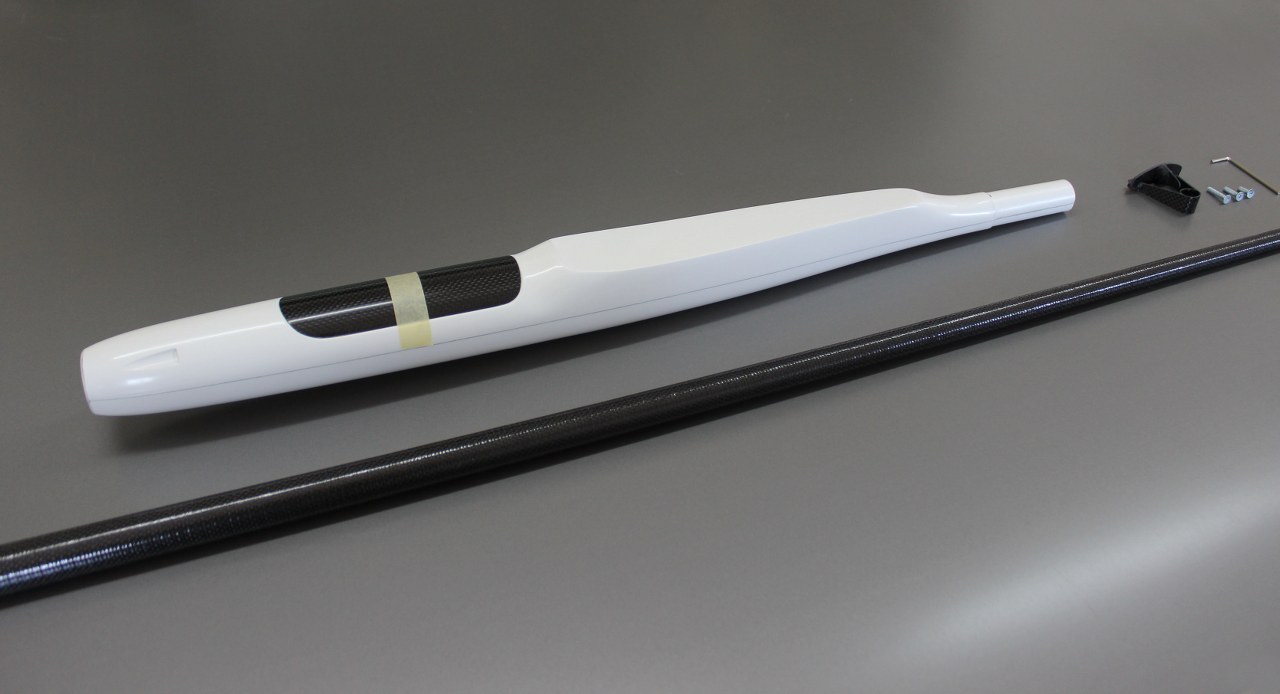

Set contains kevlar pod, carbon tailboom, and V-Mount.
Carbon boom is 950 mm (37.40") long and weights 40g (1.41 oz).
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

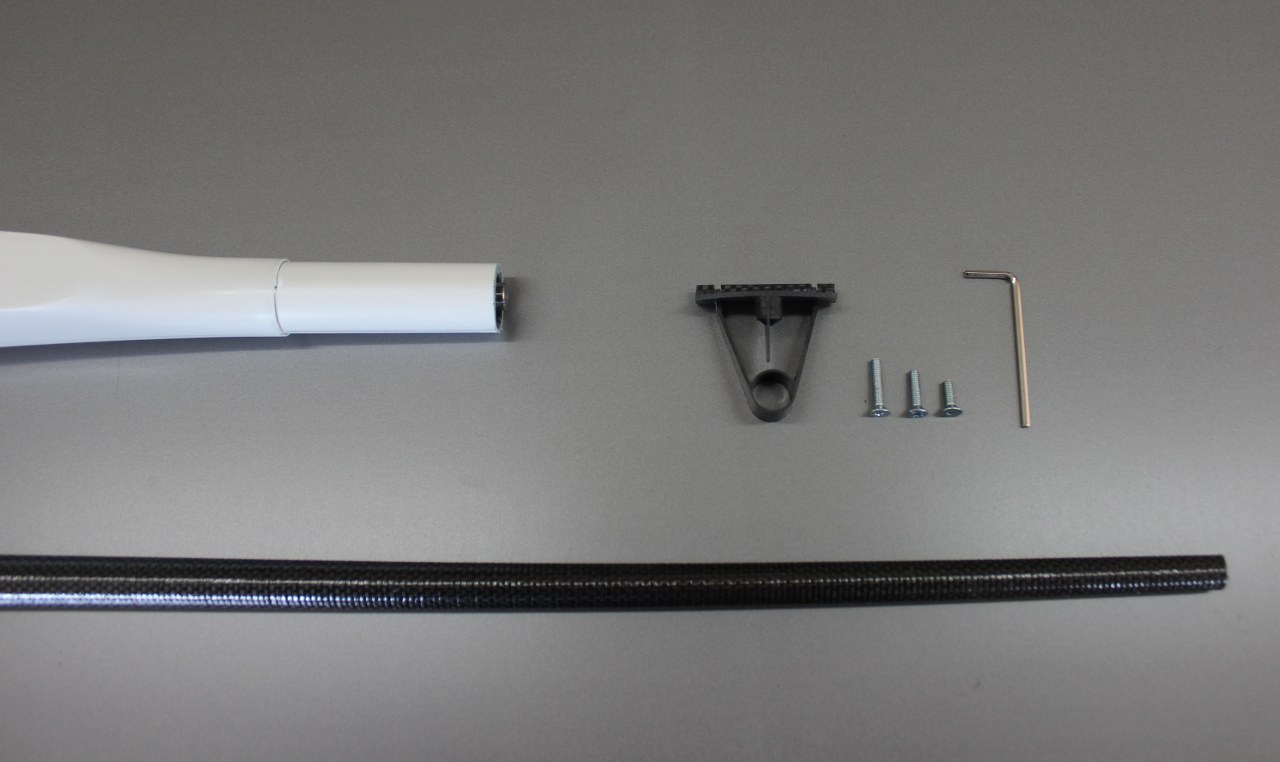

Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.
Set weights 195 grams (6.87 oz).

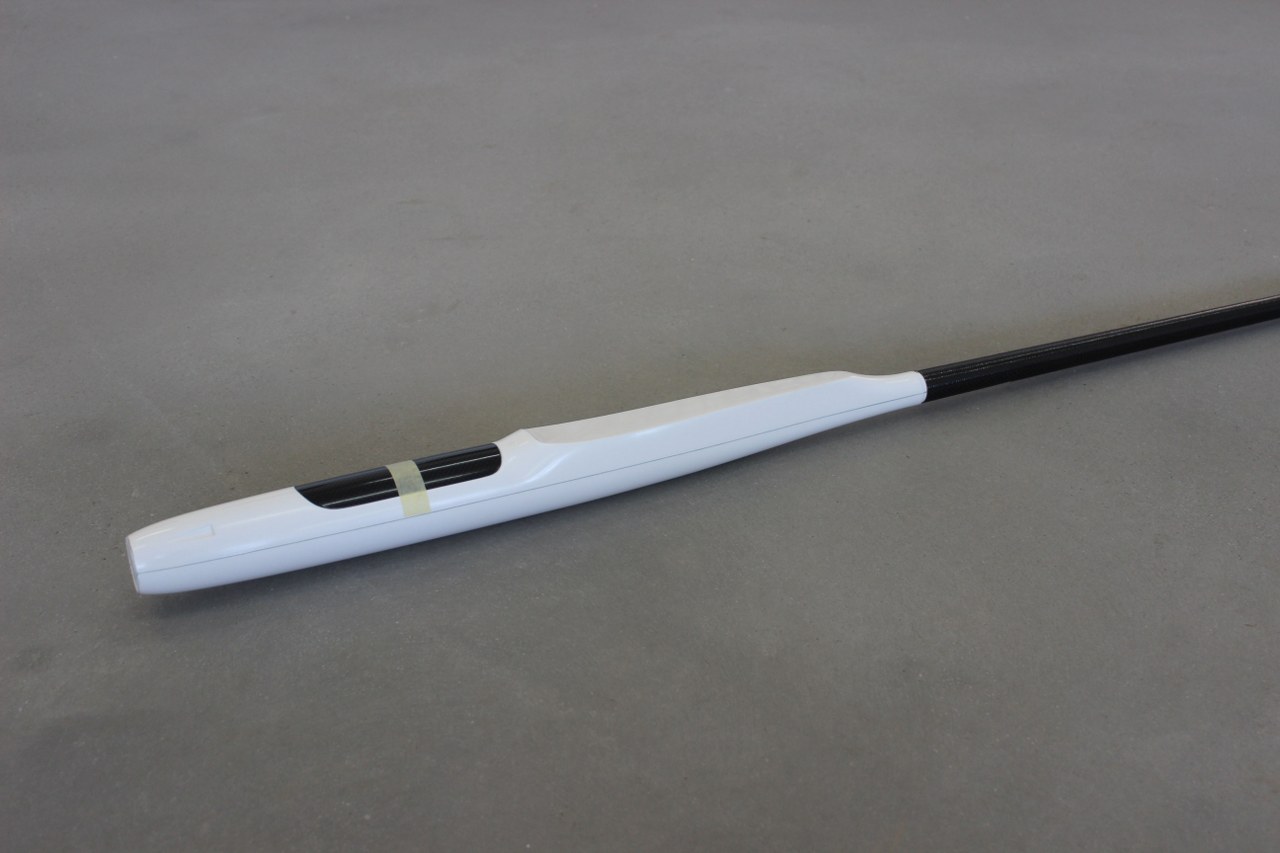

Pod is completely made of composites, mainly aramid, and has carbon fiber reinforcements on strategic spots, so it is 2.4 GHz friendly.
It is strong enough to withstand even the hardcore landing and forces.
Carbon removable canopy is included.
Edges around the canopy are reinforced with carbon.
It also has additional installed air intakes, they can be opened afterwards if necessary.
Already instelled firewall.
Made for spinner of 38mm (1.50") diameter.
Ideal for home builder, it can be used as replacement pod for other projects.
The final color is white - gelcoat, resistant to UV rays.
|
Electric pod specifications |
|
|
Length |
677 mm / 26.65" |
|
Wing depth |
265 mm / 10.40" |
|
Profile |
AG Series |
|
Boom diameter |
25 mm ID / 0.98" |
|
Dihedral angle |
0° |
|
Weight |
150 g / 5.29 oz |
|
Spinner |
38 mm / 1.49" |
|
Motor diameter |
max 39 mm / 1.53" |
|
Carbon Tailboom |
|
|
Length |
950 mm / 37.40" |
|
Wide End |
25 mm ID / 0.98" |
|
Narrow End |
11.5 mm OD / 0.452" |
|
Weight |
40 g / 1.41 oz |
|
Wall thickness |
0.5 mm / 0.019" |
|
V-Mount |
|
|
Inside diameter |
13.7 mm / 0.539" |
|
Weight |
5.5 g / 0.19 oz |
|
Height of the tailplane mounting plate |
50 mm / 1.96" |
