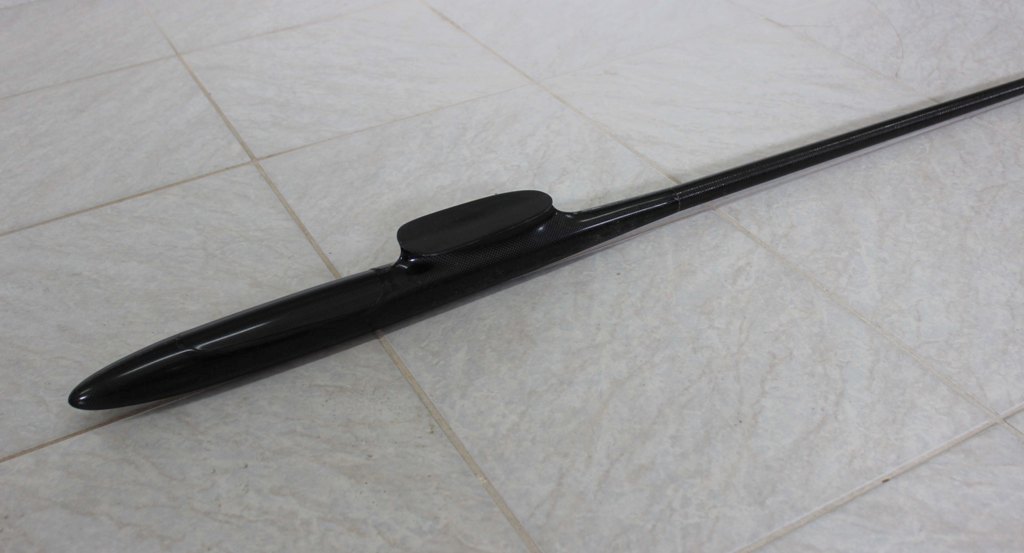

Complete carbon fuselage set suitable for wingspan up to 3 meters / 119".

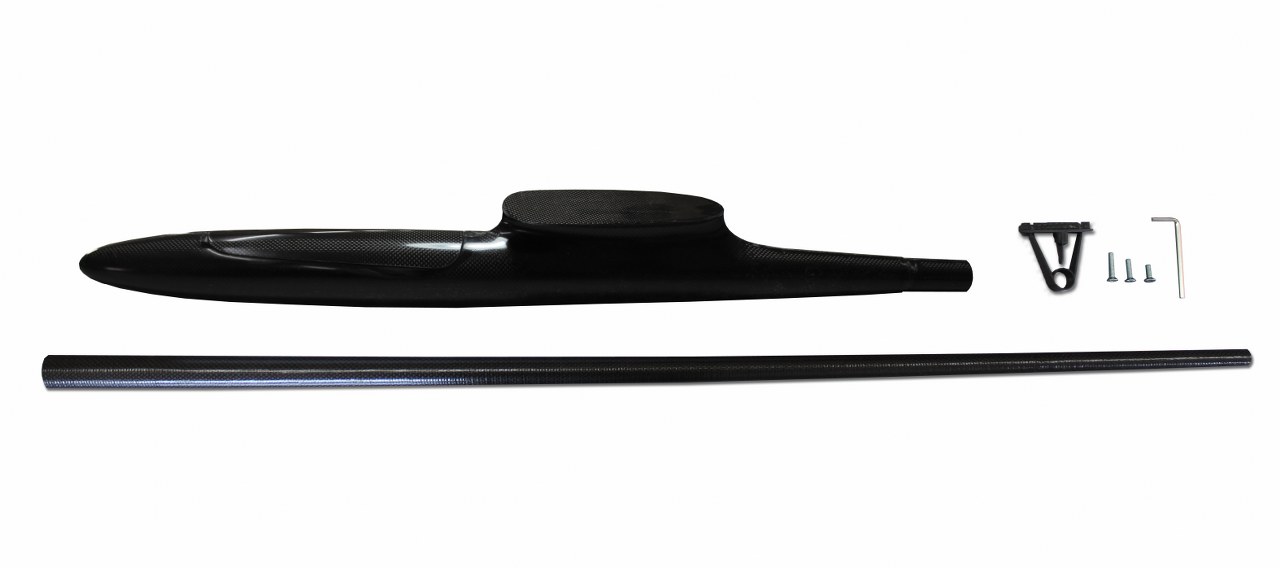

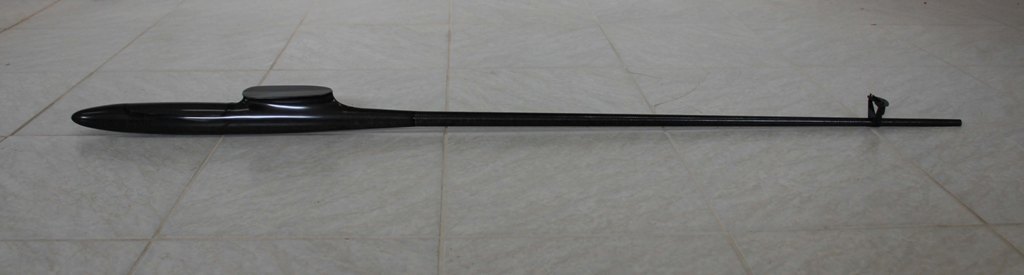

Set contains carbon pod, carbon tailboom, and V-mount.
Set weights 125 grams / 4.40 oz.
Carbon boom is 900 mm (35.43") long and weights 39g (1.37 oz).
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.

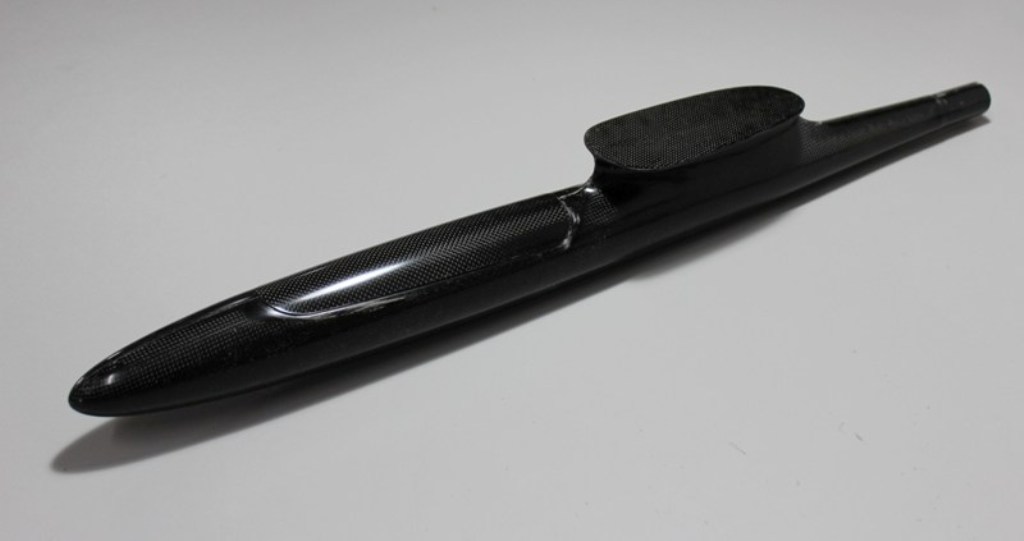

Pod:
Pod is completely made of carbon, it is very light and strong.
Pylon is for AG series airfoil. Pylon is thin and carefully engineered to reduce interference drag.
Dimensions of Pylon are 136 x 57mm (5.35" x 2.24"). It is designed so the wing is easily attachable from below. Dihedral is 2.5° on each side.
Pylon is 136 mm (5.35") long, so wings up to 220 mm (8.66") depth but even more can be mounted.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.

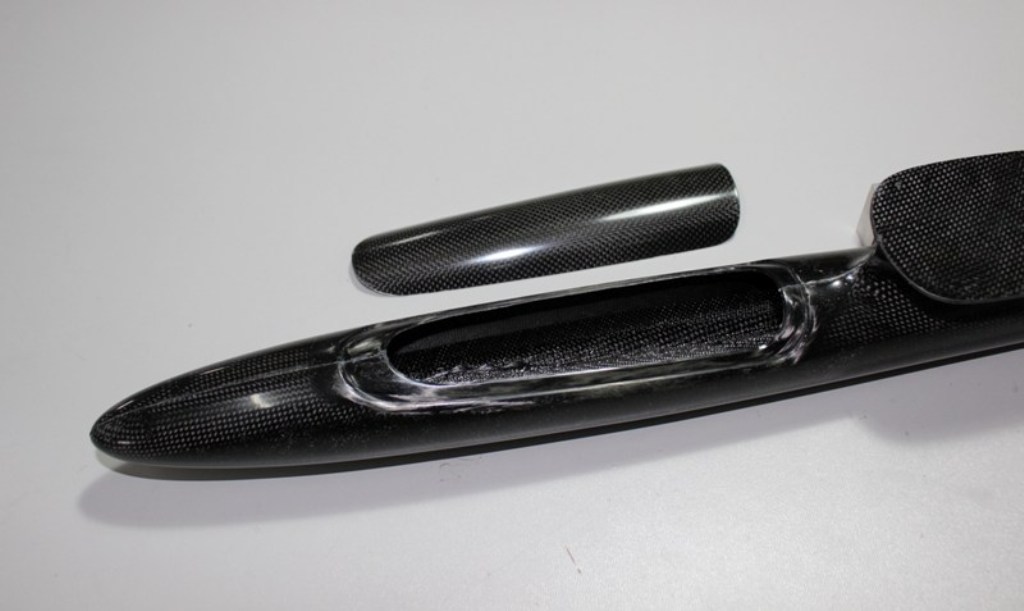

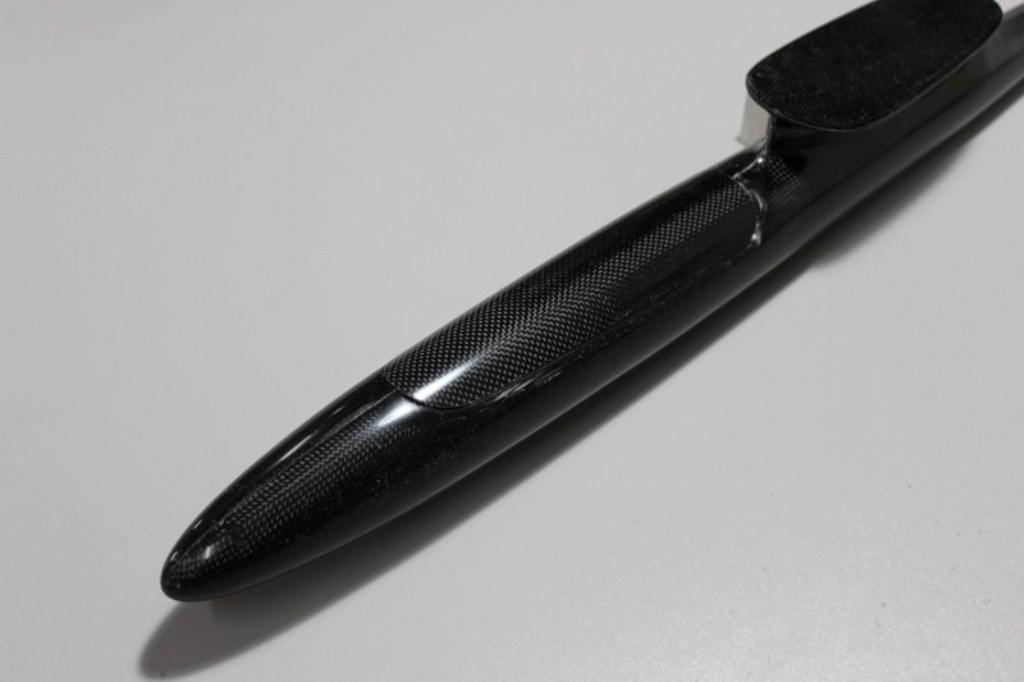

Supplied with a removable carbon canopy.
Pod is reinforced with carbon on strategic spots which gives it more strength.
NOTE: The Pod is designed so that you can make an electric version. Since the nose is quite reinforced, it is only necessary to cut the nose on specified length, put firewall and you get a diameter of 30 to 36 mm for a spinner.
This Pod is suitable for wingspan up to 3 meter (118.11"). Ideal for home builder, it can be used as replacement pod for Bubble Dancer.

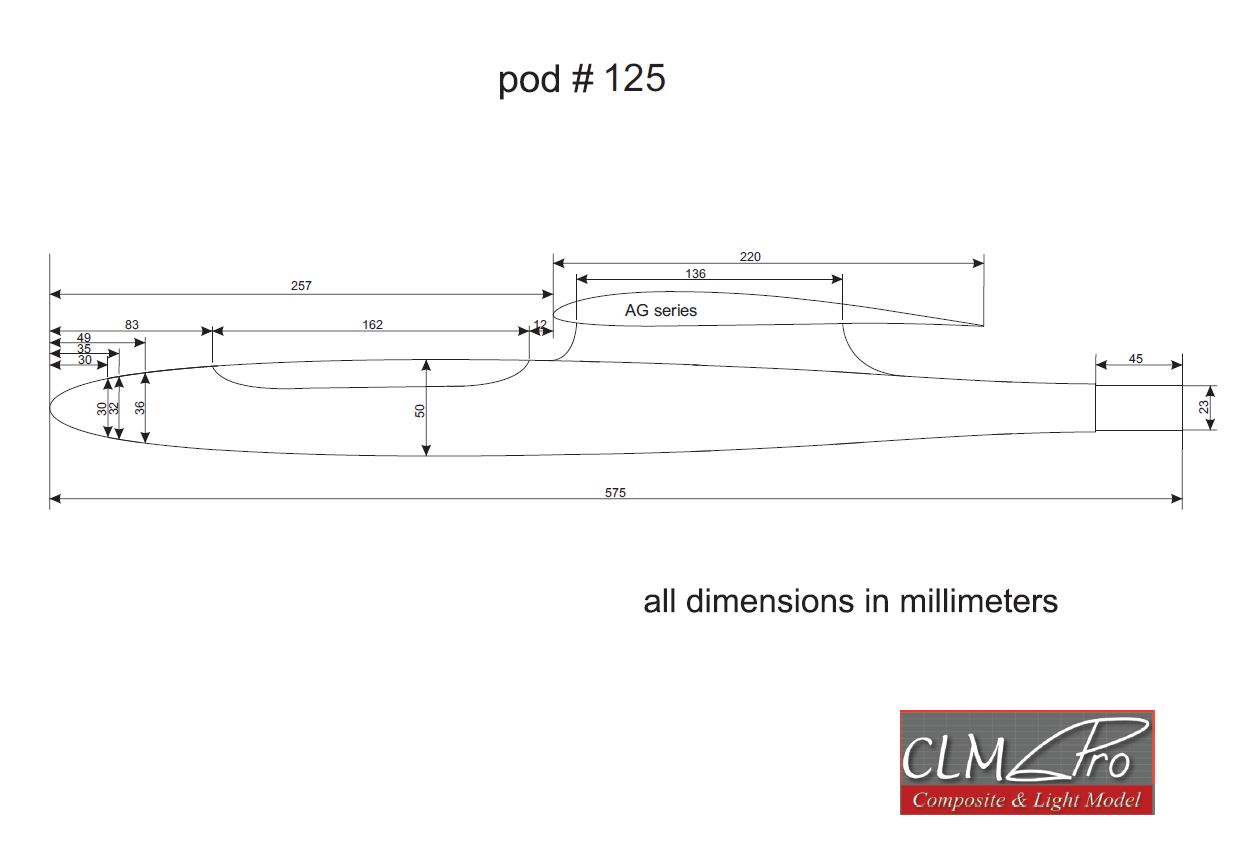

Carbon Pod Specifications |
|
Length |
575 mm / 22.63" |
Wing depth |
220 mm / 8.66" |
Profile |
AG Series |
Boom diameter |
23 mm ID / 0.90" |
Dihedral angle |
2.5° |
Weight |
82g / 2.89 oz |
Carbon Tailboom |
|
Length |
900 mm / 35.43" |
Wide End |
23 mm ID / 0.90" |
Narrow End |
11.5 mm OD / 0.452" |
Weight |
39 g / 1.37 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
