Fuselage Sets

Fuselage set #121

CLM-Pro-fuselage-set-121

Fuselage set #121

RatingNot Rated Yet
Base price $155.00
Base price with tax
Sales price $139.50
Sales price without tax $139.50
Discount $-15.50
ManufacturerCLM Pro
Description

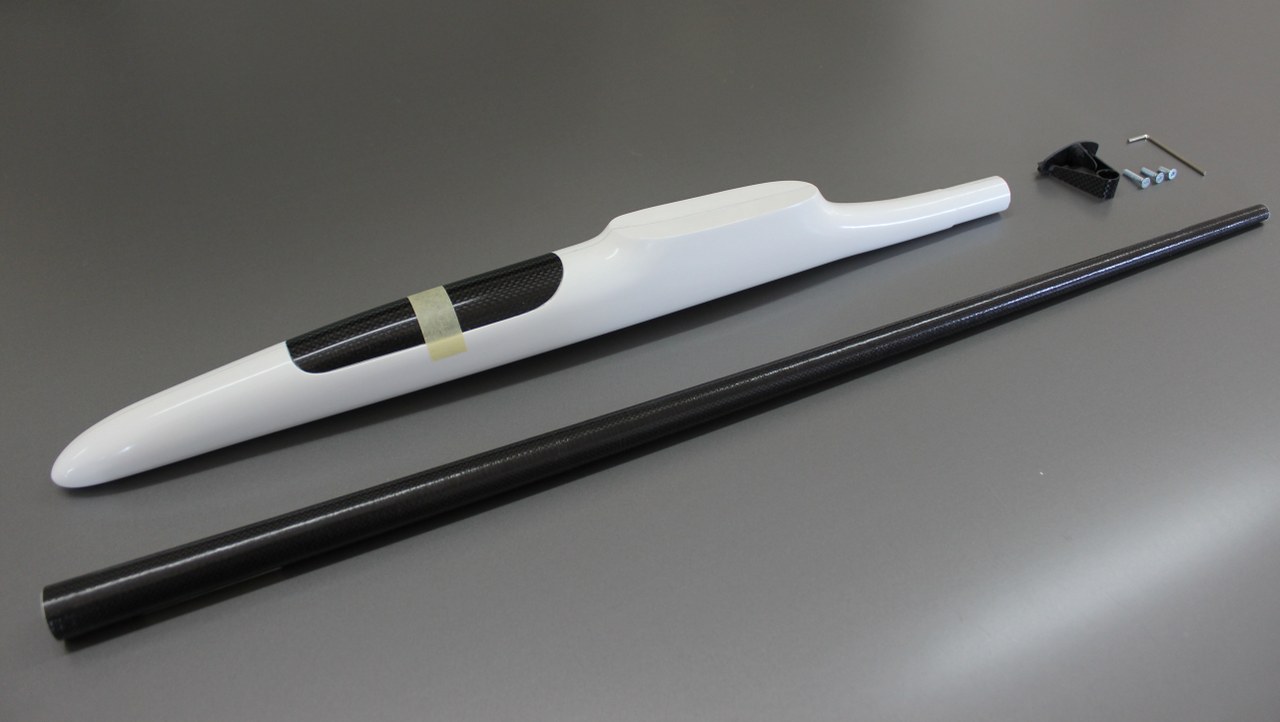

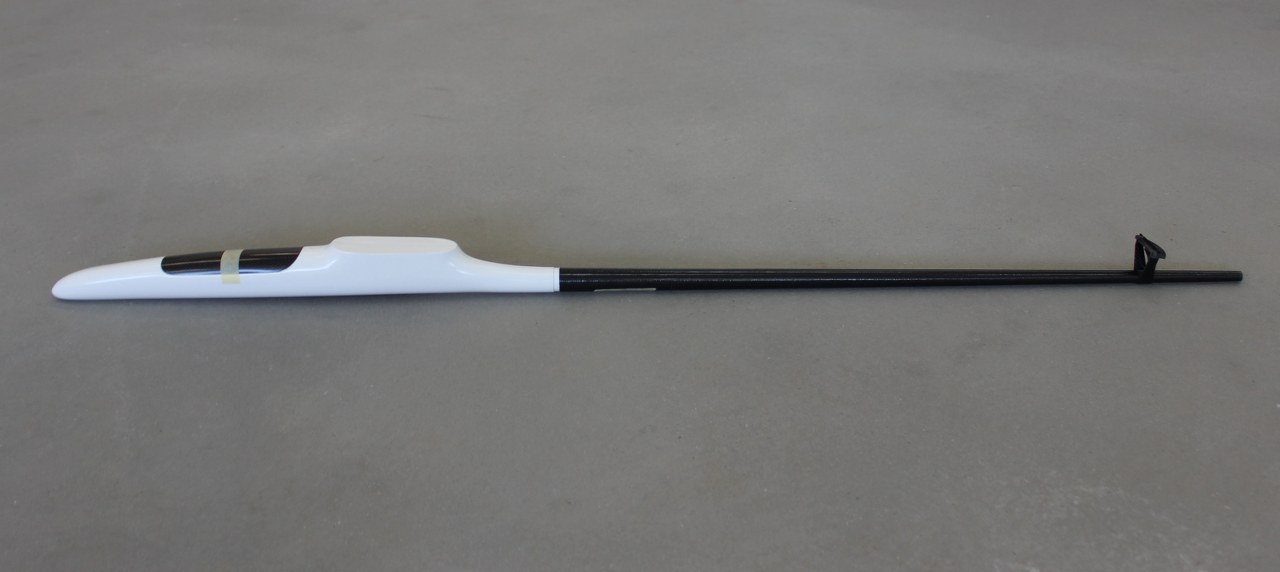

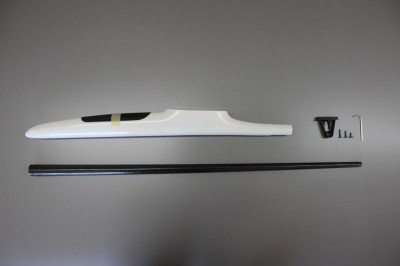

CLM Pro Fuselage set #121 suitable for wingspan up to 3 meters / 119". Set contains glass fabric pod, carbon tailboom and V-mount.

CLM Pro Fuselage set #121 suitable for wingspan up to 3 meters / 119".

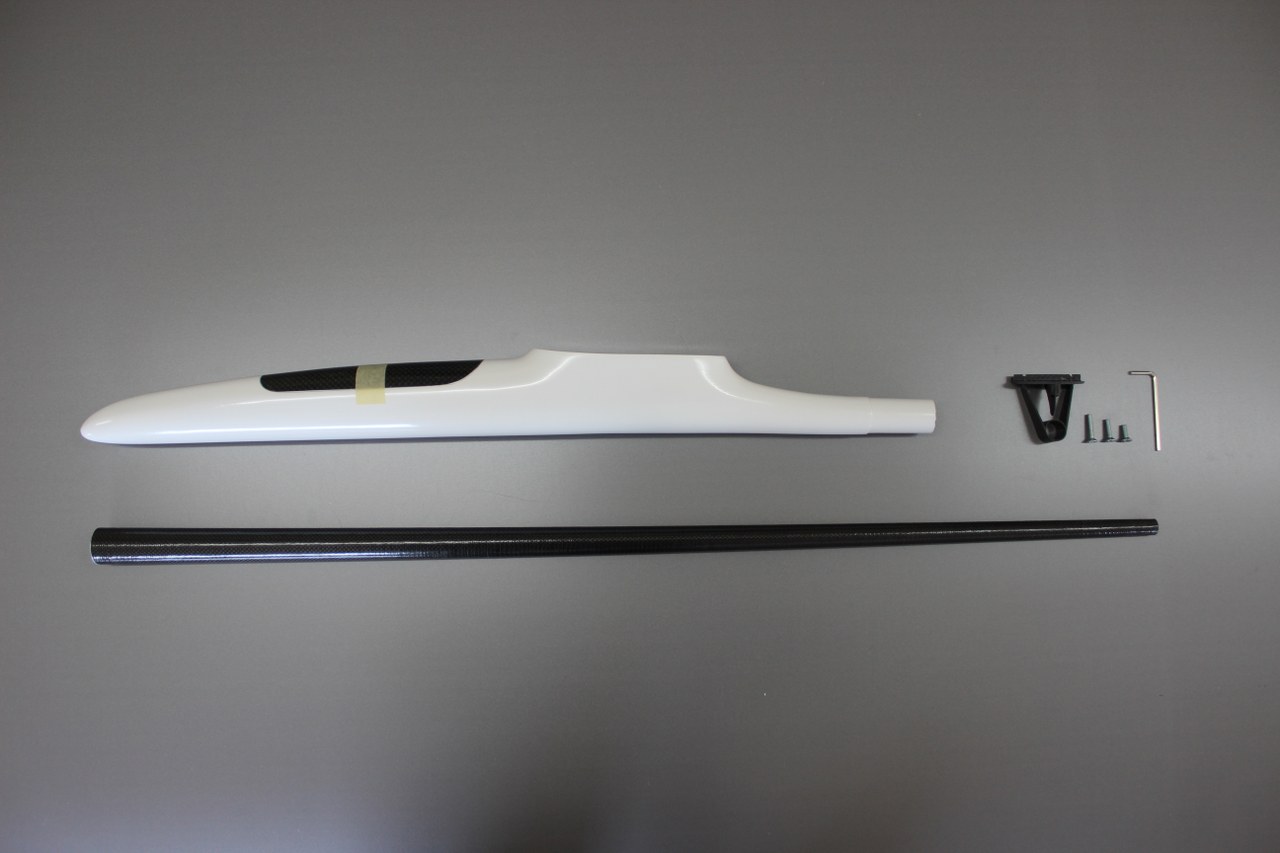

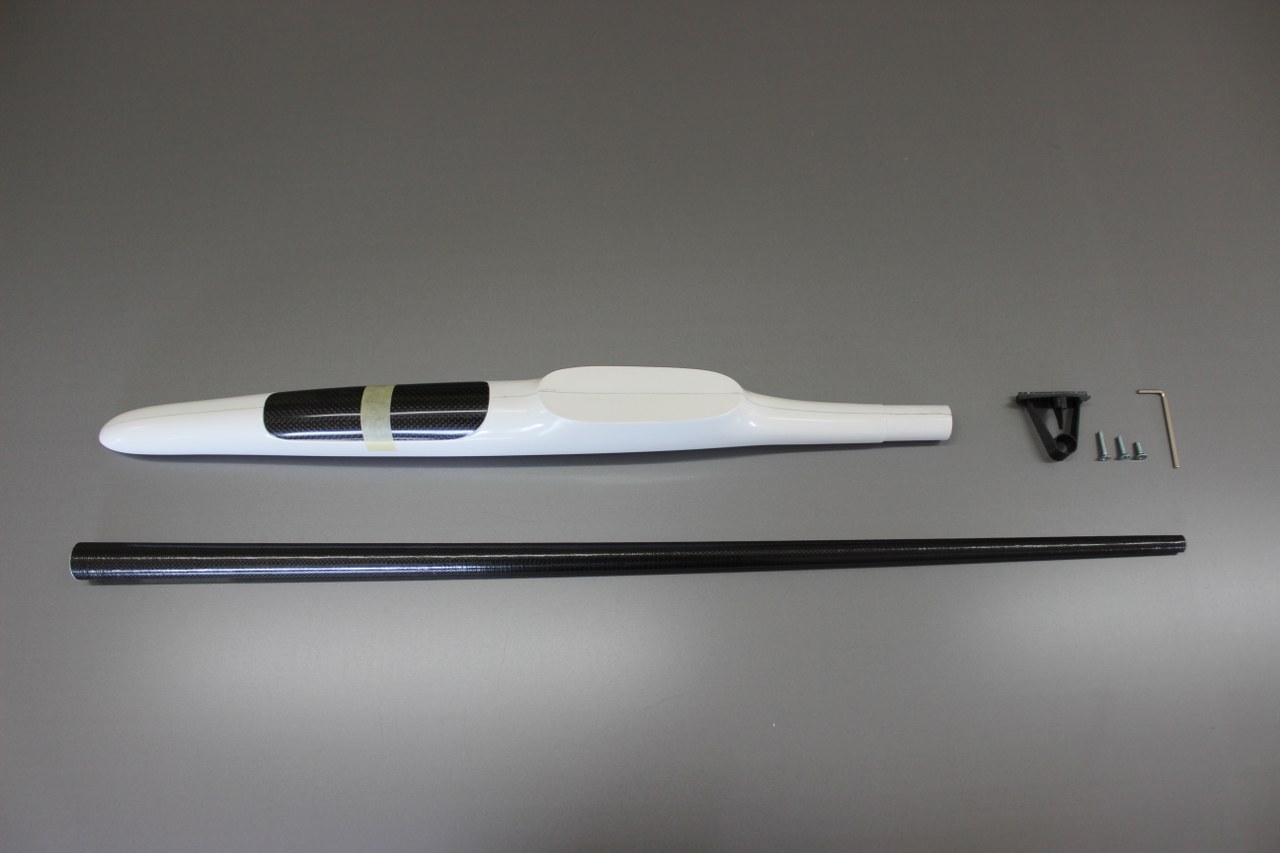

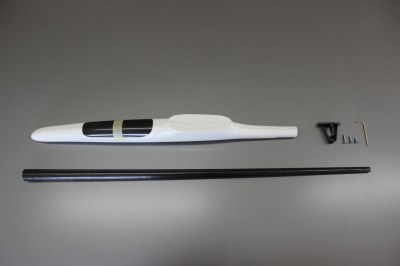

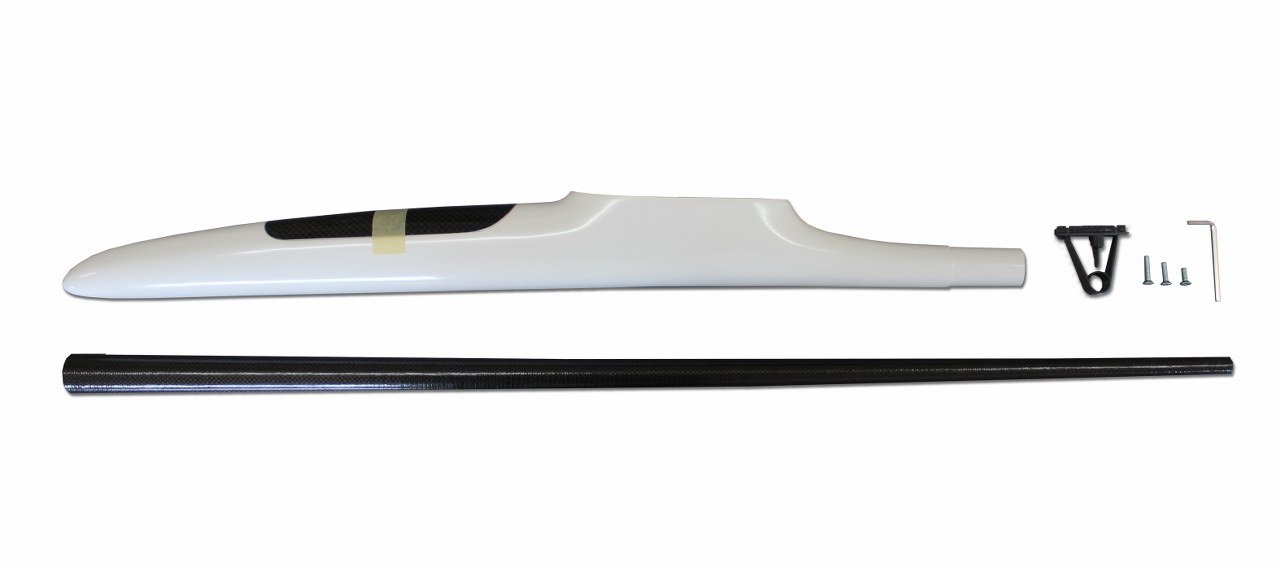

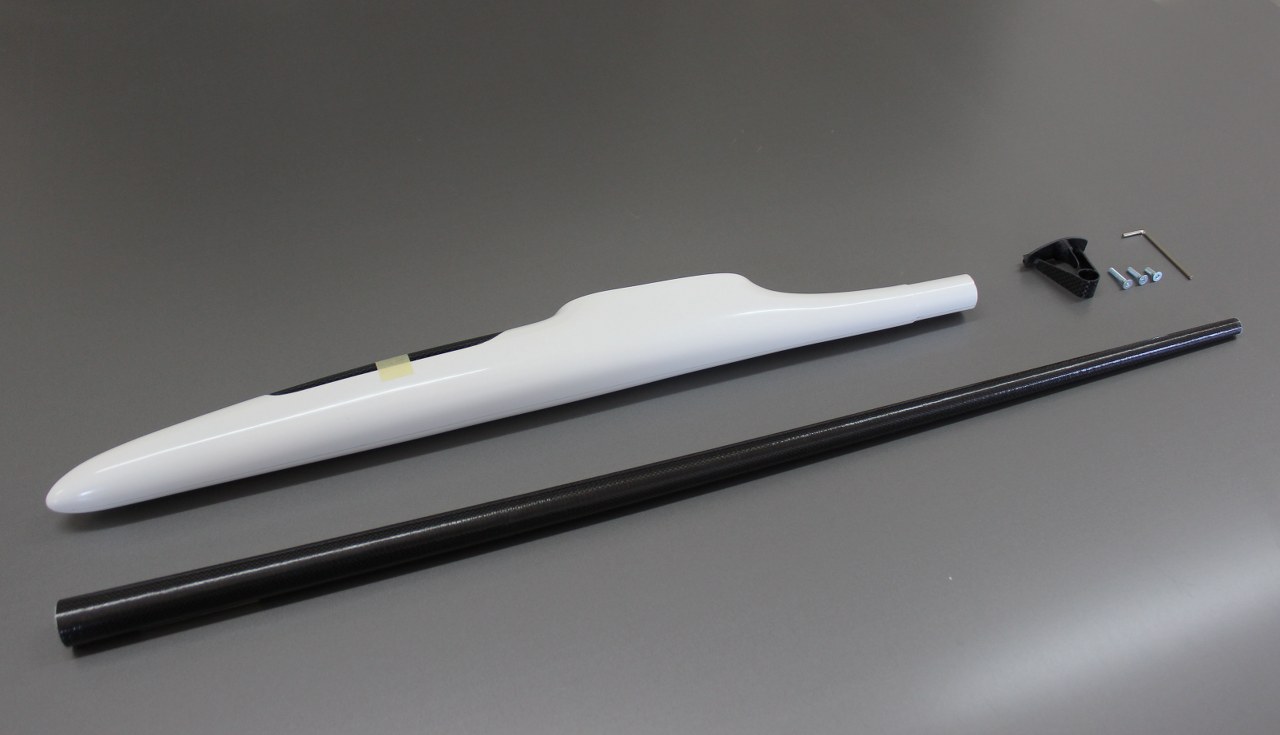

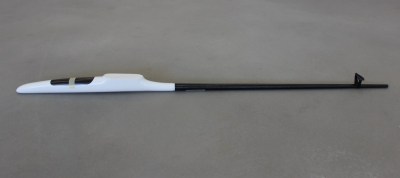

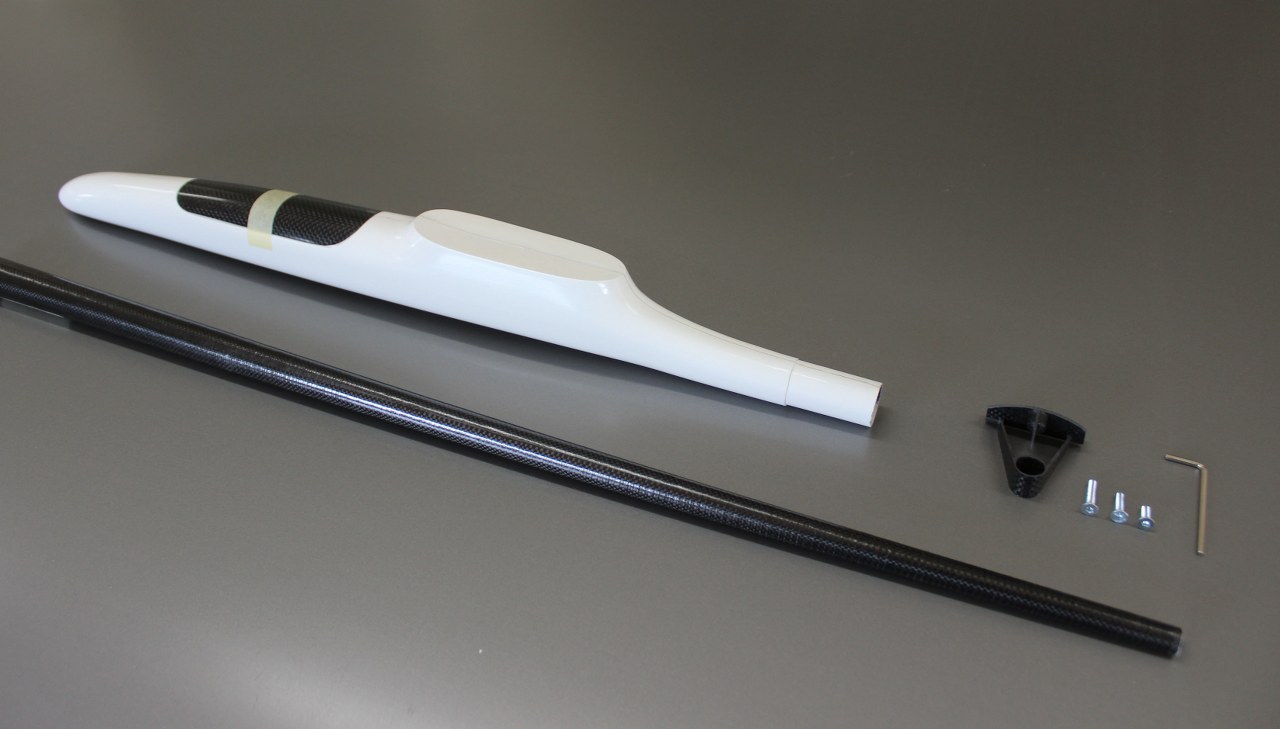

Set contains glass fabric pod, carbon tailboom and V-mount.

Set weights 130 grams / 4.58 oz.

Carbon tailboom is 700 mm (27.55") long and weights 30g (1.05 oz).
Carbon tail boom is made from several carbon types. Materials are strategically positioned so the boom is of its maximum strength and minimum weight.

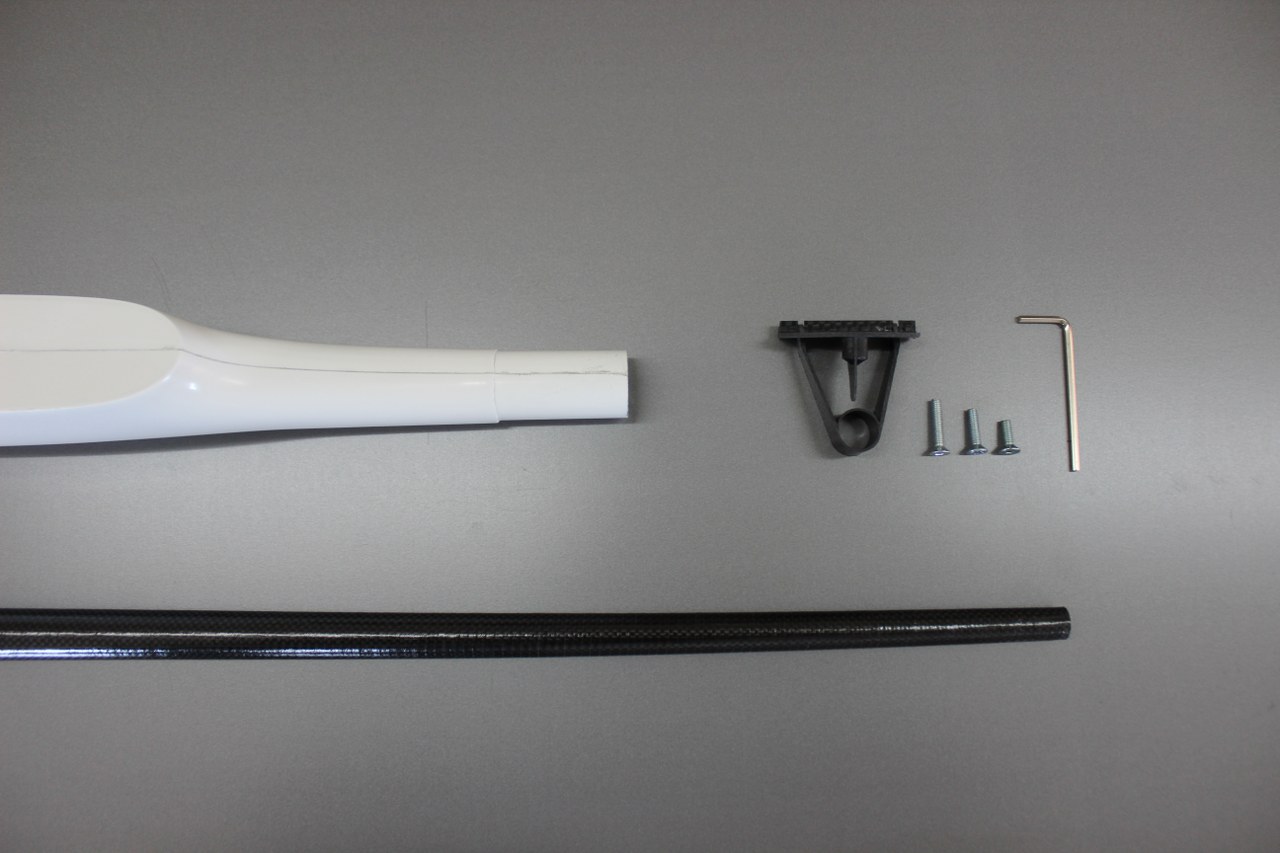

Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.

Pod is entirely made of fiber glass and carbon, it is very light and strong. 2.4 GHz friendly.
Pod is reinforced with carbon on strategic spots which gives it more strength.
The nose and front part of the pod are reinforced so it can be landed roughly and used for pike-landing on competitions.
Pylon is for AG series airfoil. Pylon is thin and carefully engineered to reduce interference drag. Pylon is designed so it doesn't intersect with flaps when they are lowered to their maximum.
Pylon is 127 mm (5") long, so wings up to 195 mm (7.67") depth and even more can be mounted. Dihedral is 2° on each side.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
This Pod is suitable for wingspan up to 3 meters (118.11").
The final color is white - gelcoat, resistant to UV rays and tearing off.

NOTE: Pod is designed so that you can make an electro version. Since the nose is quite reinforced, it is only necessary to cut the nose on specified length, put firewall and you get a diameter of 32 mm for a spinner.

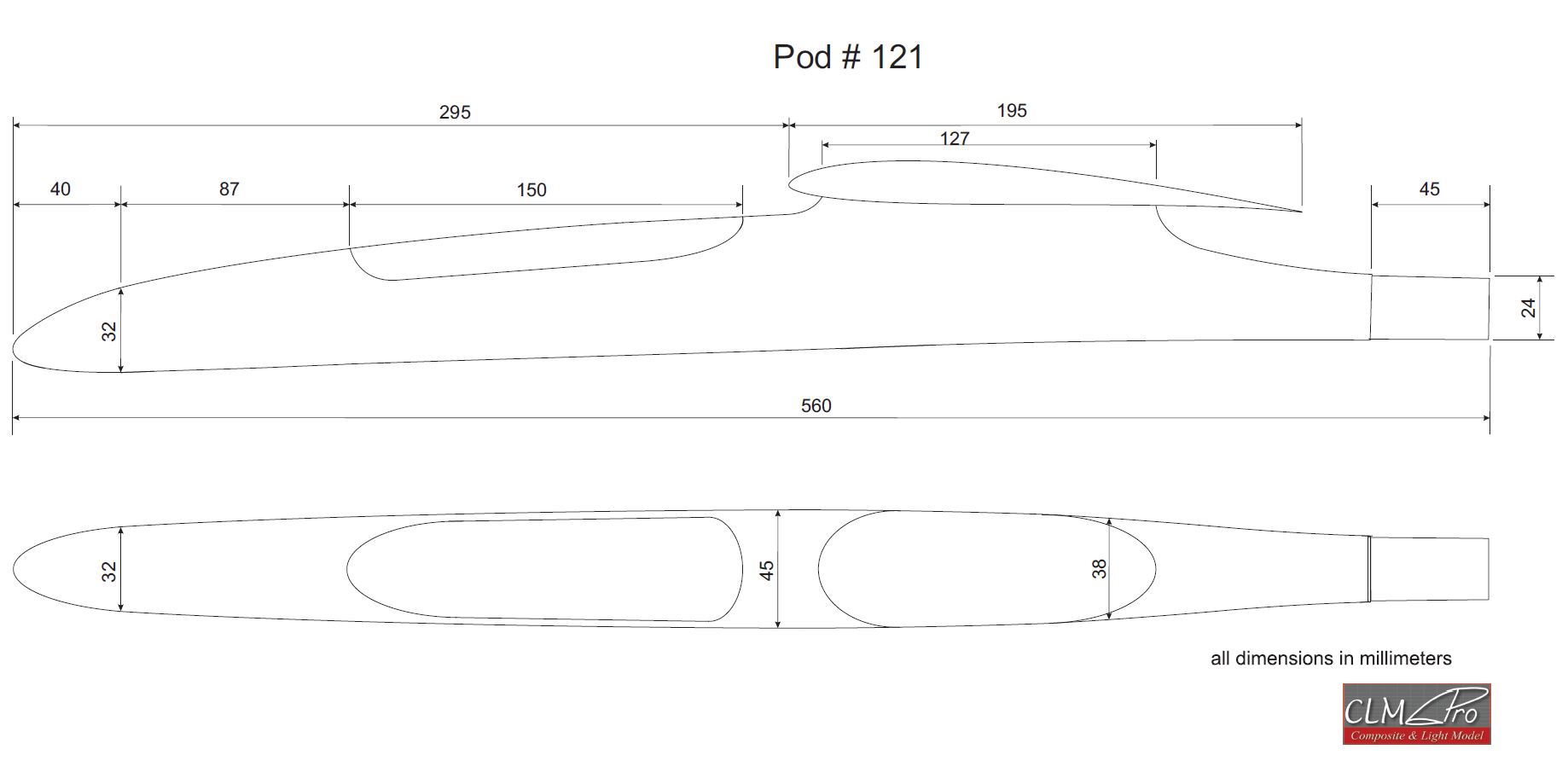

Pod Specifications

Length

573 mm / 22.55"

Wing depth

195 mm / 7.68"

Profile

AG Series

Boom diameter

24 mm ID / 0.945"

Dihedral angle

2° on each side

Weight

85 g / 2.99 oz

Spinner

32 mm / 1.26"

Carbon Tailboom

Length

700 mm / 27.55"

Wide End

24 mm ID / 0.945"

Narrow End

12 mm OD / 0.47"

Weight

30 g / 1.05 oz

Wall thickness

0.5 mm / 0.019"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"
