Fuselage Sets

Electric Fuselage set #122

CLM-Pro-electric-fuselage-set-122

Electric Fuselage set #122

RatingNot Rated Yet
Base price $140.00
Base price with tax
Sales price $133.00
Sales price without tax $133.00
Discount $7.00
ManufacturerCLM Pro
Description

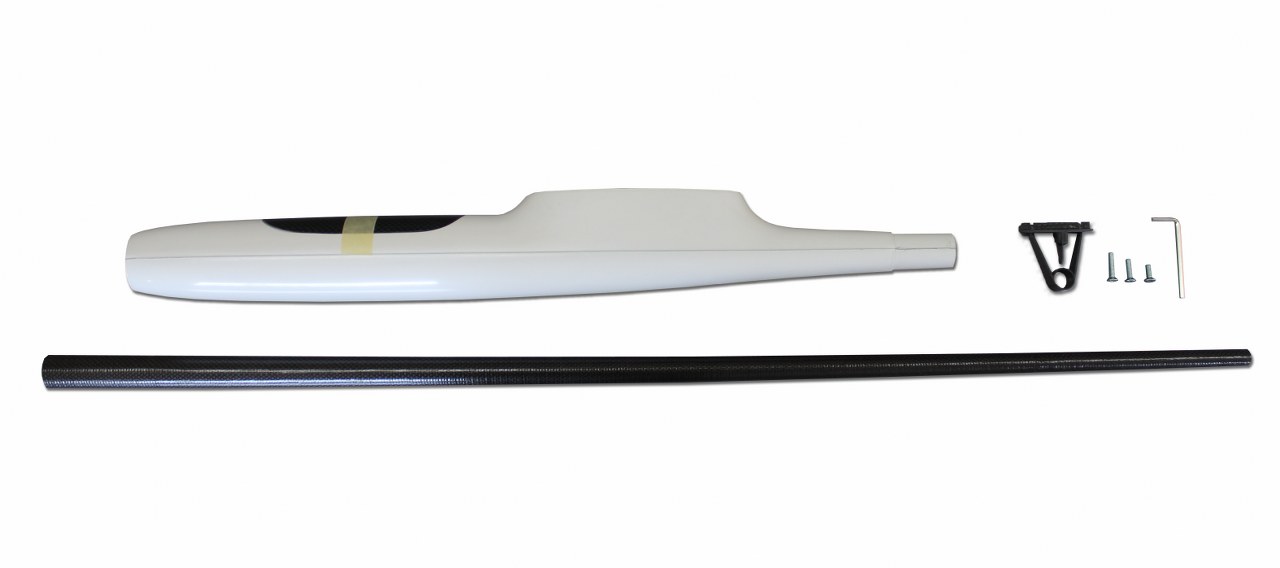

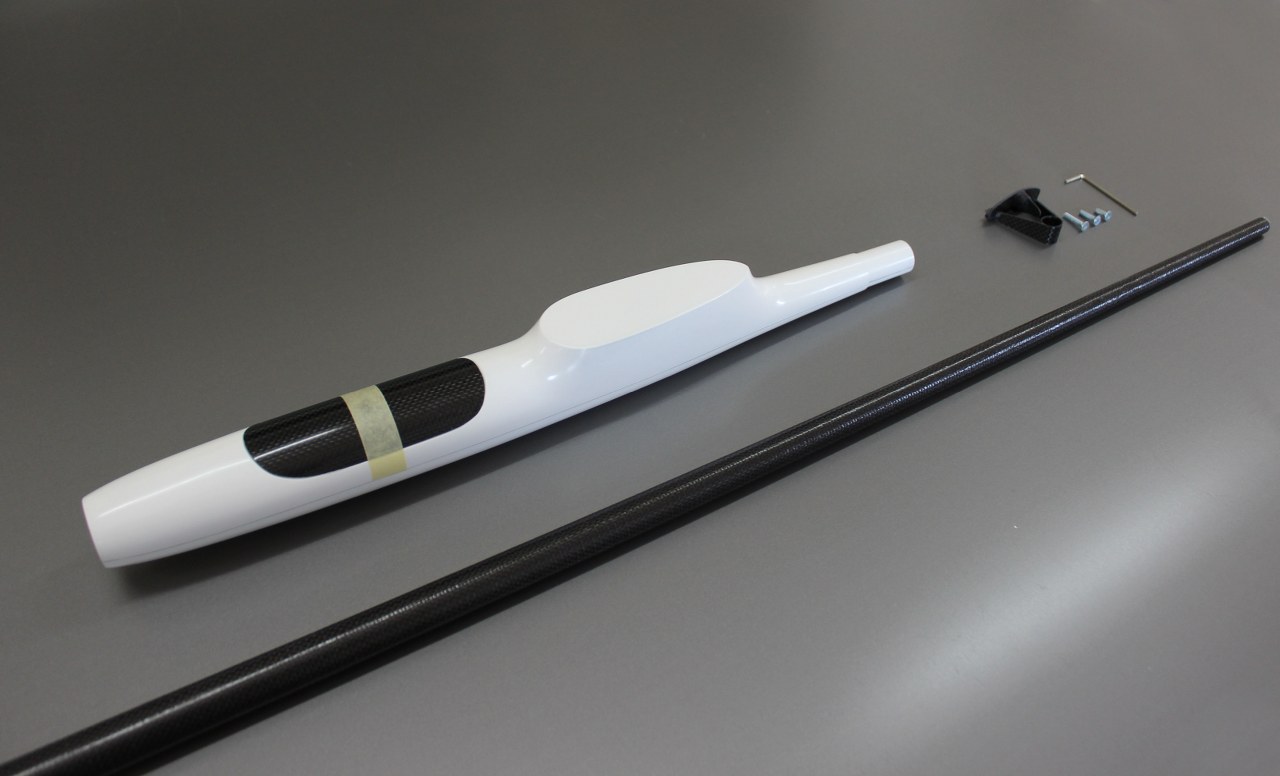

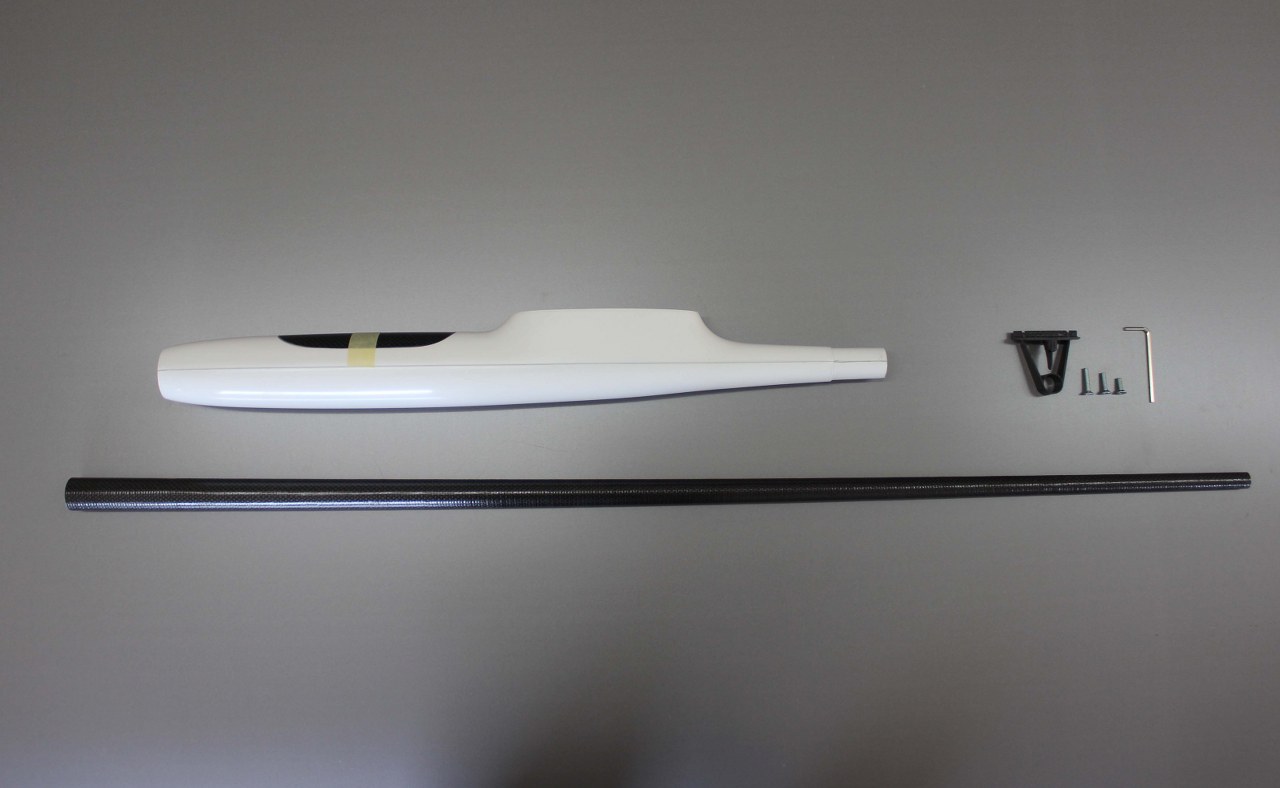

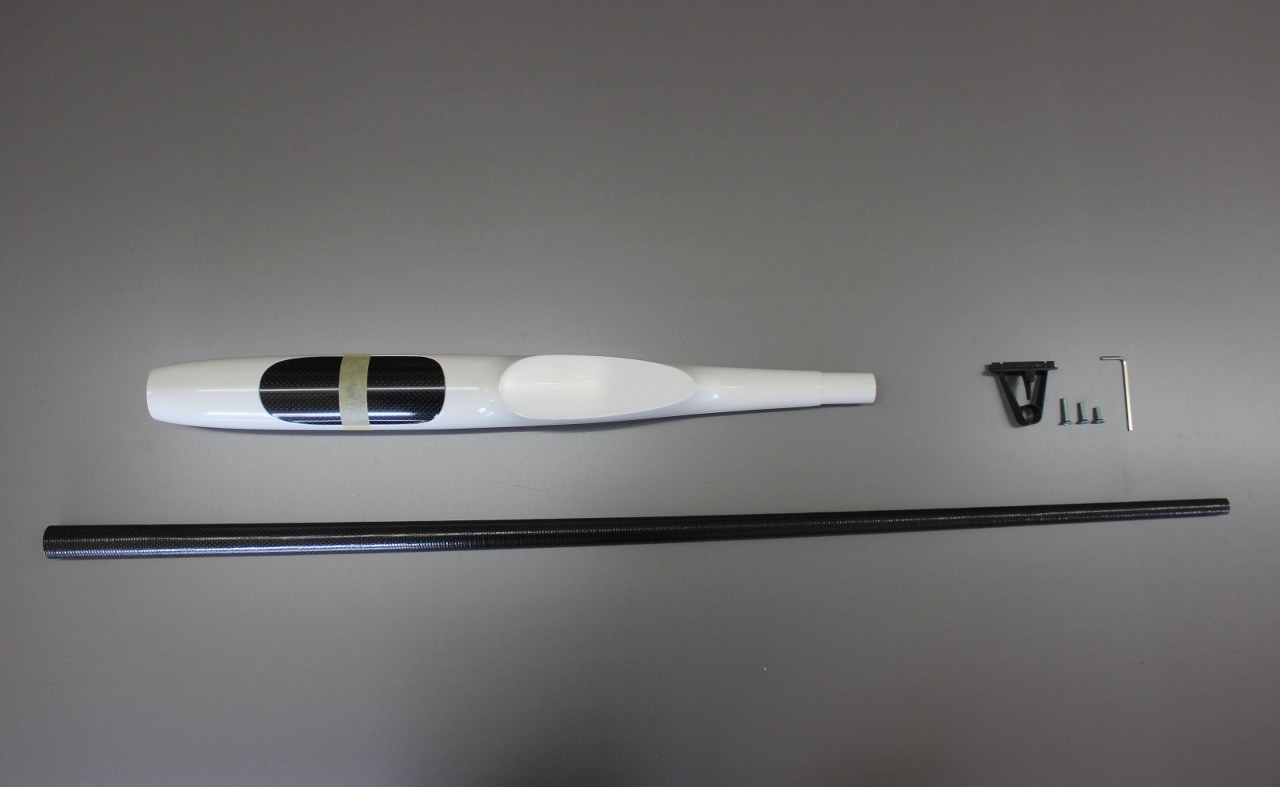

CLM Pro Electric fuselage set #122 suitable for wingspan up to 3 meters / 119". Set contains glass fabric pod, carbon tailboom and V-mount.

CLM Pro Electric fuselage set #122 suitable for wingspan up to 3 meters / 119".

Set contains glass fabric pod, carbon tailboom and V-mount.

Set weights 143 grams (5.04 oz).

Carbon boom is 900 mm (35.43") long and weights 39g (1.37 oz).
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.

Pod is completely made of composites, mainly fiber glass, and has carbon fiber reinforcements on strategic spots, so it is 2.4 GHz friendly.
It is strong enough to withstand even the hardcore landing and forces.
Carbon removable canopy is included.
Edges around the canopy are reinforced with carbon.
Part where tow hook, pylon are also reinforced, just like top of the nose, so it can be landed roughly.
Already instelled firewall.
Made for spinner of 36 mm (1.40") diameter.
This pod is suitable for wingspan up to 3 meter (118"). Ideal for home builder, it can be used as replacement pod for other projects.
The final color is white - gelcoat, resistant to UV rays.

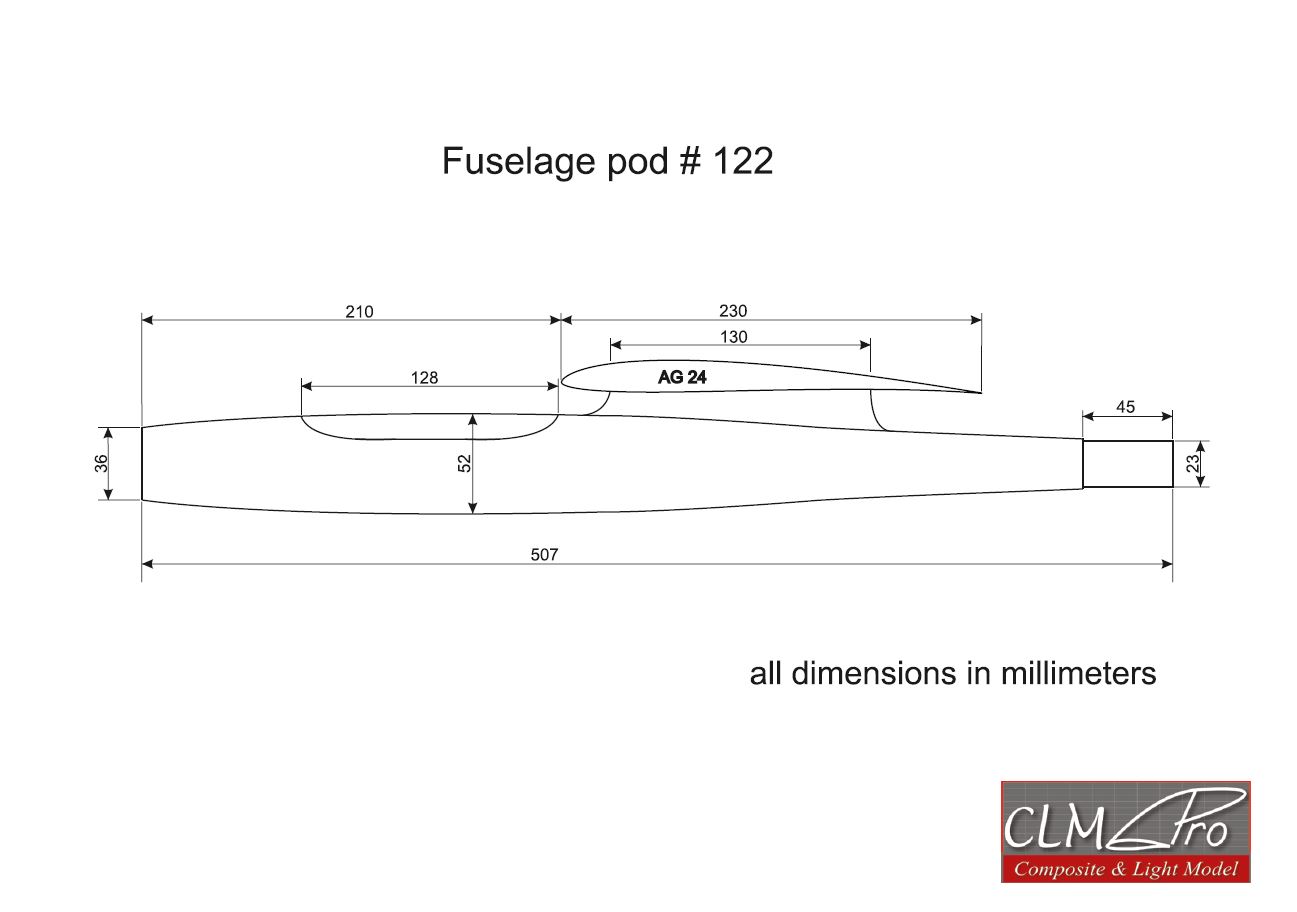

Pod Specifications

Length

507 mm / 19.96"

Wing depth

230 mm / 9.05"

Profile

AG Series

Boom diameter

23 mm ID / 0.90"

Dihedral angle

Weight

99 g / 3.49 oz

Spinner

36 mm / 1.41"

Carbon Tailboom

Length

900 mm / 35.43"

Wide End

23 mm ID / 0.90"

Narrow End

11.5 mm OD / 0.452"

Weight

39g / 1.37 oz

Wall thickness

0.6 mm / 0.023"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"
