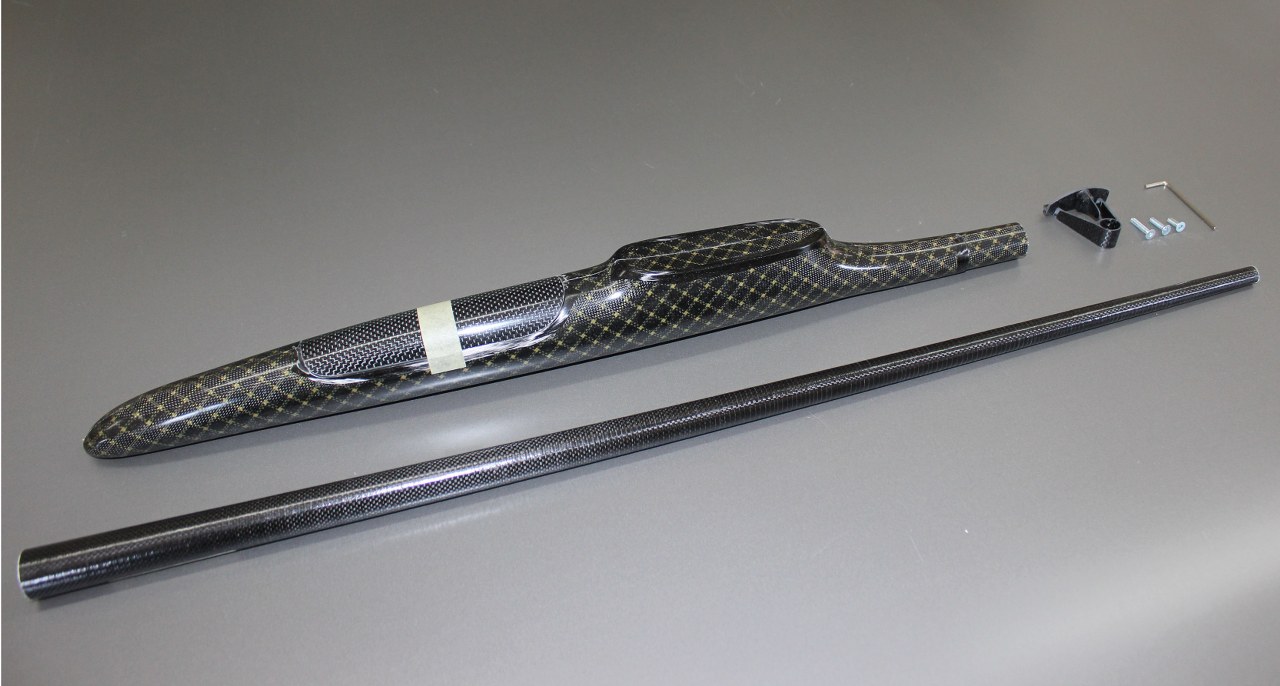

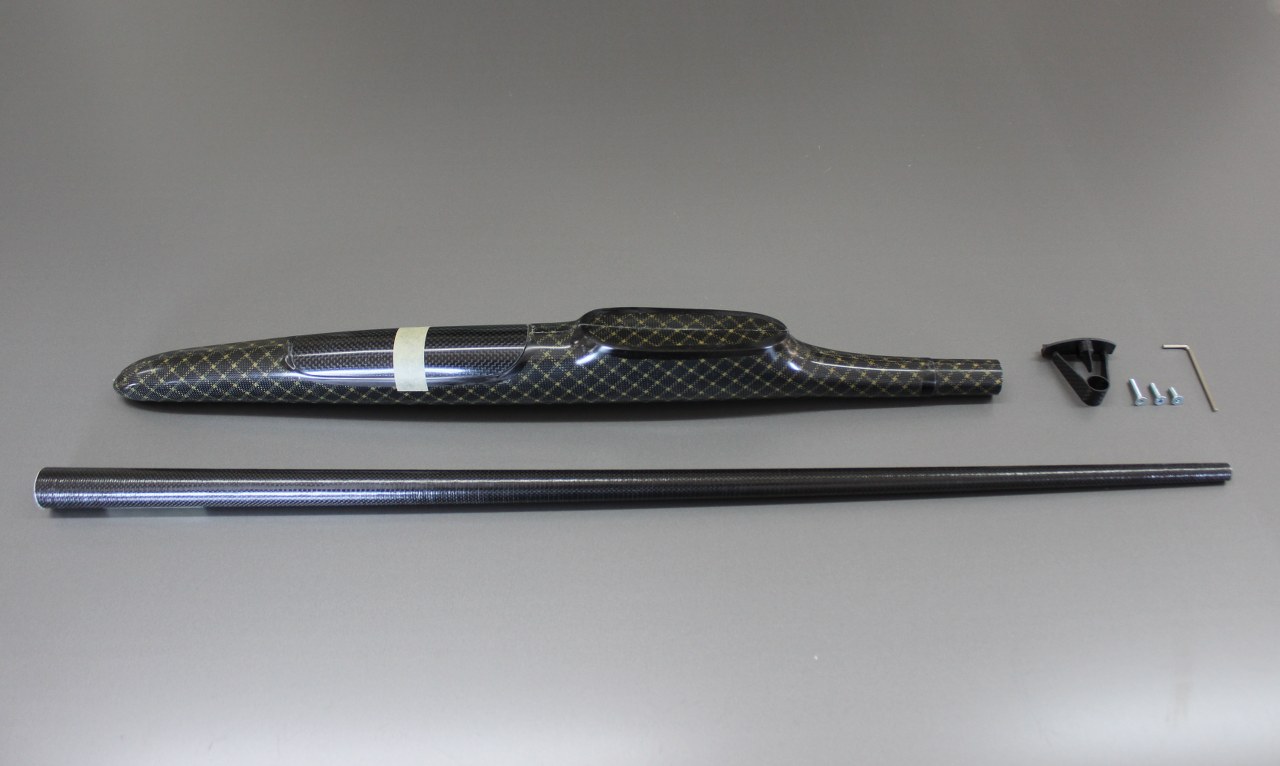

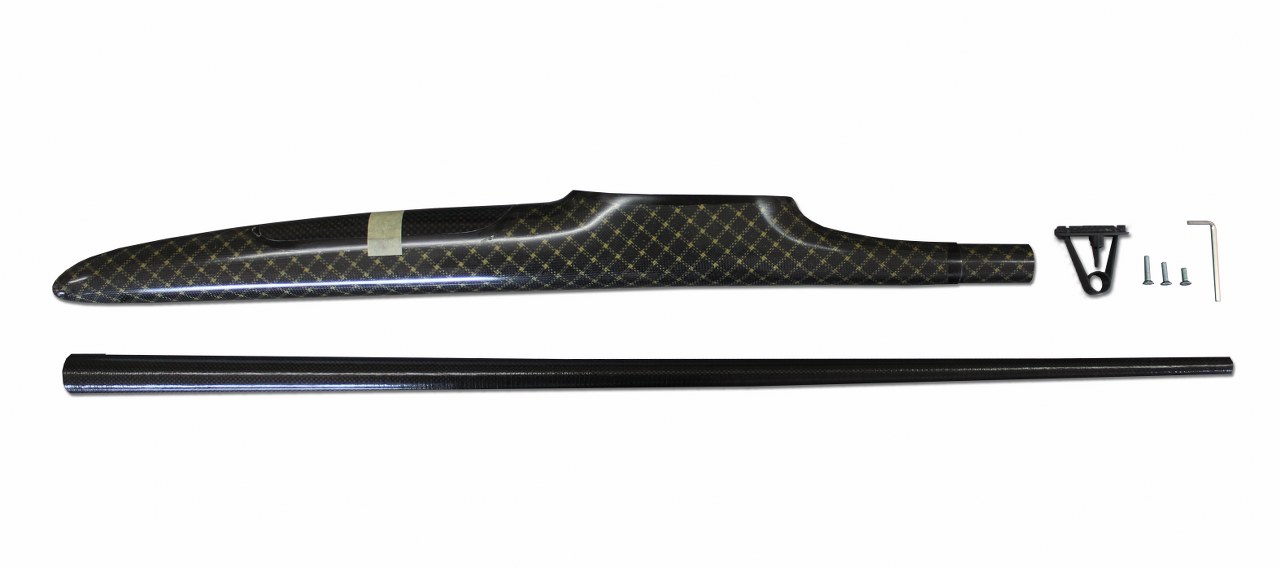

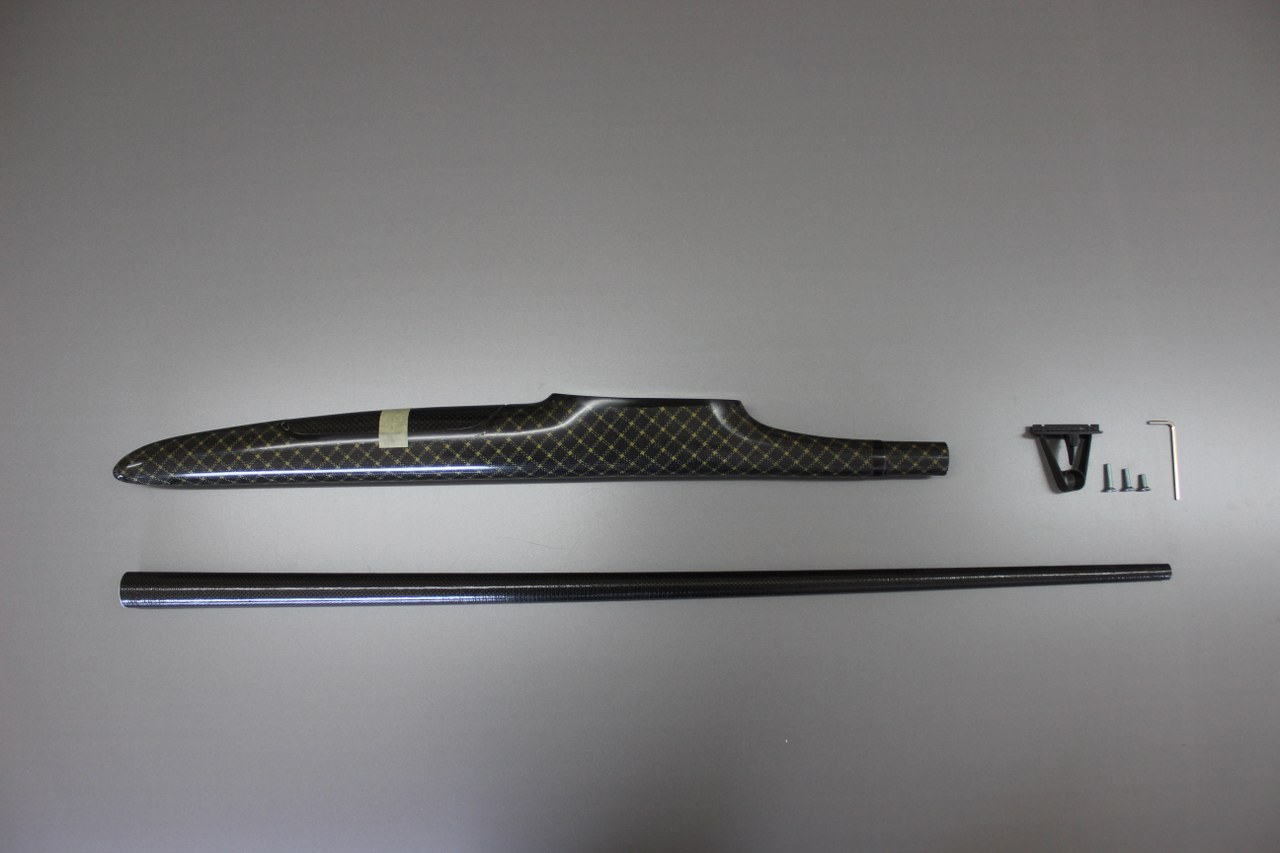

CLM Pro Complete hybrid carbon aramid fuselage set #121 suitable for wingspan up to 3 meters / 119".

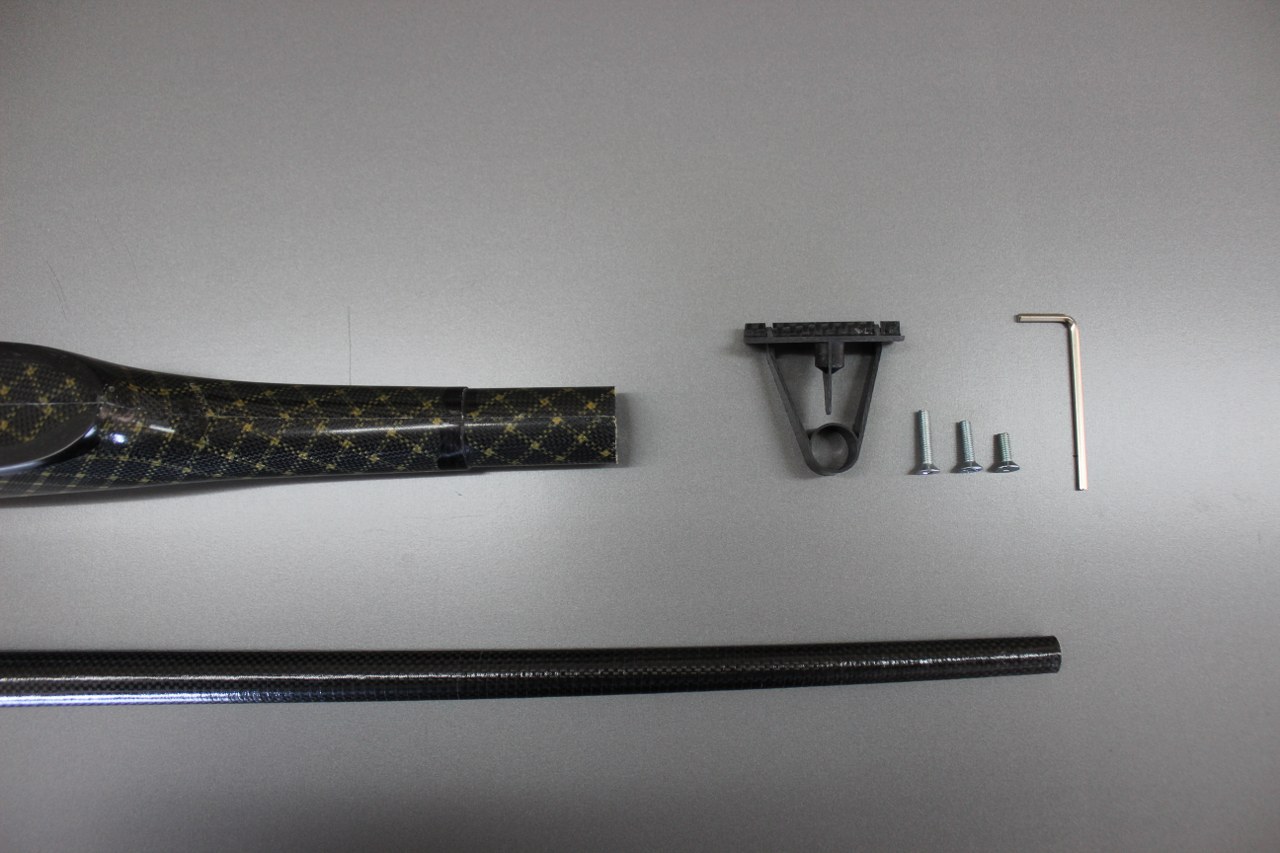

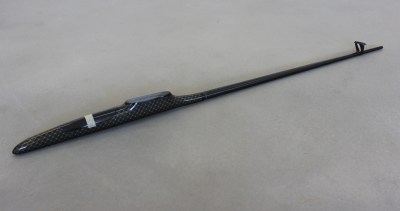

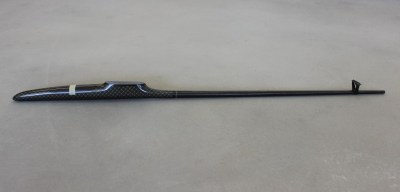

Set contains carbon-aramid pod, carbon tailboom and V-mount.
Set weights only 98 grams / 3.45 oz.
Carbon boom is 700 mm (27.55") long and weights 30g (1.05 oz).
Carbon tail boom is made from several carbon types. Materials are strategically positioned so the boom is of its maximum strength and minimum weight.
Carbon V-Mount has ID of 13.7mm (0.54") and weights 5.5grams (0.194 oz).
You get few different bolts with it.
Pod is completely made of fine 1K hybrid material - carbon/kevlar, it is very light and strong. Weighs only 61 grams (2.15 oz).
Pod is reinforced with carbon on strategic spots which gives it more strength.
The nose and front part of the pod are reinforced so it can be landed roughly and used for pike-landing on competitions.
Pylon is for AG series airfoil. Pylon is designed so it doesn't intersect with flaps when they are lowered to their maximum.
Pylon is 127 mm (5") long, so wings up to 195 mm (7.67") depth and even more can be mounted. Dihedral is 2° on each side.
Canopy is designed so there is enough space to easily manipulate with all components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field.
Supplied with a removable carbon canopy.
This Pod is suitable for wingspan up to 3 meters / 119".
Boom suitable for this Pod: #218 and #209.
NOTE: Pod is designed so that you can make an electric version. Since the nose is quite reinforced, it is only necessary to cut the nose on specified length, put firewall and you get a diameter of 32 mm for a spinner. (look at attached pdf)

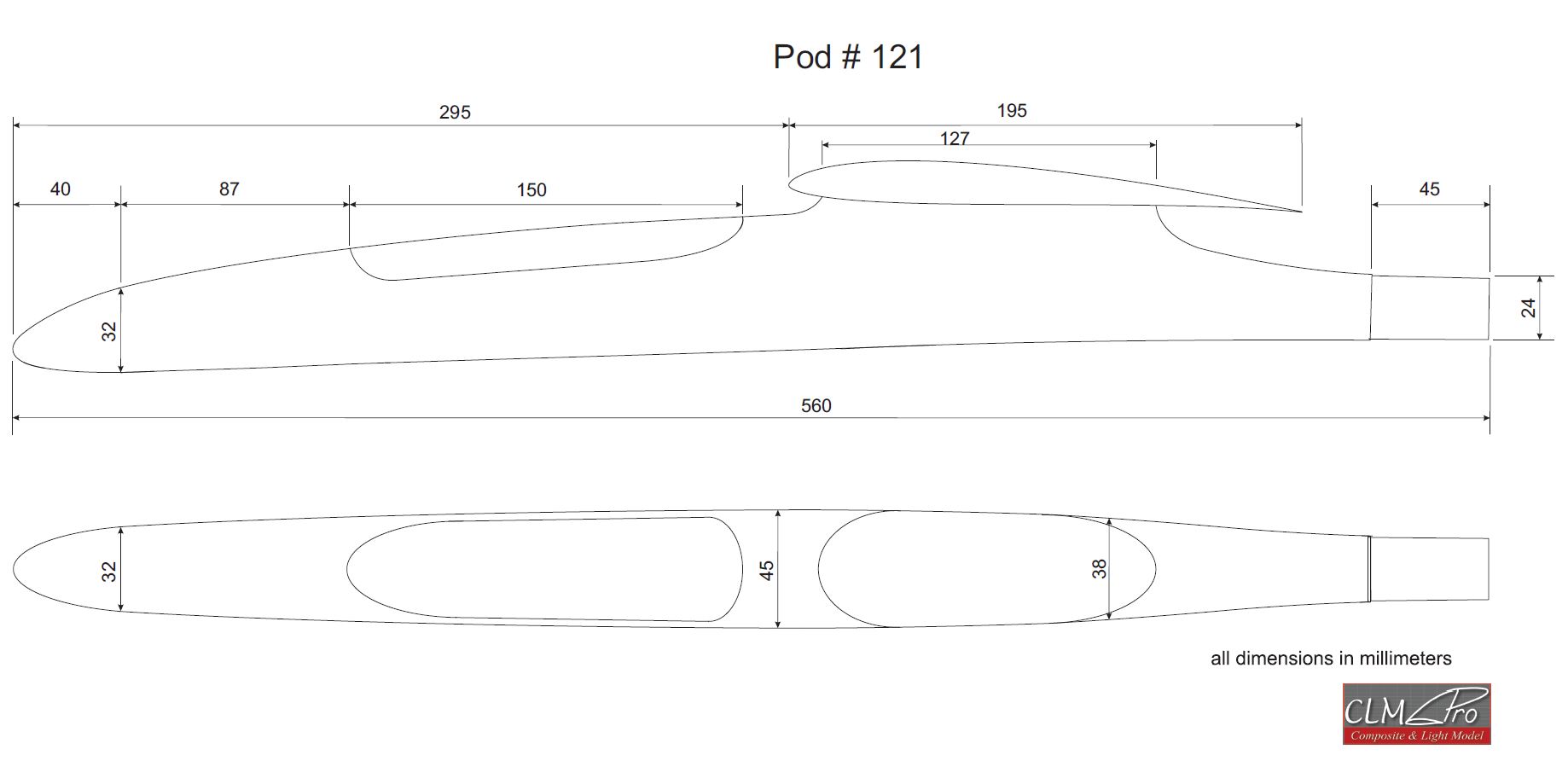

Carbon Pod Specifications |
|
Length |
573 mm / 22.55" |
Wing depth |
195 mm / 7.68" |
Profile |
AG Series |
Boom diameter |
24 mm ID / 0.945" |
Dihedral angle |
2° on each side |
Weight |
62 g / 2.18 oz |
Spinner |
32 mm / 1.26" |
Carbon Tailboom |
|
Length |
700 mm / 27.55" |
Wide End |
24 mm ID / 0.945" |
Narrow End |
12 mm OD / 0.47" |
Weight |
30 g / 1.05 oz |
Wall thickness |
0.5 mm / 0.019" |
V-Mount |
|
Inside diameter |
13.7 mm / 0.539" |
Weight |
5.5 g / 0.19 oz |
Height of the tailplane mounting plate |
50 mm / 1.96" |
