CLM Pro Electric fuselage set #122 with tail set suitable for wingspan up to 3 meters / 119". Set contains glass fabric pod, carbon tailboom, V-mount and completed tail. 2.4 GHz friendly.

CLM Pro Electric fuselage set #122 with tail set suitable for wingspan up to 3 meters / 119". Set contains glass fabric pod, carbon tailboom, V-mount and completed tail. 2.4 GHz friendly.

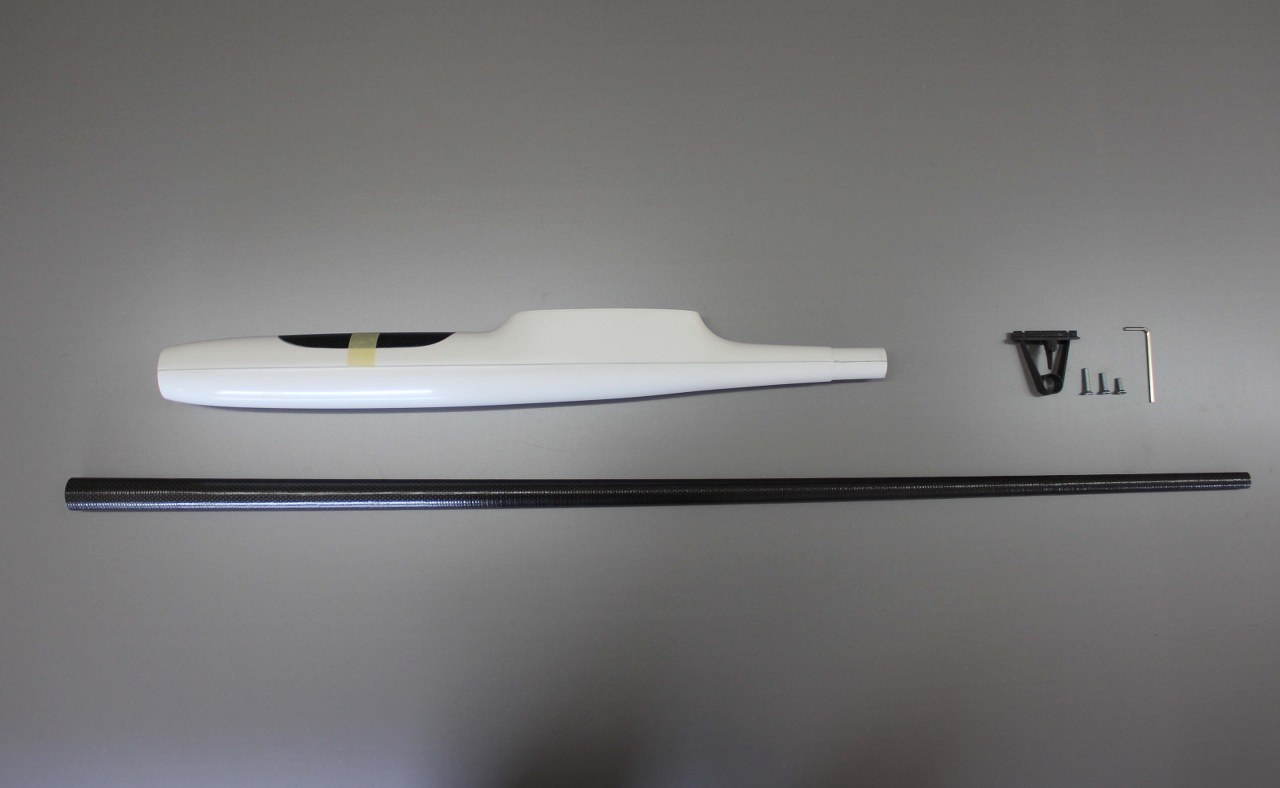

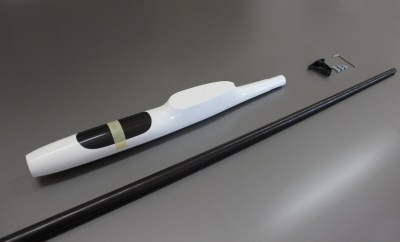

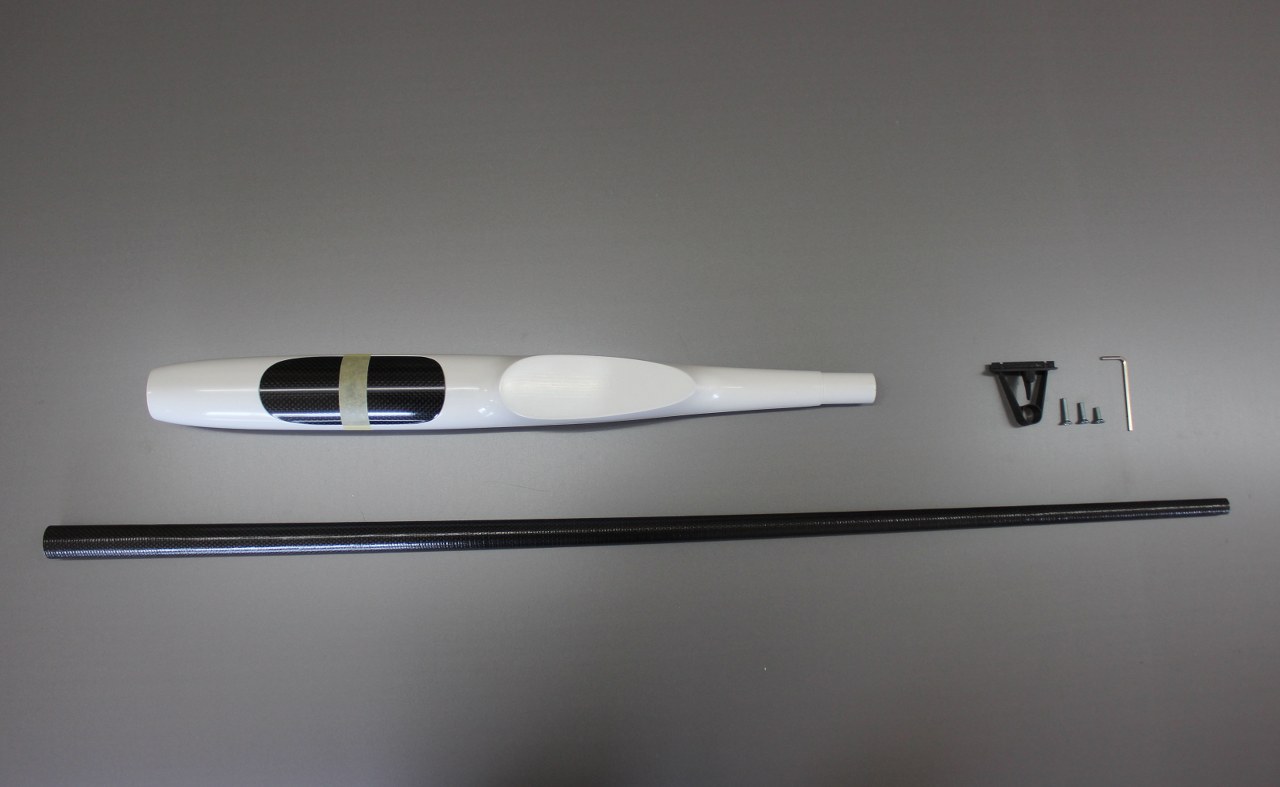

Set contains electro pod #122, tailboom, V-Mount and completed tail.

Set weights 177 grams / 6.24 oz.

Carbon tailboom is 900 mm / 35.43" long and weights 39g / 1.37 oz.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

The pod is completely made of composites (multiple types of materials), mainly glass fabric, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is, of course, 2.4 GHz friendly. It is strong enough to withstand even hardcore landings and other forces. The pylon is also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.
.
Made for spinner of 36 mm / 1.40" diameter. Already instelled firewall.

The standard pod version is in white, i.e. coated with gel coat, which is UV stable and wear-resistant.

NOTE:
If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

Tail set:

The tail is projected and constructed so it looks very elegant and has excellent flight characteristics.

The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.

Vertical stabilizer is made the same way and it already has a built in kevlar hinge.

Complete tail is covered with Oracover - Light Oralight foil.

The tail is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

Tail specifications:

Horizontal stabilizer:
Width: 500 mm
Depth: 104 mm
Tip depth: 95 mm
Weight: 17g
Area: 4.97dm2

Vertical stabilizer:
Height: 260 mm
Width: 145 / 80 mm
Weight: 17g
Area: 2.92dm2
