Fuselage sets with tails

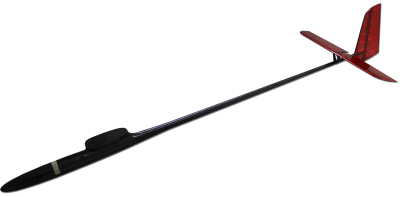

Fuselage set #125 carbon with completed tail

CLM-Pro-fuselage-set-125-carbon-0

Fuselage set #125 carbon with completed tail

RatingNot Rated Yet
Base price $295.00
Base price with tax
Sales price $265.50
Discount $29.50
ManufacturerCLM Pro
Description

CLM Pro Complete carbon fuselage set with completed tail suitable for wingspan up to 3 meters / 119". Set contains carbon pod, carbon tailboom, V-mount and completed tail.

CLM Pro Complete carbon fuselage set with completed tail suitable for wingspan up to 3 meters / 119".

Set contains carbon pod, carbon tailboom, V-mount and completed tail.

Set weights 160 grams / 5.64 oz.

Carbon boom is 900 mm / 35.43" long and weights 39g / 1.37 oz.
Carbon tail boom is made from several carbon types. Materials are strategicaly positioned so the boom is of its maximum strength and minimum weight.

Carbon V-Mount has ID of 13.7mm / 0.54" and weights 5.5grams / 0.194 oz.
You get few different bolts with it.

Pod:
The pod is completely made of composites (multiple types of materials). It has been made of fine 1K Aero carbon material, and has carbon fiber reinforcements on strategic spots, giving it additional strength to endure heavier straining. It is strong enough to withstand even hardcore landings and other forces. The part where the tow hook is, the pylon are also reinforced, just like the top of the nose, so it can be landed roughly.

The canopy is designed in a way that there is enough space to easily manipulate all the components in the pod, allowing the battery to be inserted and connected easily, improving usability on the field. The edges around the canopy are also reinforced with carbon.
It is supplied with a removable carbon canopy.

Pylon is for AG series airfoil. Pylon is thin and carefully engineered to reduce interference drag.
Dimensions of Pylon are 136 x 57mm (5.35" x 2.24"). It is designed so the wing is easily attachable from below. Dihedral is 2.5° on each side.
Pylon is 136 mm / 5.35" long, so wings up to 220 mm / 8.66" depth but even more can be mounted.

This Pod is suitable for wingspan up to 3 meter / 119". Ideal for home builder, it can be used as replacement pod for Bubble Dancer.

NOTE: The Pod is designed so that you can make an electro version. Since the nose is quite reinforced, it is only neccessary to cut the nose on specified length, put firewall and you get a diameter of 30 to 36 mm for a spinner.

NOTE2: If you require a pod version which is lighter or much stronger than the standard one, simply contact us and we can make a custom one for you. This also goes for the selection of materials.

Tail:
The tail is projected and constructed so it looks very elegant and has excellent flight characteristics.
The tail is made as a constructin of laser cut ribs covered with carbon cap strips and additional carbon reinforcements which gives it great strength. It is also made with carbon main spar and trailing edge.
Vertical stabilizer is made the same way and it already has a built in kevlar hinge.
Complete tail is covered with Oracover - Light Oralight foil.
The tail is also prepared to be mounted on our V-Mount. It has a slot and the V-Mount simply slides into it and you only need to fasten them together with a screw.

Tail specifications:

Horizontal stabilizer:
Width: 500 mm
Depth: 104 mm
Tip depth: 95 mm
Weight: 17g
Area: 4.97dm2

Vertical stabilizer:
Height: 260 mm
Width: 145 / 80 mm
Weight: 17g
Area: 2.92dm2

Carbon Pod Specifications

Length

575 mm / 22.63"

Wing depth

220 mm / 8.66"

Profile

AG Series

Boom diameter

23 mm ID / 0.90"

Dihedral angle

2.5°

Weight

82g / 2.89 oz

Carbon Tailboom

Length

900 mm / 35.43"

Wide End

23 mm ID / 0.90"

Narrow End

11.5 mm OD / 0.452"

Weight

39 g / 1.37 oz

Wall thickness

0.6 mm / 0.023"

V-Mount

Inside diameter

13.7 mm / 0.539"

Weight

5.5 g / 0.19 oz

Height of the tailplane mounting plate

50 mm / 1.96"

Tail set

Elevator / horizontal stabilizer

17g / 0.59 oz

Rudder / vertical stabilizer

17g / 0.59 oz
